Rubber Joint Expansion Joint NBR Rubber Carbon steel or stainless steel flange

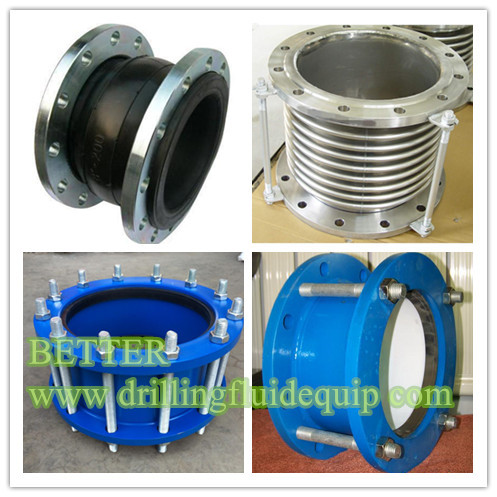

We supply series of stainless steel expansion joint, rubber expansion joint, rubber couplings and dresser sleeve coupling, which is needed to be used in the drilling fluid & solid control system.

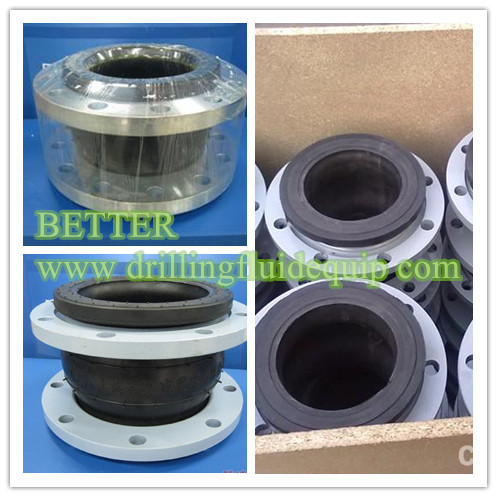

Flexible Rubber Joint (Single Arch) Rubber Expansion Joint

A kind of rubber coupling with good elasticity, high air tightness, good shock absorption and noise reduction effect to be used for pipeline with high pressure and large displacement, easy installation;

Adopt new technology of gas blowing mold, the rubber sphere made of inner & outer rubber layer, Nylon fabric layer and steel wire reinforcing ring; No gaskets required, integral rubber flanged design, Flange adopted according to DIN PN16/10, ANSI 150/250/300 lbs., BS, JIS 10K.

Sizes: 2”- 12”

•Face to Face: 6” on sizes 2”- 8”. 8” on sizes 10”- 12”

•End Connections: ANSI 150 Flange x Flange

•Materials: Buna (Nitrile), EDPM, or ®

•Other sizes available upon request

•Application: Allows movement to compensate for expansion or contraction that result from temperature changes. Reduces vibration and pulsation.

Technical data:

Pressure scope: 0.6-2.5Mpa

Size scope: DN32mm-DN4000mm

Application medium: Air, compressed air, water, sea water, oil, acid, alkali, etc.

Working temperature: -20-+115 c degree

Material: body & inner layer & outer layer-NR, CR, IIR, NBR, FKM, EPDM;

               Body support- Nylon cord fabric

               Reinforcing ring- Multi-strand coppering steel wire

               Flange-Carbon steel, stainless steel, Plastic

Please don't hesitate to contact our sales if you are interested in any of our products.
