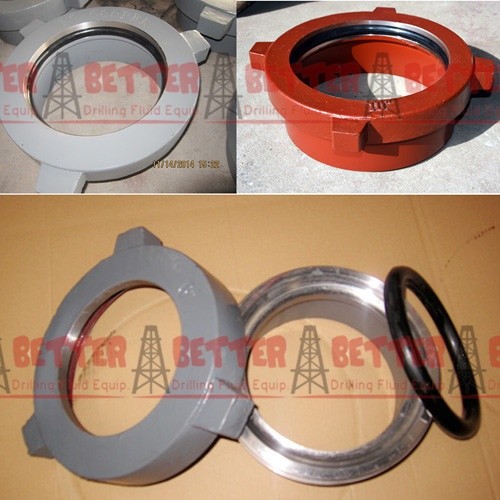

Mud Tank Union Hammer Seal Union Kemper style

BETTER manufactures and supplies unions for mud tanks, Hammerseal Unions, mud tank connecting lines and pump suction flanges. These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the cross-section of the seal designed to provide greater sealing surface. The union is designed to take a maximum of 7° misalignment on the pipe. Sizes which are catered for are 6", 8", 10" and 12", 6", 8" and 10" sizes can be socket welded to pipe or butt welded to tubing. 12" size requires butt weld. BETTER Mud Tank Union is an updated design based on Air Grip Unions. These tank unions can accept pipe misalignment to finish an excellent connecting and sealing, and installation and uninstall rapidly, which has been widely used in mud tanks, mud tank connecting lines, and pump suction flanges.

Both of BETTER Air Union and Tank Union styles are interchangeable with other major brands, Bulldog, C&C Industries, Kemper.

Features

Elongated cross-section of seal ring ensures greater sealing surface when in contact with the pipe makes up with hammer

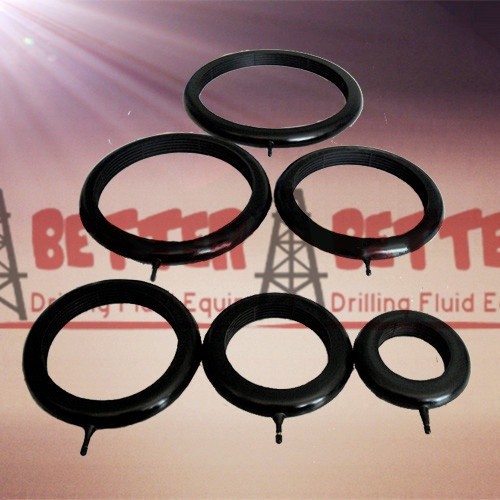

Molded nitrile seal provides a compression seal

Tank union accepts up to 7 degree pipe misalignment

Available in 6, 8, 10, and 12 inch sizes

6”, 8”, 10” unions may be socket welded or butt welded to piping.12” unions require butt-weld only

Large diameter, medium-low voltage and frequently dismantling, rapid installation.

WCB, Buna O-ring, BW SCH 80 End Connections as general

Please don't hesitate to contact our sales if you are interested in any of our products.
