    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: CHIKSAN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: OFFER
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Presure Rating: Up To 20000psi
    Standard: API 6A

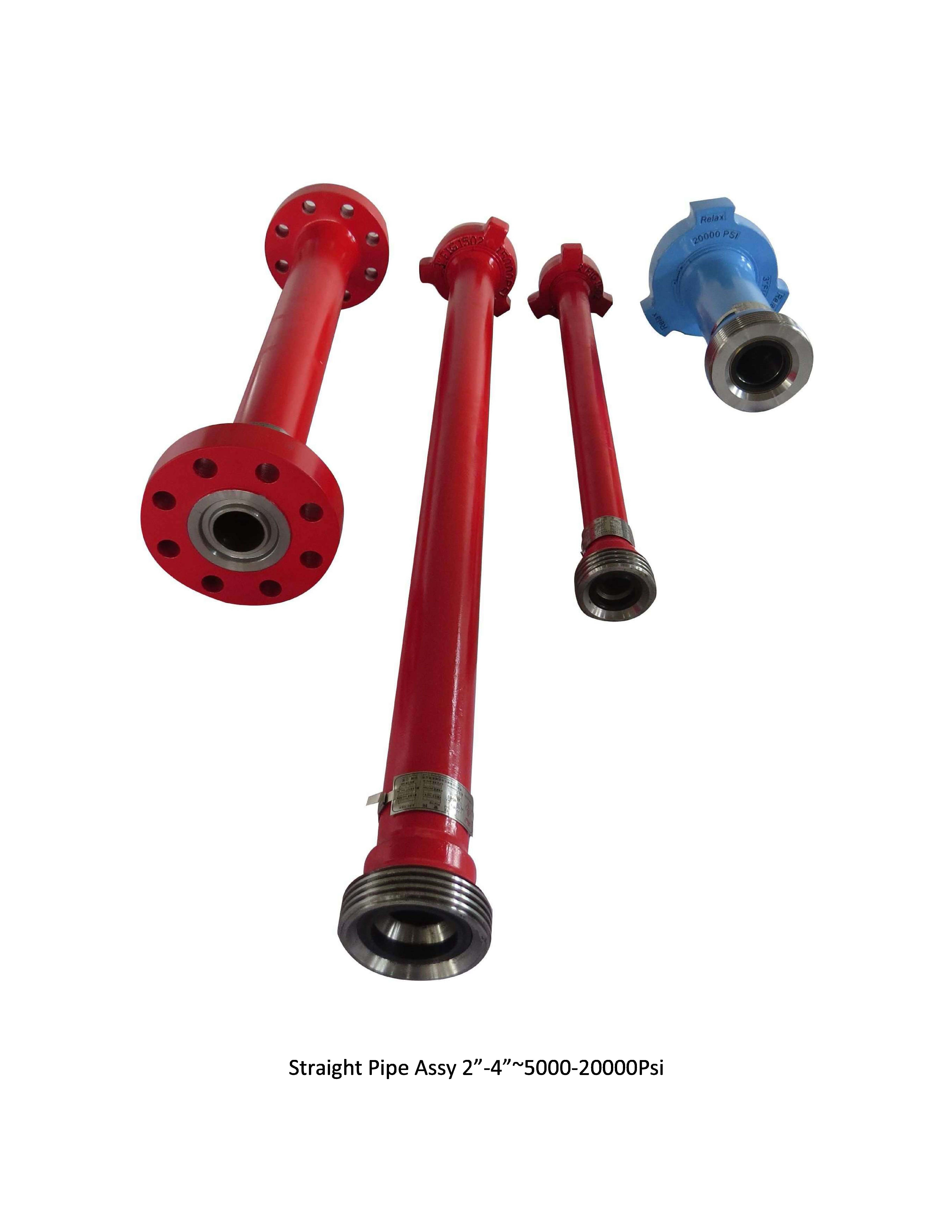

    Pup Joints

    BETTER provides eaPch pup joints with integral, welded, or NPST unions end connection from 10000 to 15000 psi for standard and sour service.

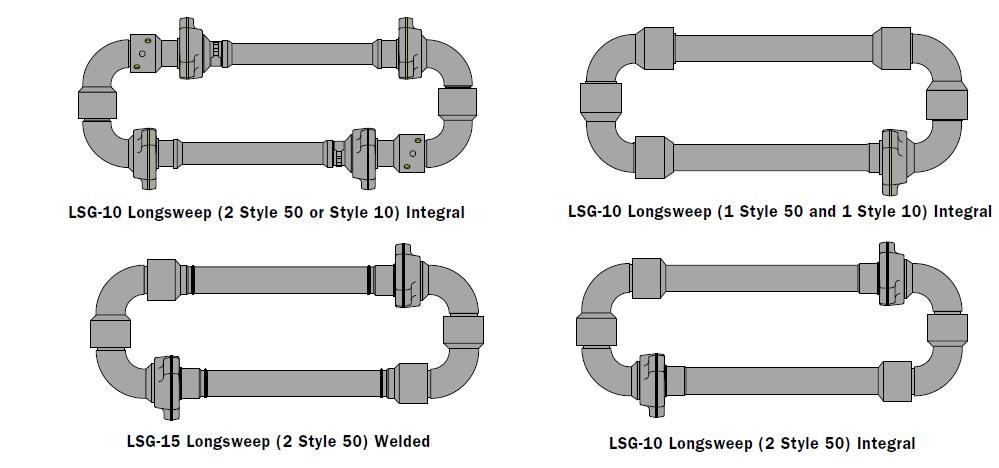

    Steel Hose Loops

    High pressure Chiksan cementing and circulating hoses (Longsweep Hose) incorporate swivel joints of forged steel with superior quality hardened ball races and high pressure type packing units. SIZE 2”x10”, 2”x12”, 3”x12”.

    -          LSG-15 Two wing union and two style 50 or style 10 longsweep swivel joints with welded ends.

    -          LSG-10 One wing union and one each style 50 and style 10 longsweep swivel joints with integral wing union ends

    -          TS-15 Four wing union and two style 50 or style 10 longsweep swivel joints with integral wing union ends.

    Model number indicates:

    1.       Type of sweep i.e. LS or SS

    2.       Style of swivel joint used i.e. style 10, style 50 or both used

    3.       Numbers of union used, i.e. 1, 2,4

    4.       Type of end connection i.e. Thread LP, NPS, integral, welded



    Chicksan Swivel joints

    Short Radius Swivel Joints for low pressure 1000psi with female line pipe threads in Blue color code.

    Style 10, Style 20, Style 30, Style 40, Style 50, Style 60, Style 70, Style 80

    Long Sweep Swivel joints equivalent to Weir SPM for high pressure and Extra high pressure from 6000 to 20000psi with Union and Female line pipe threads end connections in Silver, Olive Green, Black, Red, Light Blue. Chicksan swivel joint are available in 9 basic styles or configurations. These styles permit 360degree rotation and movement in one, two, or three planes, and can be assembled using two or more standard pieces.



    Style 10, M x F Fig.602, Fig.1002, Fig.1502 union ends, 31395550, 3139781, 3139905, 3144570, P505325, P527399, P516094

    Style 10 longsweep swivel joint, F x F Fig.602, Fig.1002, Fig.1502 union ends, P518960

    Style 10, M x M Fig.602, Fig.1002, Fig.1502 union ends, 3145886, 3139780, 3139477, 3144571, P505326, P516093

    Style 10 longsweep swivel joint, Thread ends, 3141454, P501542, 3139476, P524218,

    Style 20, M x F Fig.602, Fig.1002, Fig.1502 union ends P510860, P514100, P505417, P516092, P530256

    Style 20 longsweep swivel joint, F x F Fig.602, Fig.1002, Fig.1502 union ends

    Style 20 longsweep swivel joint, M x M Fig.602, Fig.1002, Fig.1502 union ends

    Style 20 longsweep swivel joint, Thread ends P506047, P523525

    Style 30 longsweep swivel joint, M x F Fig.602, Fig.1002, Fig.1502 union ends, P3259291, P3144126, P505416, P517487

    Style 30 longsweep swivel joint, F x F Fig.602, Fig.1002, Fig.1502 union ends

    Style 30 longsweep swivel joint, M x M Fig.602, Fig.1002, Fig.1502 union ends, P524579

    Style 30 longsweep swivel joint, Thread ends P6101537, P3139888

    Style 40 longsweep swivel joint, F x F Fig.602, Fig.1002, Fig.1502 union ends

    Style 40 longsweep swivel joint, Thread ends, 3139890

    Style 50 longsweep swivel joint, M x F Fig.602, Fig.1002, Fig.1502 union ends, 3139547, 3139778, 3139475, 3144569, P505327, P527340, P516091, P527331

    Style 50 longsweep swivel joint, F x F Fig.602, Fig.1002, Fig.1502 union ends, 3144000,

    Style 50 longsweep swivel joint, M x M Fig.602, Fig.1002, Fig.1502 union ends, 3267203,P512325

    Style 50 longsweep swivel joint, Thread ends, 3139546, 3139779, 3139904,

    Style 60 longsweep swivel joint, M x F Fig.602, Fig.1002, Fig.1502 union ends, 3144630, P505420

    Style 60 longsweep swivel joint, F x F Fig.602, Fig.1002, Fig.1502 union ends, P504952

    Style 60 longsweep swivel joint, M x M Fig.602, Fig.1002, Fig.1502 union ends, 6101559

    Style 60 longsweep swivel joint, Thread ends, 3144545,

    Style 70 longsweep swivel joint, M x F Fig.602, Fig.1002, Fig.1502 union ends, P505482

    Style 70 longsweep swivel joint, Thread ends, 3139891

    Style 80 longsweep swivel joint, M x F Fig.602, Fig.1002, Fig.1502 union ends, P516135, P502504, 3139901, P505409

    Style 80 longsweep swivel joint, M x M Fig.602, Fig.1002, Fig.1502 union ends, P527697

    Style 80 longsweep swivel joint, Thread ends, 3139892

    Style 100 longsweep swivel joint, M x F Fig.1502, Fig.2002 union ends, P505410, 3139904

    Style 100 longsweep swivel joint, M x M Fig.1502, Fig.2002 union ends, P505411, 3144572, 3139939

    FMC WECO Pup joint API 6A high alloy steel forged
