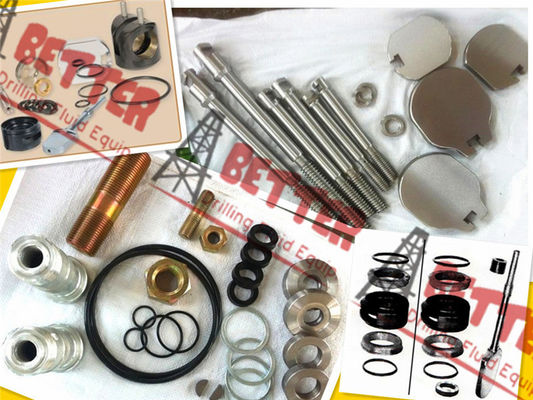

DEMCO MUD VALVE MAJOR REPAIR KIT Equiv. Cameron DEMCO DM MUD VALVE p/n J025091-10221, J025091-10321, J025091-10421
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPort Size | 2",3",4" | Standard Or Nonstandard | Standard |
---|---|---|---|
Structure | Gate | Pressure | High Pressure |
Power | Manual | Material | Alloy |
Temperature Of Media | Normal Temperature | Media | Base |
Our Gate Valve Parts, including Seat, Gate, Minor Repair Kit, and Major Repair Kit are fully interchangeable with Cameron Demco. And the quality and production technique is equivalent to the original; we are OEM for these products for foreign brand resellers.
HOT SELLING ITEMS:

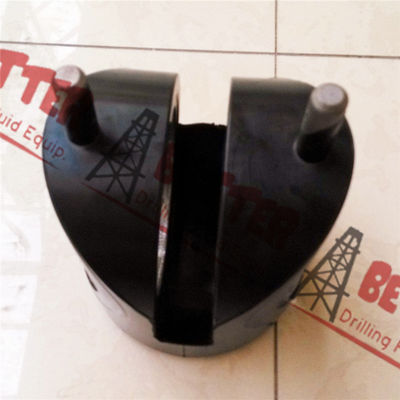

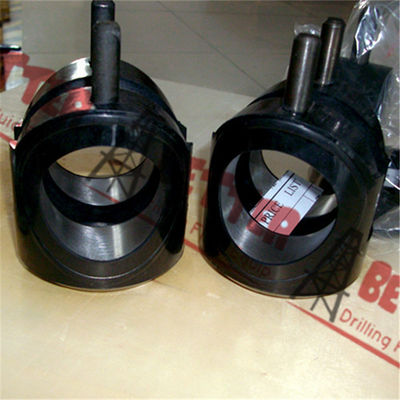

Seat 2", Ductile Iron or 316SS/Buna-N, For Demco Gate Valve, 5000 Psi, and Weight 0.74 0 Kg.; p/n: J001876-011; J001876-081, Hs Code: 84819000
Buna-N Seat 3", Ductile Iron or 316ss/Buna-N, F/ Demco Gate Valve, P/n: J001878-011; J001878-081
Buna-N Seat 4" & 5x4", Ductile Iron or 316SS/Buna-N, F/ Demco Gate Valve, P/n: J002207-021; J002207-081
Gate F/Gate Valve 2" 316SS or Steel Nickel Plated, 5000 PSI, P/N: J001887-008; J001887-002
Gate F/Gate Valve 3" 316SS or Steel Nickel Plated, 5000 PSI, P/N: J001886-008; J001886-002
Gate F/Gate Valve 4",4”x5”, 316SS or Steel Nickel Plated, 5000 PSI, P/N: J001926-002; J001926-008
Stem 2" 303SS, 316SS, F/Gate Valve 5000 PSI, P/N: J001931-002; J001931-008
Stem 3" 303SS, 316SS, F/Gate Valve 5000 PSI, P/N: J001932-002; J001932-008
Stem 4"/5x4" 303SS, 316SS, F/Gate Valve 5000 PSI, P/N: J007439-002; J007439-008
Minor Repair Kit, F/2" Gate Valve 5000 PSI, P/N: J025216-01221
Major Repair Kit F/2” Demco Gate Valve, 5000 Psi, Std, Consist Of (1 Each): J001876-011 Seat Assy Di/Buna, J001887-002 Npdi Gate, J005526-342 Bonnet Seal Buna, J001949-001 Stem Seal Assy Buna, J005526-210 Secondary Seal Buna, J001931-002 Stem 303Ss, J005526-224 Stem Screw Seal Buna, J001913 Stem Screw C1213; Hs Code: 84819000. Weight 3.170 Kg. P/N: J025216-11221
Minor Repair Kit, F/3" Gate Valve 5000 PSI, P/N: J025216-02221
Major Repair Kit F/3” Demco Gate Valve, 5000 Psi, Std, Consist Of (1 Each): J001878-011 Seat Assy Di/Buna N, J001886-002 Gate Npdi, J005526-433 Bonnet Seal Buna N, J001950-001 Stem Seal Assy Buna N, J005526-212 Secondary Seal Buna N, J001932-002 Stem 303Ss, J005526-226 Stem Screw Seal Buna N, J001914-003 Stem Screw C1213; Hs Code: 84819000 Weight 6.510 Kg. P/N: J025216-12221
Minor Repair Kit, F/4",4”X5” Gate Valve 5000 PSI, P/N: J025216-04221
Major Repair Kit F/4In & 5X4In Demco Gate Valve, 5000 Psi, Std, Consist Of: 1Ea J002207-021 Seat Assy Steel 1040/Buna N, 1Ea J001926-002 Gate Aisi 4140 Ni Pltd, 1Ea J005520-439 Bonnet Seal Buna N, 2Ea J007426 Bearing Teflon/Phenolic, 1Ea J001951-001 Stem Seal Assy Buna N, 1Ea J005526-214 Secondary Seal Buna N, 1Ea J007439-002 Stem 303Ss, 1Ea J005526-226 Stem Screw Seal Buna N, 1Ea J007416 Stem Screw C1213, 1Ea J005305-10016 Key Steel 1Ea J007417 Down Stop Ring 1Ea J007413 Retainer; Hs Code: 84819000 Weight 11.800 Kg. P/N: J025216-14221
NO. | DESCRIPTION | MATERIAL | PART NO. | |
2000/3000 WP | 5000 WP | |||
1 | Lube Fitting | Steel | J005195 | |
2 |
Hub Assembly/ Handle |
ASTM A536 Ductile Iron | 2139714-01 | 2139481-01 |
3 | Tube | Clear Acrylic | / | J007459 |
4 |
Lock handle /Stem Cap |
C-1213/ ASTM A536 Ductile Iron | J001897 | J007411 |
5 | Key | Steel | / | J005305-10016 |
6 | Stem Screw | C-1213 | J001915 | |
7 | Stem Screw Seal | Buna-N | J005526-227 | |
8 | Screw Housing | C-1018 | J001958 | |
9 | Stem | 303 SS/316 SS | J001933-002/J001933-008 | |
10 | Secondary Seal | Buna-N | J005526-214 | |
11 | Retainer | C-1213 | J001942 | |
12 | Stem Seal Assembly |
Buna-N |
J001951-001 J001951-006 |
|
16 | Bonnet | ASTM A487 | J001972-XXX | |
18 | Bonnet Seal | Buna-N/ |
J005526-438/ J005526-439 J005531-438/ J005531-439 |
|
19 | Gate |
AISI 1045 Nickel Plated Cast SS ASTM A351 Grade CF8M |
J001926-002 J001926-008 |
|
20 | Body | A487 | ||
21 | Seat Assembly |
Inserts: Ductile Iron/Steel AISI C1040/316 SS Elastomers: Buna-N |
J002207-021/J002207-022 J002207-081J002207-082 |
|
22 | Pin, Lock Handle | Steel | J005420-18732 | |
23 | Bonnet Stud | ASTM A193 | J002072 | |
24 | Bonnet Stud Nut | ASTM A194 | 2709000-09-01 | |
25 | Body Stud | ASTM A193 | J002074 | |
26 | Body Stud Nut | ASTM A194 | 2709000-10-01 | |
NOTE | Major Repair Kit J025091-10421/ J025091-11421 (including Gate, Seat, Bonnet Seal, Stem Screw, Stem Screw Seal, Stem, Secondary Seal, Stem Seal Assy.) Minor Repair Kit J025091-00421/ J025091-01421 (including Gate, Seat, Bonnet Seal) |
We can also supply more full line gate valve parts for DEMCO 2”3”4” and 5”x4” gate valve at 5000psi, please contact our sales for more details.
