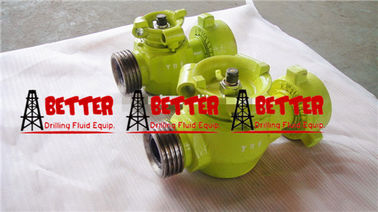

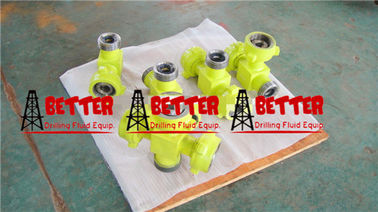

ABCO Plug Valve high pressure low torque 3"xFIG1502 M X F Alloy Steel Body

Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number fmc
Minimum Order Quantity 1 SET
Price OFFER

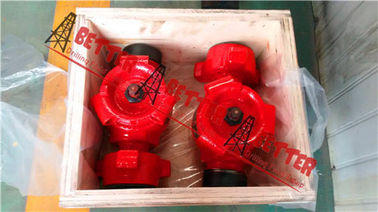

Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Technics Forged
Type Plug Connection Male
Shape Equal Head Code Hexagon
Leave a Message
Product Description

BETTER Low torque plug valves are based on the technologies introduced from FMC and SPM, forged from high strength alloy steel. They are robust, field-proven plug valves that provide dependable service for applications such as cementing, fracturing, acidizing, coiled tubing, and sand control.





Features

Low operating torque

End connections of plug valves may be Weco union or male/female thread (LP, TBG)

Maintenance and repair of valve body can be done without removal, and no special tools are needed for removal

The plugs have very good sealing performance

Visible: a visible positioner where we can see if valve is open or closed. Brake spring will limit the position of valve

3" hand wheel opener is suitable for opening in low temperature. Valves can be opened freely and flexibly.

ABCO Plug Valve high pressure low torque 3"xFIG1502 M X F Alloy Steel Body 0



Available

•Medium: Oil, gas, slurry and sour gas

•Working Pressure: 6,000psi, 10,000psi, 15,000psi

•Bore Size: 1", 2" and 3"

•Temperature: Normal or low temperature.

•Plug valves, manufactured to NACE-MR0175 and API RP-14E, are available and suitable for service in sour gas environment



FMC style Plug Valve and Repair Kit

There is 1”, 2”, 3” Plug Valve, rated pressure covers 42MPa, 70MPa, 105MPa, 140MPa( 6000psi, 10000psi, 15000psi, 20000psi). Connection end is male or female threaded or union. All series of plug valves are made according to API 6A & NACE MR 0175 standard, and replaceable with foreign popular brand plug valves. And we can supply the repair kits, interchangeable with SPM plug valves, they can work in standard, low temperature and H2S environment.

S/N Model Description Rated WPEnd connection
1 BT42-1” 1” plug valve 6000psi 2”male (LP)
2 BT70-1” 1” plug valve 10000psi 2”male (LP)
3 BT105-1” 1” plug valve 15000psi 2”male (LP)
4 BT105-1” 1” plug valve 15000psi 2”union (F*M)
5 BT42-2” 2” plug valve 6000psi 2” female (LP)
6 BT42-2” 2” plug valve 6000psi 2”union (F*M)
7 BT70-2” 2” plug valve 10000psi 2” female (LP)
8 BT105-2” 2” plug valve 15000psi 2”union (F*M)
9 BT42-3” 3” plug valve 6000psi 3”female (LP)
10 BT70-3 3” plug valve 10000psi 3”female (LP)
11 BT105-3 3” plug valve 15000psi 3”union (F*M)

Features:

  • Easy and fast maintenance and no need to be removed from the pipeline, no special tools required for removal, which can realize the online maintenance;
  • Special plating process provides excellent wear resistance and anticorrosive;
  • Obvious handle and limit mechanism;
  • any open device for option;
  • Low torque performance, flexible operation;
  • Special low sealing grease provides lubrication and sealing dual function.
