BETTER TYPE F Mud Pressure Gauge Equal OTECO Model 6 Flanged / Union end Connection 0-10000 psi Standard service

  • BETTER TYPE F Mud Pressure Gauge Equal OTECO Model 6 Flanged / Union end Connection 0-10000 psi Standard service
  • BETTER TYPE F Mud Pressure Gauge Equal OTECO Model 6 Flanged / Union end Connection 0-10000 psi Standard service
  • BETTER TYPE F Mud Pressure Gauge Equal OTECO Model 6 Flanged / Union end Connection 0-10000 psi Standard service
  • BETTER TYPE F Mud Pressure Gauge Equal OTECO Model 6 Flanged / Union end Connection 0-10000 psi Standard service
Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number OTECO 6
Minimum Order Quantity 1 SET
Price USD300.00 PER SET
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Steel Connection Union, Flange, Lpt
Pressure Scope 0-20000psi Appliction Standard,sour Gas, Salt Water Trim
Leave a Message
Product Description

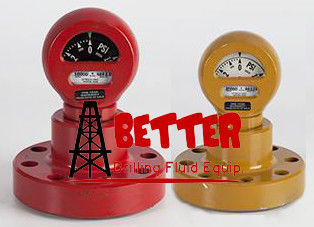

BETTER provides those popular and good quality pressure for oilfield mud pump, standpipe and manifolds. They are equivalent to OTECO model 6, model 7 and model 8. Also interchangeable with Cameron type F, type D pressure gauge. 3 gauge models offering a multitude of sizes, pressure ranges and sub end connection, Dial range in PSI, BAR, KPA. Model 8 gauge offers dual unit of measure. They can work for trim of Salt water, Sour gas, Standard (mud, water, oil)

Interchangeable with Cameron D & F, OTECO model 6, 7, 8; for standard & salt water & H2S gas

Type F / Model 6:
Dimensions: 4-7/8 inch diameter dial case
Pressure range: 0-20,000 psi
Standard end connection: 2” NPT/LPT male and 1” LPT/NPT female  .
Interchangeable with: Cameron type ‘F’, Oteco Model 6
Sub connection: PG6, 2” LPT female, PG61.81-10K,RJ BX-151, PG6 2.06-5K RJ R-24, PG6 2.06-10K RJ BX-152, PG6 union 2” FIG.1502 Male.
BETTER TYPE F Mud Pressure Gauge Equal OTECO Model 6 Flanged / Union end Connection 0-10000 psi Standard service 0
Type D / Model 7:
Dimensions: 7-5/8 “ diameter dial case
Pressure range: 0-6,000 psi (1000 psi, 3000 psi, 5000 psi, 6000 psi)
Standard end connection: 2” NPT/LPT female
Interchangeable with: Cameron type ‘D’, Oteco Model 7
Sub connection: PG7 2” Threaded LPT / NPT Female, Flange 5K RJ R-24, Flange 10K RJ BX-152, Union 2” FIG.1502 Male

Model 8:
Dimensions: 8-1/8 “ diameter dial case
Pressure range: 0-20000 psi (1000psi, 3000psi, 6000psi, 10000psi, 15000psi, 20000psi)
Standard end connection: 2” NPT/LPT male with a 1” LPT/NPT female.
Interchangeable with: Oteco Model 8
Sub connection: PG8 2” LPT/NPT Female, PG8 2.06-5K RJ R-24, PG8 2.06-10K RJ BX152, PG8 2” union FIG.1502 Male.

Part no. reference:
361111, 361121, 361211, 361231, 361221, 361411, 361431, 361421, 361511, 362411, 351541, 360056, 360057, 360000, 360002, 366431, 364701, 364581, 360059, 360058, 371211, 371311, 371411, 372201, 381411, 382041, 381541, 382331, 382061, 382281, 382841, 381891, 382262, 382191, 382541

ITEMMODELEND CONNECITONTRIMPRESSUE RANGE PSI
361111BTD62” NPTSTD0-1000
361121BTD62” NPTSALT0-1000
361211BTD62” NPTSTD0-3000
361231BTD62” NPTSOUR H2S0-3000
361221BTD62” NPTSALT0-3000
361411BTD62” NPTSTD0-6000
361431BTD62” NPTSOUR0-6000
361421BTD62” NPTSALT0-6000
361511BTD62” NPTSTD0-10000
362411BTD62” NPTSTD0-42000
361541BTD61.81-10K,RJ,BX-151STD0-10000
360056BTD62.06-5K,RJ.R-24STD0-6000
360057BTD62.06-5K,RJ.R-24SOUR0-6000
360000BTD62.06-10K, RJ,BX-152STD0-10000
360002BTD62.06-10K, RJ,BX-152SOUR0-10000
366431BTD62”FIG1502 MALESTD0-6000
364701BTD62”FIG1502 MALESOUR0-6000
364581BTD62”FIG1502 MALESTD0-10000
360059BTD62”FIG1502 MALESOUR0-10000
360058BTD62”FIG1502 MALESTD0-15000
371211BTF72”LPTSTD0-3000
371311BTF72”LPTSTD0-5000
371411BTF72”LPTSTD0-6000
372201BTF72”FIG1502 MALESTD0-6000
381411BTG82”LPTSTD0-6000
382041BTG82.06-5K,RJ.R-24STD0-6000
381541BTG82.06-5K,RJ.R-24SOUR0-6000
382331BTG82.06-5K,RJ.R-24STD0-420
382061BTG82.06-10K, RJ,BX-152STD0-10000
382281BTG82.06-10K, RJ,BX-152STD0-700
382841BTG82.06-10K, RJ,BX-152STD0-70000
381891BTG82”FIG1502 MALESTD0-6000
382262BTG82”FIG1502 MALESOUR0-6000
382191BTG82”FIG1502 MALESOUR0-10000
382541BTG82”FIG1502 MALESOUR0-42000
