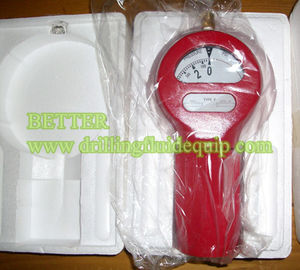

CAMERON TYPE D and F Mud Pressure Gauge Salt Water Gas or Standard API 16C Alloy Steel

CAMERON TYPE D and F Mud Pressure Gauge Salt Water Gas or Standard API 16C Alloy Steel

    • CAMERON TYPE D and F Mud Pressure Gauge Salt Water Gas or Standard API 16C  Alloy Steel
    • CAMERON TYPE D and F Mud Pressure Gauge Salt Water Gas or Standard API 16C  Alloy Steel
    • CAMERON TYPE D and F Mud Pressure Gauge Salt Water Gas or Standard API 16C  Alloy Steel
  • CAMERON TYPE D and F Mud Pressure Gauge Salt Water Gas or Standard API 16C  Alloy Steel

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: D and F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: OFFER
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Standard: API 16C
    Color: Red, Yellow,Blue

    BETTER provides those popular and good quality pressure for oilfield mud pump, standpipe and manifolds. They are equivalent to OTECO model 6, model 7 and model 8. Also interchangeable with Cameron type F, type D pressure gauge. 3 gauge models offering a multitude of sizes, pressure ranges and sub end connection, Dial range in PSI, BAR, KPA. Model 8 gauge offers dual unit of measure. They can work for trim of Salt water, Sour gas, Standard (mud, water, oil)



    Interchangeable with Cameron D & F, OTECO model 6, 7, 8; for standard & salt water & H2S gas



    Type F / Model 6:

    Dimensions: 4-7/8 inch diameter dial case

    Pressure range: 0-20,000 psi

    Standard end connection: 2” NPT/LPT male and 1” LPT/NPT female  .

    Interchangeable with: Cameron type ‘F’, Oteco Model 6

    Sub connection: PG6, 2” LPT female, PG61.81-10K,RJ BX-151, PG6 2.06-5K RJ R-24, PG6 2.06-10K RJ BX-152, PG6 union 2” FIG.1502 Male.



    Type D / Model 7:

    Dimensions: 7-5/8 “ diameter dial case

    Pressure range: 0-6,000 psi (1000 psi, 3000 psi, 5000 psi, 6000 psi)

    Standard end connection: 2” NPT/LPT female

    Interchangeable with: Cameron type ‘D’, Oteco Model 7

    Sub connection: PG7 2” Threaded LPT / NPT Female, Flange 5K RJ R-24, Flange 10K RJ BX-152, Union 2” FIG.1502 Male



    Model 8:

    Dimensions: 8-1/8 “ diameter dial case

    Pressure range: 0-20000 psi (1000psi, 3000psi, 6000psi, 10000psi, 15000psi, 20000psi)

    Standard end connection: 2” NPT/LPT male with a 1” LPT/NPT female.

    Interchangeable with: Oteco Model 8

    Sub connection: PG8 2” LPT/NPT Female, PG8 2.06-5K RJ R-24, PG8 2.06-10K RJ BX152, PG8 2” union FIG.1502 Male.



    Part no. reference:

    361111, 361121, 361211, 361231, 361221, 361411, 361431, 361421, 361511, 362411, 351541, 360056, 360057, 360000, 360002, 366431, 364701, 364581, 360059, 360058, 371211, 371311, 371411, 372201, 381411, 382041, 381541, 382331, 382061, 382281, 382841, 381891, 382262, 382191, 382541



    Please contact our sales if you are interested in any of our products.
