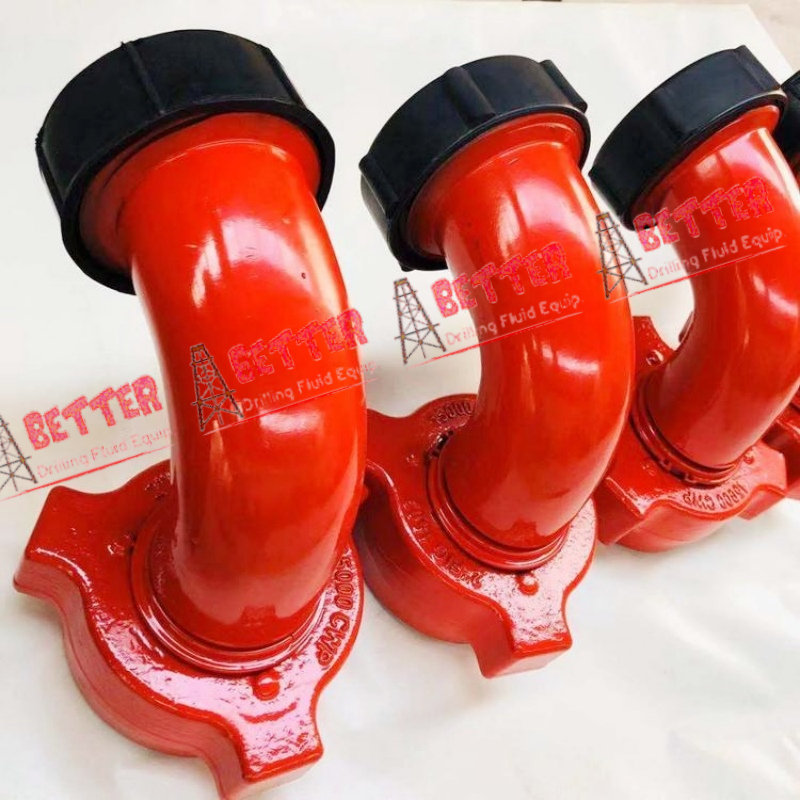

Swivel Joint, Style 30, 2" 1502 MxF, 15000 psi STD Service

  • Swivel Joint, Style 30, 2" 1502 MxF, 15000 psi STD Service
  • Swivel Joint, Style 30, 2" 1502 MxF, 15000 psi STD Service
Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number CHIKSAN
Minimum Order Quantity 1 SET
Price OFFER
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Steel Standard API 6A
Pressure Rating Up To 15000psi
Leave a Message
Product Description

Swivel joint with smooth round bore design to minimize flow restriction, longsweep and triplestep swivel joint have an extra-long radius elbows that optimize flow and extend life in the ball race areas when handling abrasives at extremely high pressures. And dual and tri-race ball bearing swivels are designed to meet or exceed load capacities and long service condition, all ball races are hardened and carburized.



BETTER Chiksan swivel joint are designed and manufactured in accordance with API 6A and API 16C standard they are based on SPM & ANSON and FMC series Swivel Joints which are Widely used in drilling, fracturing, cementing and production.

Features:

► Long sweep joints have extra-long radius elbows for better flow characteristics
► Manufactured specifically for high pressure applications
► All Swivel Joints are field repairable and easy to use. Repair kits are available
► Tri-race ball bearing Swivel Joints are matched to load capacities & service conditions
► Available in both union and threaded ends







Model

CWP

Psi

 End Connection Style 20 Style 30 Style 40 Style 50 Style 60 Style 70 Style 80 Style 10 Style 100
1” LS10 10000 Threaded CF 610537 N/A 3139546 CF N/A CF 3141454 N/A
1”LS15 15000 1502MXF CF 3259291 N/A 3139547 CF N/A P516135 3139550 CF
1.5”LS10 10000 Threaded P506047 CF N/A 3139779 CF N/A CF P501542 N/A
1.5”LS15 15000 1502MXF P510860 CF N/A 3139778 CF N/A P502504 3139781 3139780
2”LS10 10000 Threaded P523525 3139888 3139890 3139904 3144545 3139891 3139892 3139476 N/A
2”LS15 15000 1502MXF P514100 3144126 N/A 3139475 3144630 P505482 3139901 3139905 3144094
15000 1502MXM CF N/A N/A 3267203 6101559 N/A N/A 3139477 3139903
15000 1502FXF CF N/A N/A 3144000 P504952 N/A N/A P518960 CF
2”LS20 20000 2002MXF CF CF N/A 3144569 CF N/A CF 3144570 CF
20000 2002MXM CF P524579 N/A N/A P512325 N/A N/A 3144571 3144572
3” Tsi15 15000 1502MXF P505417 P505416 N/A P505327 P505420   P505409 P505325 P505410
3” Tsi20 20000 2002MXF CF CF N/A P527340 CF   P505326 P505326 P505411
4”Tsi10 10000 1002MXF P516092 P517487 N/A P516091 CF   3145134
4”Tsi15 15000 1502MXF P530256 CF N/A P527331 CF   P516093 3130501 P516094




Swivel Joint, Style 30, 2" 1502 MxF, 15000 psi STD Service 0



Swivel Joint, Style 30, 2" 1502 MxF, 15000 psi STD Service 1
