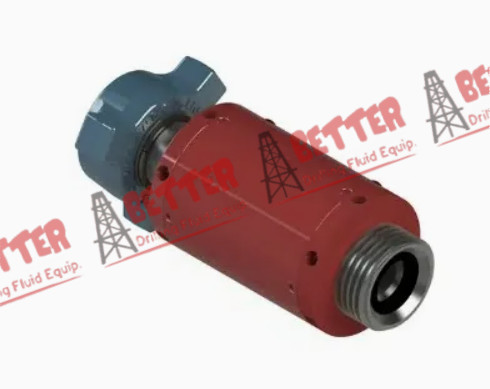

BETTER FMC/Weco Style Check Valve Dart Check Valves 1", 2",3"
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | FMC/Weco |
| Minimum Order Quantity | 1 SET |
| Price | OFFER |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Alloy | Technics | Forged |
|---|---|---|---|
| Type | Check | Connection | Thread |
| Shape | Equal | Head Code | Hexagon |
Product Description
Check valve is a flow control device that allows one-way flow but prevents backflow. BETTER has three types: top enter type check valve, in-line clapper type check valves and dart type check valves, which are typically used for oilwell maintenance and pipelines that allow flow into the oil well. This provides safety devices at different flow positions and ensures that pressure and liquid do not return to the area of the pump, thereby damaging the equipment.
2” and 3” sizes with rated working pressure up to 20000psi for optional, they are equivalent to FMC/SPM type 2A29018 2A29022 2A28563 API standard/H2S.
Our valves can be full interchangeable with famous brands FMC/SPM/WECO/NOV ANSON/CCSC.
Specification
| Material Class | AA-EE |
| Working Media | Crude oil and natural gas |
| Processing Standard | API 6A |
| Working Pressure | 3000~15000 psi |
| Performance Requirement | PR 1-2 |
| Product Specification Level | PSL 1-3 |
| Nominal Bore Diameter | 1”,2”, 3”,4” |
| Connection Type | Union, Box thread, Pin thread |
Features
• Forged body by alloy steel
• Simple structure, the internal parts can be inline changed
• With clear flow direction identification mark.
Dart Check Valves
|
Nominal Size |
CWP | Service | End Connections |
Flow Orientation |
Part Number | A | B | Weight | Repair Kit | Elastomer Set |
| 1" | 15,000 | Standard | 1502MXF | Standard | P536118 | 14.04 | 10.31 | 76 | P518835 | P518834 |
| 2" | 15,000 | Standard | 1502MXF | Standard | P510771 | 14.04 | 10.31 | 87 | P518835 | P518834 |
| 3" | 15,000 | Standard | 1502MXF | Standard | P510773 | 15.67 | 11.43 | 130 | P519874 | P519873 |
