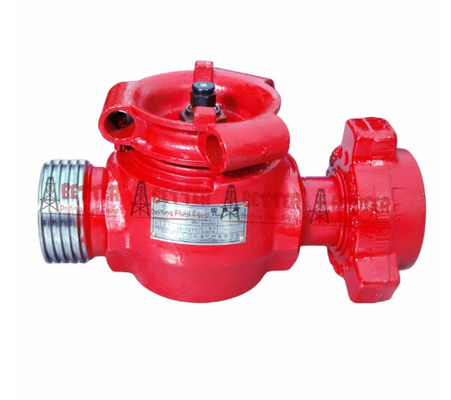

BETTER FMC Weco Style Plug Valve Top Entry Plug Valve Low Torque 1",2",3"
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | FMC |
| Minimum Order Quantity | 1 SET |
| Price | OFFER |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Alloy | Technics | Forged |
|---|---|---|---|
| Type | Plug | Connection | Male |
| Shape | Equal | Head Code | Hexagon |
Product Description
BETTER's plug valve body are forged by the high quality alloy steel. All processes including forging, machining, heat treatment and pressure test are strictly controlled and fully traceable in according to API 6A, API 16C and Q1, as well as NACE-MR-01-75(sour gas service)full packages of material Test Report can be sent with consignment upon client's request.
We can supply the low torque plug valve size ranging from 1" to 3" and can be handle up to 15000psi for either standard service or sour gas service.
Specification
| Bore Size: | 1“ x 2”, 2" x 2", 3" x 3", 4" |
| Working Pressure: | 10,000PSI - 15,000PSI |
| Material Class: | AA, BB, CC, DD, EE, FF, HH |
| Temperature Class: | PU, LU, PX, KU |
| Product Specification Level: | PSL1 to PSL4 |
| Performance Rating: | PR1 and PR2 |
| End Connections: | Weco Hammer Union, Thread, Flanged, FIG1502 |
| Medium: | Oil, Gas, Water, etc |
| Service: | Standard, Sour |
| Service | Size | Description | Working Pressure (psi) | Test Pressure (psi) | Operating | Demension(inch) | |
| End-to-End | Height | ||||||
| Standard | 1"×1" | 1502 Union M×F | 15,000 | 22,500 | Handle | 10.57 | 6.59 |
| H2S | 1"×1" | 1502 Union M×F | 10,000 | 15,000 | Handle | 10.57 | 6.59 |
| Standard | 1"×2" | 1502 Union M×F | 15,000 | 22,500 | Handle | 10.57 | 6.59 |
| H2S | 1"×2" | 1502 Union M×F | 10,000 | 15,000 | Handle | 10.57 | 6.59 |
| Standard | 2"×2" | 1502 Union M×F | 15,000 | 22,500 | Handle | 15.25 | 8.05 |
| H2S | 2"×2" | 1502 Union M×F | 10,000 | 15,000 | Handle | 15.25 | 8.05 |
| Standard | 3"×3" | 1502 Union M×F | 15,000 | 22,500 | Handle | 15.69 | 14.27 |
| H2S | 3"×3" | 1502 Union M×F | 10,000 | 15,000 | Handle | 15.69 | 14.27 |
Feature
* Forged body by alloy steel
* Low torque operation
* Flanged, threaded connection is available
* Fast, simple field repair
Product show
BETTER can provide two kinds of plug valves, one type is top entry plug valve, interchangeable with FMC/SPM/WECO and the other type is bottom entry plug valve, interchangeable with HALLIBURTON/MSI/TSI/NOV ANSON/CSCC. These plug valves can be manual, gear, or actuated operation. As all know the Weco ULT and DR plug valves are premium, quarter-turn valves designed for a wide range of standard and sour gas drilling, production, and well-servicing applications. These rugged valves are offered in single and dual-body designs in pressures to 15,000 psi.
| Plug Valve Model | Nominal Size (in) | P/N |
Weco End Connection |
Service |
CWP Psi Bar |
Ib /Kg |
| ULT 150 | 1 | P516114 | 1502 | Standard | 15,0001034 | 3315 |
| ULT 100 | 1 | P524578 | 1502 | Sour | 10,000690 | 3315 |
| ULT 150 | 1x2 | P516108 | 1502 | Standard | 15,0001034 | 43(19.5) |
|
1x2 (38 bore) |
P516146 | 1502 | Standard | 15,0001034 | 58(26.3) | |
| ULT 100 | 1x2 | P516208 | 1502 | Sour | 10,000690 | 43(20) |
| ULT 150 | 2 | P537789 | 1502 | Standard | 15,0001034 | 84(38) |
Related Products
We can also supply WECO ULT Plug Valve and DR style plug valve. And other check valve, swivel joint, wing unions, fittings, pup joints for flow control.
