China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450

  • China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450
  • China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450
  • China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450
  • China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450
Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number OTECO TYPE 72 2" 3" 4" 5000psi
Minimum Order Quantity 1 SET
Price USD550.00 PER SET
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Size 2",3",4" Test Standard API S Pec 6A
Structure Gate Pressure High Pressure Up To 5000psi
Power Manual Material Class DD,EE, FF, NACE MR-0175
Specification Level PSL1-PSL4 Media Mud
Performance Level PR1, PR2 Size 2-5"
Connection Threaded, Butt-welded, Flanged, Union
Leave a Message
Product Description

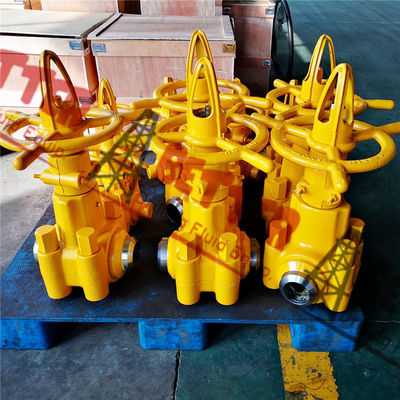

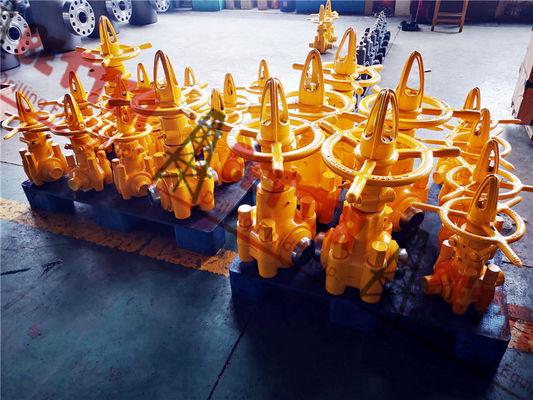

​China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 0China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 1​​Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450



BETTER Mud Gate Valve is equivalent to OTECO model 72 series, easy operation, tight shut offs, long service life before overhaul. This assures simple, fast, low cost renewal in the field.



Specifications:

  • Size: 2", 3", 4", 4” x 5”
  • Working Pressure: 2000psi, 3000psi, 5000psi
  • Working Temperature: -46°C ~ +240°C
  • Connections: LP Threaded, Butt-weld, Flanged, Union Available
  • Working Medium: Sour Gas, Water Flood
  • Valve body protected by oil and abrasion resistant long life rubber seals
  • Full rising, one piece forged gate & stem, shows at a glance if valve is open, partly open or closed.

Application:

Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, and well treating chemicals



Standard Assembly:

Weld end-2” M11200-101, M11200-102, M11200-111, M11200-112.

Weld end-3” M11300-101, M11300-102, M11300-111, M11300-112.

Weld end-4” M11400-101, M11400-102, M11400-111, M11400-112.

Screwed end- 2” M122000-201, M122000-202, M122000-211, M122000-212.

Screwed end- 3” M123000-201, M123000-202, M123000-211, M123000-212.

Screwed end- 4” M124000-201, M124000-202, M124000-211, M124000-212.

Flange end-2” M132000-301, M132000-302, M132000-311, M132000-312.

Flange end-3” M133000-301, M133000-302, M133000-311, M133000-312.

Flange end-4” M134000-301, M134000-302, M134000-311, M134000-312.

2” 2000PSI V-224 V-224-F

2” 3000PSI V-236 V-236-F

2” 5000PSI V-250 V-250-F

3” 2000PSI V-324 V-324-F

3” 3000PSI V-336 V-336-F

3” 5000PSI V-350 V-350-F

4” 2000PSI V-424 V-424-F

4” 3000PSI V-436 V-436-F

4” 5000PSI V-450 V-450-F

NO DESCRIPTION MATERIAL 2000/3000/5000 WP
2” 3” 4”
1 HANDWHEEL / M120132 M120142 M120143
2 STEM NUT / M120232 M120242 M120243
3 GATE

4130 Nickel Plated

316SS

 M120323 M120333 M120343
4 SPLIT BONNET ASSEMBLY Incl. item5, 6 &17 M120432 M120442 M120443
5 BONNET BOLT 2 req’d M120532 M120542 M120543
6 BONNET NUT 2 req’d M120623 M120623 M120643
7 STEM PACKING

BUNA-N

M120732-1

M120732-2

M120742-1

M120742-2

M120743-1

M120743-2
8 STEM PACKING RING

1020 Cadmium Plated

316SS

 M120832 M120842 M120843
9 VALVE BODY Standard/Sour Gas M120925 M120935 M120945
10 GATE PACKING

BUNA-N

M121023-1

M121023-2

M121033-1

M121033-2

M121043-1

M121043-2
11 WEAR PLATE 1026 Carburized/316SS M121123 M121133 M121143
12 O RING

BUNA-N

M121223-1

M121223-2

M121233-1

M121233-2

M121243-1

M121243-2

13

a

b

c

d

 BODY SUB

WELD SCH.XXH

WELD SCH.160

SCREW LP

SCREW NUE

FLANGED RAISED FACE

FLANGED RTJ

M121323-10

M121323-11

M121323-20

M121323-21

M121323-30

M121323-31

M121333-10

M121333-11

M121333-20

M121333-21

M121333-30

M121333-31

M121343-10

M121343-11

M121343-20

M121343-21

M121343-30

M121343-31
14 BODY CAP Standard/Sour Gas M121425 M121435 M121445
15 BODY STUD 4 req’d M121525 M121535 M121545
16 BODY STUD NUT 4 req’d M121625 M121635 M121645
17 GREASE FITTING Steel, 1/8”PTF - - -
18 GREASE FITTING Steel, 1/8”PTF - - -

Major repair kits includes Gate Packing, Wear Plate, O-ring, Gate, Stem Packing

Minor repair kits includes Gate Packing, Wear Plate, O-ring































China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 2

China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 3

China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 4

China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 5

China Manufacturer Oteco Type 72 Style Mud Gate Valve 2" 3" 4" V224, V236, V 250, V424, V 436, V450 6
