BETTER Cameron FC/FL style Slab Gate Valve Non-rising stem and rising stem type Manual & Hydraulic Operation Alloy Steel

Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number Cameron FC/FL style Slab Gate Valve
Minimum Order Quantity 1 SET
Price USD 500.00 PER SET

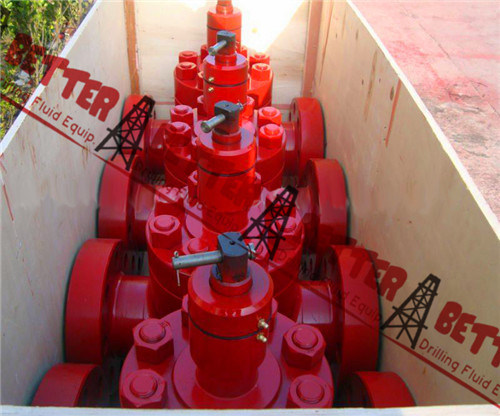

Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Or Nonstandard Standard Structure Gate
Pressure High Pressure Power Manual
Material Alloy Temperature Of Media Normal Temperature
Media Base
Leave a Message
Product Description

BETTER Slab Gate Valve is equivalent to CAMARON model FC & FL series, whose feature is a non-rising stem with a slab gate, full-bore thru-conduit design, floating slab gate and seats, floating seat ring body bushing design to provide safe dependable service. This series of gate valves are made by integral die forging, the body and flanges are integral (non-welding). Shot Blasting for every parts of valve. Phosphate to improve corrosion resistance.



Specifications

• Manufactured and tested in accordance with API Spec 6A

• Forged Steel Body and Bonnet

• A True Bi-Directional Valve

• Low Operating Torque

• API Spec 6A PSL, 1, 2, 3

• Material Classes DD, EE, FF, to NACE MR-01-75

• Connections: Threaded, Butt-weld, Flanged, Union
• Medium available: Oil, Gas, and Water

• Specification Level: PSL1 ~ PSL4

• Performance Requirement: PR1 ~ PR2

• Size from 1 13/16”- 7 1/16”

• Working pressures: 5000-20000 PSI



Application

Well Control System, Drilling Manifolds, X-mas trees



Slab Gate Valve divided into Non-rising stem and rising stem type, also divided into manual and hydraulic type.

MANUAL SLAB GATE VALVE (NON-RISING STEM)

Feature

  • Simple structure and renewable gate and seat assembly;
  • One-piece and double-acting gate with long service life;
  • Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing minimize operational torque;
  • Bearing cap is provided with a grease cup to make it easy to inject lubricating grease in the field;
  • Threaded packing gland allows removal of bearings and stem packing under line pressure;
  • Both the bolted bonnet and modern bonnet seal ring provide simple structure and reliable sealing;
  • The sealing surfaces of the gate and seat are hard faced for wear and corrosion resistance;
  • Wave springs are installed between the body and seat and between the gate and seat. The gate and seat still maintain a positive metal to metal seal under low pressure;
  • Floating gate design requests the hand wheel to be backed off 1/4 turn after its rotation can go no further.

MANUAL SLAB GATE VALVE (RISING STEM)
Rising stem slab gate valves have the same characters as non-rising stem slab gate valves. For rising stem, the close and open of the valves is completely controlled.

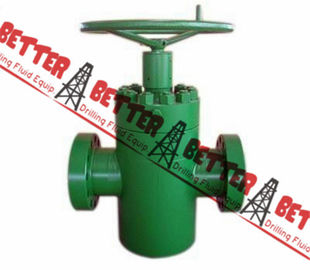

BETTER Cameron FC/FL style Slab Gate Valve Non-rising stem and rising stem type Manual & Hydraulic Operation Alloy Steel 0

HYDRAULIC SLAB GATE VALVE
Hydraulic slab gate valves adapt hydraulic control, used extensively in the automatic control system and remote control, work steadily and use freely.



Specification
Nominal pressure: 2000psi - 15000psi
Nominal size: 1-13/16″ - 4-1/16″
Working temperature: P U
PR: 1-2

PSL: 1-4

MC: AA-FF

OP: 100~1500psi

KEY NO. DESCRIPTION QTY. MATERIAL
1 BODY 1 4130
2 GATE 1 4130
3 SEAT 2 4130
4 O-RING 4 NBR
5 WAVE SPRING 2 410
6 SEALING RING 2 NBR
7 STEM 1 410
8 BONNET SEAL RING 1 1010
9 BONNET 1 4130
10 BONNET NUT 8 5140
11 BONNET STUD 8 4130
12 STEM LIP PACKING 3 NBR
13 PACKING RING 1 410
14 PACKING GLAND 1 4130
15 BEARING 2 ASSY.
16 STEM NUT 1 4130
17 FLAT KEY 1 STEEL
18 BEARING CAP 1 5140
19 OIL CUP 1 ASSY.
20 O-RING 1 NBR
21 HUB ASSY. 1 STEEL
22 LOCK HANDLE 1 STEEL
23 STEM PROTECTOR 1 1035
