    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: BT-SB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: OFFER
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Polyurethane Color: Red

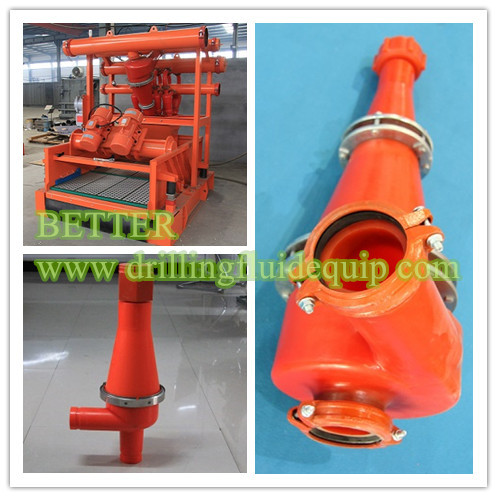

    MUD CLEANER

    Combined with Desander, Desilter and an Underflow shale shaker, compact design with small footprint;

    Consist of a two-stage separation process using a combination of hydrocyclones mounted over a shale shaker to operation as a single unit;

    Solids passed through the hydrocylones and separated particles pass through the shaker screens,and bigger particles remain on the screen and removed manually;

    Desander & desilter cones made of Polyurethane ( PU ) or high-chromium cast iron or ceramic;

    1-3 pcs Desander cones for optional, each cone can process 500 GPM and makes a separation between 45 and 75 μm;

    8-20 pcs Desilter cones for optional, each cone can process 80 GPM, and makes a separation between 15 and 45 μm;

    Effective on both oil-base and water-base weighted and unweighted drilling fluid system in removing and drying solids;

    Minimizing waste generated and reducing disposal costs;

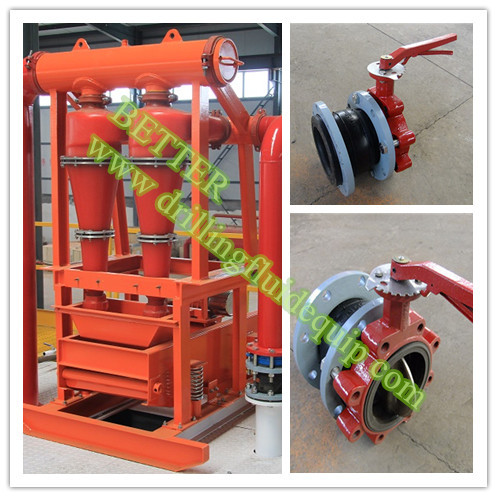

    DRILLING FLUID DESANDER

    Combined with Desander cones and an Underflow shale shaker, compact design with small footprint;

    An ideal second-stage separation equipment;

    Desander cones made of Polyurethane ( PU ) or high-chromium cast iron or ceramic;

    To separate the solids between 45 and 75 μm;1, 2 or 3 pieces of 10" or 12" cones for different capacities optional;

    Clamp type for easy maintenance;

    Customized desander acceptable to meet the customer special needs;

    Brand electrical components of ABB, Siemens, and Schneider adopted;

    Brand imported vibration motors of US Martin or Italy OLI adopted, IEC Ex, ATEX and UL Certified;

    De-sander Without Underflow Shale Shaker For oil gas drilling un-weighted drilling mud No Consumable Screens; Small Footprint; Economic Choice

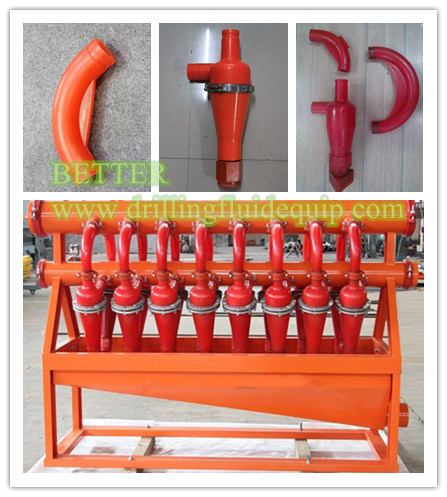

    DRILLING FLUID DESILTER

    Combined with Desilter cones and an Underflow shale shaker, compact design with small footprint;

    An ideal three-stage separation equipment;

    Desilter cones made of Polyurethane (PU) or high-chromium cast iron or ceramic;

    To separate the solids of 15 ~ 47 μm; 6, 8, 10, 12 or 16 pcs of 4" cones for different capacities optional;

    Customized desilter acceptable to meet the customer special needs;

    Brand electrical components of ABB, Siemens, and Schneider adopted;

    Brand imported vibration motors of US Martin or Italy OLI adopted, IEC Ex, ATEX and UL Certified.

          Desilter Without Underflow Shale Shaker For oil gas drilling un-weighted drilling mud No Consumable

          Screens; Small Footprint; Economic Choice

          All our mud cleaner, desander, desilter will equip with mission magnum style centrifugal pump.

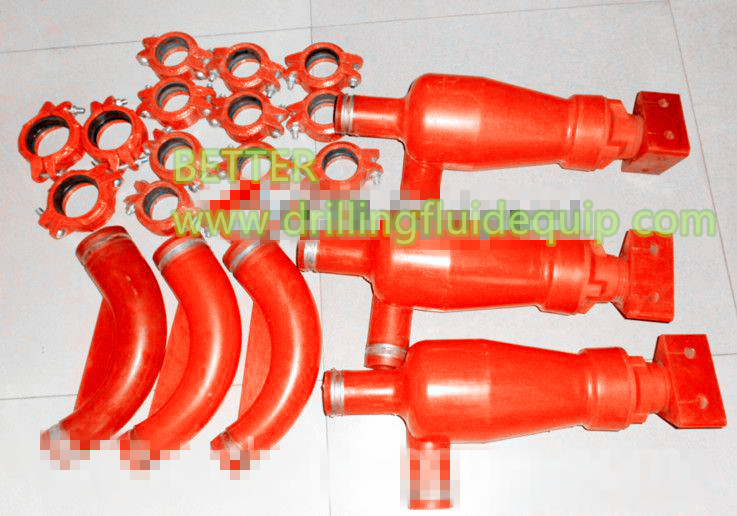

    HYDROCYCLONE

    A wide variety of hydro-cyclones for desilters and desanders as replacements for major O.E.M. brands in the 4”, 5”, 6”, 10” & 12” sizes ;

    Treat capacity from 10m3/h to 120 m3/h, to particles of above 15 μm;

    Made of Polyurethane or abrasion-resistant alloy, Clamp design ;

    The separation of solids is dependent upon feed particle size, fluid density &viscosity, fluid feed pressure and cone apex size;

    Enough feeding pressure is necessary, less bend & T pipeline to ensure min.pressure loss. All hydrocyclones require 75ft (22.9m) of head, D50 is dependent on the feeding particle size.
