| Place of Origin: | China |
| Brand Name: | BETTER |
| Certification: | API 7K, 6A, 8C, ISO |
| Model Number: | 4"-46" |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | OFFER |
| Packaging Details: | Carton, Plywood Case |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, West Union |
| Supply Ability: | Fast Delivery, Plenty in Stock |
| Material: | Alloy | Technics: | Casting |
|---|---|---|---|
| Type: | Union | Connection: | Welding |
| Shape: | Equal | Head Code: | Square |

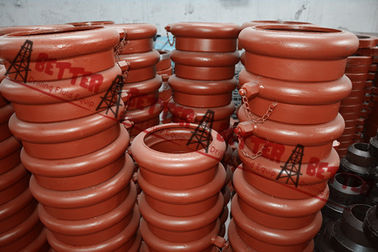

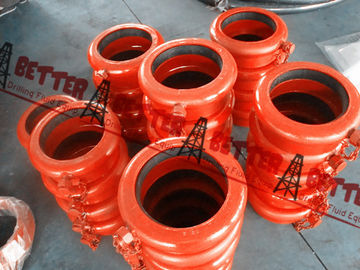

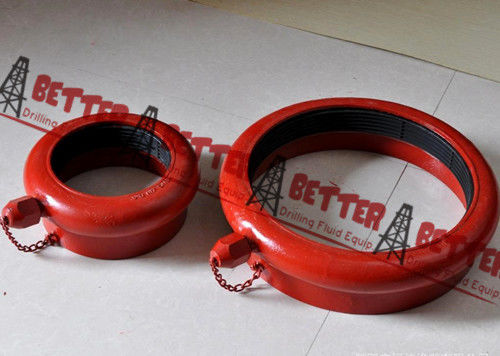

BETTER KEMPER BULLDOG style Air O Grip Union & Air Tube
Seal-O-Grip Unions w/ Nitrile Pneumatic Tube air-inflatable connectors for low-pressure fluid or mud suction and return lines;

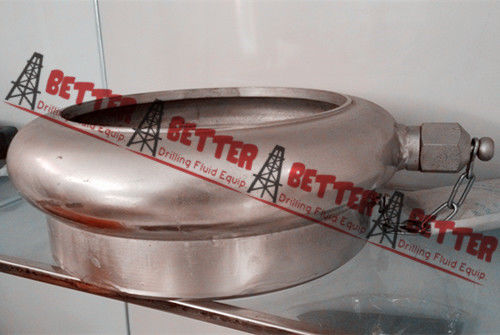

Carbon steel body welds in place on mud tanks or manifold pipe, with NBR air tube for sealing even if the connecting pipe is not perfectly aligned;
Available sizes in 4”-16”
Equivalent to KEMPER Seal-O-Grip Union, BULLDOG Air Grip Union Assembly ( Air Grip Union + Inflatable Tube)
P/N: P480, P680, P880, P1080, P1280, P1480, P1680
Air O grip Union/air tube
BETTER offers the most complete line of Air O unions with the size from 4” to 16”, which is equivalent to Kemper style. BETTER Air O Grip Union (Seal-O-Grip Unions, Pneumatic Union, Air Seal Union) is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system. Air-Unions are designed for 150 PSI maximum line pressure
Air O Grip Unions Pneumatic Tyre Union Air Seal Union Air Tube
BETTER Air O Grip Union (Seal-O-Grip Unions, Pneumatic Union, Air Seal Union) is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system.Air-Unions are designed for 150 PSI maximum line pressure
Both of BETTER Air Union and Tank Unionstyles are replacement with other major brands, Bulldog,C&C,Kemper.
Features
Fast, easy make-up without close alignment
Allows pipe expansion or misalignment w/o breaking the seal
No nuts, bolts, or wrenches required
Available in 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 21 1/4”, 22”, 24”, 26”, 28”, 30”, 32”, 34”, 36”, 37.5”,46”
|
Line Pipe
Size
|
Line Pipe
O.D.
|
Max. Misalignment
Tolerance
|
Seal-O-Grip Union Dimensions in mm
|
|||||
|
A
|
B
|
C
|
D
|
E
|
F
|
|||
|
4-inch
|
4 ½”(114.3mm)
|
7°
|
213
|
114
|
148
|
168
|
57
|
110
|
|
6-inch
|
6 5/8”(168.3mm)
|
14°
|
267
|
168
|
199
|
219
|
57
|
110
|
|
8-inch
|
8 5/8”(219.1mm)
|
14°
|
318
|
219
|
253
|
273
|
57
|
110
|
|
10-inch
|
10 3/4” (273.1mm)
|
14°
|
372
|
273
|
305
|
325
|
57
|
120
|
|
12-inch
|
12 3/4”(323.9mm)
|
14°
|
424
|
325
|
336
|
356
|
57
|
120
|
|
14-inch
|
14” (355.6mm)
|
14°
|
476
|
356
|
386
|
406
|
57
|
120
|
|
16-inch
|
16”(406.4mm)
|
14°
|
507
|
406
|
437
|
457
|
57
|
120
|
