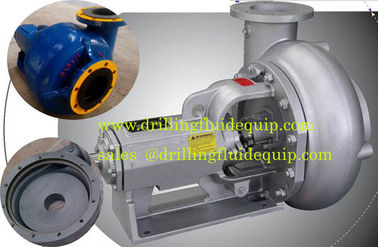

BETTER 2500 Heavy duty Centrifugal Sand Pump 3x4x13 Mission 2500 Magnum SPD Mud Hog 2.5 Style Pump Spare Parts

Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number SPD MUD HOG 2.5
Minimum Order Quantity 1 SET
Price USD120.00-150.00 PER SET
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Centrifugal Pump Structure Single-stage Pump
Usage Slurry Power Electric
Standard Or Nonstandard Standard Fuel Motor
Pressure Low Pressure Application Sewage
Material Hard Iron, High Chrome, Bronze, Etc
Leave a Message
Product Description

BETTER designs and produces series of heavy-duty centrifugal pumps which is equivalent to all kinds of foreign major brand design, basing on the introduced brand drawings and samples. Though our pump’s function is similar as most of factories made in China, but why we gave up the domestic common design to build a new line:



1. Mission centrifugal pump line has proven to be the best centrifugal design for handling abrasive mud to compare with other brand centrifugal pumps made in China;

2. Foreign design pumps deliver superior performance, better longevity, and these pump line offers a broad selection of innovative features for a variety of routine, demanding, abrasive and corrosive applications;

3. In order to better stand with other popular brand pump existed in the markets, we must make sure our pump and parts compatible with them;

4. To save or reduce the usage cost for all the users because of all BETTER pumps and parts completely replaceable.

BUT BETTER COULD PROVIDE A MUCH COMPETITIVE PRICE FOR YOU.

And,

All BETTER pumps are build using the excellent quality components, and its parts are 100& identical in all dimensions to Mission™ Magnum™, 2500 supreme™, Halco™ 2500, SPD™ Baker™ Mud Hog™ 2.5, MCM™ 250 series, Double life™ 250, Derick Premium™ 250, XBSY™/Victory/Westpetro, TSC™/HCP, Mattco™, Cobra Pump, Harrisburg™, and Dragon™ 250, etc.



BETTER now offering:

Mission Magnum Style

Mission Sandmaster Hydraulic Drive Style

Mission Spacesaver Close Coupled Style

Mission Magnum XP/XL Style

MCM 250 Style Centrifugal Pump

SPD Mud Hog 2.5 Style

Mission Vertical Style

Shear Pump

Centrifugal Pump Package Skid

O.E.M. Pump Interchangeable Spares



Common Application

•Mix and transfer abrasive fluids for drilling industry;

•Applied in Barite, ferric oxide, mineral oil, base drilling mud, glass fibers, sugar processing, Ash or coal conveyers, cement, mine de-watering, lime slurries, kaolin clay, crystalline forms;

•Best choice for solid control system or mud cleaning system for land and offshore drilling rigs;

•Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x14, 10x8x14 to 14x12x22. Bare pumps, horizontal packages, and overhead belt drive type are available. Explosion-proof electric motors are available up to 350HP, in 1150, 1450, 1750 RPM at 50Hz or 60Hz.

BETTER 2500 Heavy duty Centrifugal Sand Pump 3x4x13 Mission 2500 Magnum SPD Mud Hog 2.5 Style Pump Spare Parts 0BETTER 2500 Heavy duty Centrifugal Sand Pump 3x4x13 Mission 2500 Magnum SPD Mud Hog 2.5 Style Pump Spare Parts 1BETTER 2500 Heavy duty Centrifugal Sand Pump 3x4x13 Mission 2500 Magnum SPD Mud Hog 2.5 Style Pump Spare Parts 2

BETTER MODEL SIZE NAME SEALING TYPE IMPELLER SIZE PART NO.
BT-640202123-ITXX** 3 x 2 x 13 Centrifugal Pump Mechanical Seal 13” 640202123ITA0
BT-640202222-ITXX** 4 x 3 x 13 Centrifugal Pump Mechanical Seal 13” 640202222ITA0
BT-640202321-ITXX** 5 x 4 x 14 Centrifugal Pump Mechanical Seal 14” 640202321ITA0
BT-640202529-ITXX** 6 x 5 x 11 Centrifugal Pump Mechanical Seal 11” 640202529ITA0
BT-640202628-ITXX** 6 x 5 x 14 Centrifugal Pump Mechanical Seal 14” 640202628ITA0
BT-640202826-ITXX** 8 x 6 x 11 Centrifugal Pump Mechanical Seal 11” 640202826ITA0
BT-640202925-ITXX** 8 x 6 x 14 Centrifugal Pump Mechanical Seal 14” 640202925ITA0
BT-640203121-ITXX** 10 x 8 x 14 Centrifugal Pump Mechanical Seal 14” 640203121ITA0





We could produce and supply spare parts as below

P/N FOR YOUR REFERNECCE.

Gasket, casing : 10399-46-1, 648403012, TP-P25HSN, 17648, 13C-250-HGA, 052137100, P25HG, H10399-46-1

Fluid end gasket kit: 10399-46-1A, 641101076, P25FEGK, 17690, 31-250-FEGK, 052145400, P25FEGK

Nut, casing: 3932-61, 648402014, TP-P25HSN, 17649, 15-250-HSN, WWHS1S3HA, P25HSN, H2507-3

Stud, casing: 3862-76, 648401115, 5327-034, WWJ11S800, H3932-61

Seal, impeller: 19110-72, 64845082, TP-P25IMS, 5530-0032, 12B-250-ISOR, P25IMS, WWB032V35

Washer, impeller - - 7300239 - - - - - -

Bolt, impeller lock - - 7415648 - - - - - -

Stuffing box, mech.seal: 22223-01-30, 641116157, TP-P25SB/MS, 17658-002, 11-250-SBPG, P25SB/MS, 052136410

Stuffing box, packed: 20614-01-30, 643365042, TP-P25SB/PK, 17657-002, 11C-250-SBMSS, P25SB/PK, 052144910

Bolt, stuffing box: 3861-117, 3861-117, 648401016, WWG31H187, H3861-117

Grease fitting: 19368-01, 601499403 - - - - - -

Gland assy., packing: 20622A, 641103338, TP-25PG, 17659, 9-250-GPA, P25PG, 052136500, H20622A

Seal, mechanical: 22451-1, H22451-1A, 648414308, WVBUF9000

Packing, Shaft : 25014-04M-B, 661007005, 052153500, H8264-24-9A

Bolt assy,gland: B3701A, 601102494, 052137280, H3701A

Shaft: 20612-02-33, 646490557, TP-25SHFT, 17665-001, 7-250-416SS, P25SHFT, 052133900, H20612-02-33

Sleeve, shaft, M.S.:20943-21, 641102182 - - - - - -

Sleeve, shaft, Pack: 20613-21G-7A, H20613-21G-7A, 641102181, TP-P25SHSLVC, 17666-002, 11-250SBPG, P25SHSLVC, 052144200, H20613-21G-7A

Key, shaft: 4372-5-21,H4372-5-21,601212392,WWW00A004,H4372-5-21

Seal, shaft sleeve: 23444-01-72,23444-01-72,648415156 - - - - - -

Deflector assembly: 22210-1A, 22210-1A, 641116108, TP-P25SRW, 17691, 23-250-SRW-U, P25SRW, WWW003003, H22210-1A

Frame, grease lubricated: 20618-12-1, H17444, 644302499, TP-25PED, 17670, 1-250-PED, P25PED, 052136610, H17444

Plug, oil drain : 8505-05, 601474737

Bolt, casing jack: 2538-1H, H2538-1H, 2538-1H, WWG31S28F, H2538

Plug, Frame Drain: 8505-05, 601474737

Cover, inboard bearing: 20626(A), H17950, 644303109, TP-25IBBC, 17671, 4A-250-BO, P25IBBC, 052136710

Gasket, I.B.Brg. Cover: 20625, 648408706, TP-P25IBBCG, 17672, 3A-250-BCG, P25IBBCG, 052137400, H20625

Power end gasket kit: 20625A, H20625A, 641103353, TP-P25PEGK, 17692, 32-250-PEGK, P25PEGK, 052145500

Oil seal, I.B.Brg. Cover: 20619-01, 648408300, TP-P25IBBOS, 5550-005, 5B-250-OGSI, P25IBBOS, WWW003002

Bolt, I.B.Brg. Cover : 3861-1, H3861-1, 601407505, 13669, 6-178-BCBNA, P78BCBA, WWWG31H1H7, H3861-1

Nut, I.B.Brg.Cover: 3932-2, 601408560

ExclusionSeal,I.B.Brg.Cvr.: 20620-01, 648408409, TP-P251BBES, 5550-006, 5C-250-SEXI, P251BBES, WWW003001

Grease fitting: 21641-01, 661010033

Bearing, inboard: 20615-1, H20615-1, 661009010, TP-P25IBBRG, 50913-001, 4B-250-BI, P25IBBRG, WWENT5313

Housing, O.B.bearing: 20624-01-01, 644308504, TP-P25OBBH, 17673, 4C-250-BH, P25OBBH, 052136810

Seal, O.B.Brg. housing: 7496-253, H7496-253, 648402295, TP-P25OBBHS, 5530-254, 32-250-BHOR, P25OBBHS, WWB254H30, H7496-253

Bolts, O.B.Brg. housing: 3861-138, H3861-138, 648401057, WWG31H1H7

Nut, O.B.Brg.housing jam: 3932-62, H3932-62, 658404702, WWJ31H800

Cover,O.B.Bearing: 20617-01-01, 641103296, 052136910, H20617-01-01

Grease zerk, O.B.Brg.Cvr.: 19368-01, 661010020 - - - - - -

O-ring, O.B.Brg.Cover: 7496-26, H7496-26, 072200017, TP-P25OBBCS, 5530-246, 3B-250-BBLNA, P25OBBCS, WWB248P41

Oil seal, O.B.Brg.Cover: 20619-02, TP-P25OBBOS, 648408359, 5550-007, 5A-250-OGSO, P25OBBOS

Bolt, O.B.Brg.Cover: 3861-139,H3861-139,648401081,WWG31D107,H3861-139

Bearing, O.B.: 20616-1, 20616-1S, 648408201S, TP-P25OBBRG, 50912-001, 2A-250-BC, P25OBBRG, WWESL7311, H20616-1

Lockwasher,O.B.Bearing: 6124-4, H6124-4, 648402105, WV00W1100

Locknut, O.B.Bearing: 6123-4, H6123-4, 648402055, WV00N1100

Bearing Lock nut kit: 6123-4A, H6123-4A, 641100409, TP-P25BLNK, 17689, 4E-250-BBLNA, P25BLNK, 052145700



Casing, 3×2×13 19203-01-30A H19203-01-30A 641101753 TP-P25D233H 1769-002 142523HAS P25D233H 052134000 H19203-01-30A

Casing, 4×3×13 19205-01-30A H19205-01-30A 641101902 TP-P25D343H 17680-002 142534HAS P25D343H 052134100 H19205-01-30A

Casing, 5×4×14 19222-01-30A H19222-01-30A 641102058 TP-P25D454H 17681-002 N/A P25D454H 052134200 H19222-01-30A

Casing, 6×5×11 19122-01-30A H19122-01-30A 641101456 TP-P25D454H 17682-002 142556HAS-11 P25D454H 052134300 H19122-01-30A

Casing, 6×5×14 19123-01-30A H19123-01-30A 641101605 TP-P25D564H 17683-002 142556HAS-14 P25D564H 052134400 H19123-01-30A

Casing, 8×6×11 19763-01-30A H19763-01-30A 641102157 TP-P25D681H 17684-002 N/A P25D681H 052134500 H19763-01-30A

Casing, 8×6×14 19117-01-30A H19117-01-30A 641101308 TP-P25D684H 17685-002 142568HAS P25D684H 052134600 H19117-01-30A

Casing, 10×8×14 20937-01-30A H20937-01-30A 641102322 - - - - - -





Impeller, 3×2×13 19204-XX-30 H19204-XX-30 641215603 TP-P25D233MRxxx 17650-XX-112 1225231XX P25D233MRxxx - -

Impeller, 4×3×13 19206-XX-30 h19206-XX-30 641217005 TP-P25D343MRxxx 17651-XX-112 1225341XX P25D343MRxxx - -

Impeller, 5×4×14 19224-XX-30 - 641217831 TP-P25D454MRxxx 17652-XX-112 1225451XX P25D454MRxxx - -

Impeller, 6×5×11 19121-XX-30 - 641211602 TP-P25D561MRxxx 17653-XX-112 1225561XX P25D561MRxxx - -

Impeller, 6×5×14 19121-XX-30 - 641212105 TP-P25D564MRxxx 17654-XX-112 1225561XX P25D564MRxxx - -

Impeller, 8×6×11 19121-XX-30 - 641211602 TP-P25D561MRxxx 17655-XX-112 1225661XX P25D561MRxxx - -

Impeller, 8×6×14 19116-XX-30 - 641209903 TP-P25D584MRxxx 17656-XX-112 1225681XX P25D584MRxxx - -

Impeller, 10×8×14 21867-XX-30 - 641221007 - - - - - -
