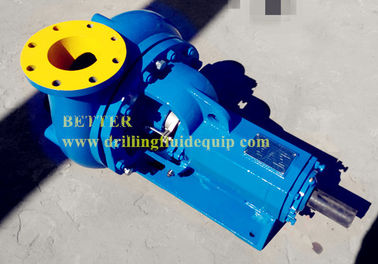

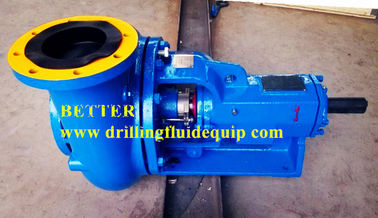

BETTER 250 Oilfield Centrifugal Pump 5x6x14 Mission Halco 2500 style Wear Pad Semi Open Impeller Hard Iron Blue Painting
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | MISSION HALCO 2500 |
| Minimum Order Quantity | 1 SET |
| Price | USD2500.00-2600.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Hard Iron | Structure | Centrifugal |
|---|---|---|---|
| Impeller | 14" Semi Open | Discharge | 5" |
| Suction | 6" | Paiting Color | Blue |
Product Description
BETTER now offering:
Mission Magnum Style
Mission Sandmaster Hydraulic Drive Style
Mission Spacesaver Close Coupled Style
Mission Magnum XP/XL Style
MCM 250 Style Centrifugal Pump
SPD Mud Hog 2.5 Style
Mission Vertical Style
Shear Pump
Centrifugal Pump Package Skid
O.E.M. Pump Interchangeable Spares
All BETTER pumps are build using the excellent quality components, and its parts are 100& identical in all dimensions to Mission™ Magnum™, 2500 supreme™, Halco™ 2500, SPD™ Baker™ Mud Hog™ 2.5, MCM™ 250 series, Double life™ 250, Derick Premium™ 250, XBSY™/Victory/Westpetro, TSC™/HCP, Mattco™, Cobra Pump, Harrisburg™, and Dragon™ 250, etc.
Common Application
•Mix and transfer abrasive fluids for drilling industry;
•Applied in Barite, ferric oxide, mineral oil, base drilling mud, glass fibers, sugar processing, Ash or coal conveyers, cement, mine de-watering, lime slurries, kaolin clay, crystalline forms;
•Best choice for solid control system or mud cleaning system for land and offshore drilling rigs;
•Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x14, 10x8x14 to 14x12x22. Bare pumps, horizontal packages, and overhead belt drive type are available. Explosion-proof electric motors are available up to 350HP, in 1150, 1450, 1750 RPM at 50Hz or 60Hz.
Complete Bare Pump w/o Motor
| BETTER MODEL | SIZE | NAME | SEALING TYPE | IMPELLER SIZE | PART NO. |
| BT-640202123-ITXX** | 3 x 2 x 13 | Centrifugal Pump | Mechanical Seal | 13” | 640202123ITA0 |
| BT-640202222-ITXX** | 4 x 3 x 13 | Centrifugal Pump | Mechanical Seal | 13” | 640202222ITA0 |
| BT-640202321-ITXX** | 5 x 4 x 14 | Centrifugal Pump | Mechanical Seal | 14” | 640202321ITA0 |
| BT-640202529-ITXX** | 6 x 5 x 11 | Centrifugal Pump | Mechanical Seal | 11” | 640202529ITA0 |
| BT-640202628-ITXX** | 6 x 5 x 14 | Centrifugal Pump | Mechanical Seal | 14” | 640202628ITA0 |
| BT-640202826-ITXX** | 8 x 6 x 11 | Centrifugal Pump | Mechanical Seal | 11” | 640202826ITA0 |
| BT-640202925-ITXX** | 8 x 6 x 14 | Centrifugal Pump | Mechanical Seal | 14” | 640202925ITA0 |
| BT-640203121-ITXX** | 10 x 8 x 14 | Centrifugal Pump | Mechanical Seal | 14” | 640203121ITA0 |
Mission Pump Repair Kit we can supply includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
(part no.: 19203 ,19205,19222,19122,19123,19763,19117)
MCM 250 Shaft Sleeve Repair Kit we can supply includes Shaft Sleeve, Impeller Seal and Shaft Sleeve Seal
(Part no.:641102182)
Halco 2500 Centrifugal Pump Oil Seal Kits we can supply includes inboard Exclusion Seal, Inboard Oil Seal,and Outboard Oil Seal (Part no.:641103312,3002900/ 3003000/ 3004200, P25OSK, 20619A, 17693, 33-250-GSK, 052149000, H20619A)
We also cans supply MUD HOG 2.5 Pump Fluid end Gasket kits and Power end Gasket kits that includes Casing Gasket, Impeller Seal, Shaft Sleeve Seal and inboard Bearing Gasket, Outboard Bearing Housing Seal, Outboard Bearing cover Seal
(Part no.:3000200/ 3000700/ 3002100, P25FEGK, 10399-46-1A, 052137100, 641101076, P25FEGK, 17690, 31-250-FEGK, 052145400, P25FEGK, , 641103353,3002800/ 3003700/ 3004100, 20625A, 17692, 32-250-PEGK, 52137400, H20625A
Bearing Lock nut kit: 6123-4A, H6123-4A, 641100409, TP-P25BLNK, 17689, 4E-250-BBLNA, P25BLNK, 052145700
Gland Bolt Assembly: P25GABA, 17686, 10-250-GABA, 720600, 052137280, H3701A, 601102494, 052137280
Impeller Seal O-Ring: P25IMS, 19110-72, 5530-0032, 12B-250-ISOR, 721480, WWB032V35, H19110-72
Gland assy., packing: 641103338, 17659, 9-250-GPA, P25PG, 052136500, H20622A, 720590, 052136500
Deflector assembly: 22210-1A, 22210-1A, 641116108, 17691, 23-250-SRW-U, P25SRW, WWW003003, H22210-1A
Oil seal, I.B.Brg. Cover: 20619-01, 648408300, TP-P25IBBOS, 5550-005, 5B-250-OGSI, P25IBBOS, WWW003002
Inboard Bearing Cover: P25IBBC, 20626A, 17671, 2B-250-BC, 720780, 052136710, H17950,644303109, 4A-250-BO,
Inboard Bearing Cover Gasket: P25IBBCG, 20625, 17672, 3A-250-BCG, 721520, 052137400, H20625, 648408706
Inboard Exclusion Oil Seal: P251BBES, 20620-01, 5550-006, 5C-250-SEXI, 720370, WWW003001, H20620-01,648408409
Inboard Bearing: P25IBBRG, 20615-1, 50913-001, 4B-250-BI, 720300, WWENT5313, H20615-1,661009010, 50913-001
Outboard Bearing Housing: P25OBBH, 20624-01-01, 17673, 4C-250-BH, 720800, 052136810, 644308504
Outboard Bearing Housing O-ring: P25OBBHS, 7496-253, 5530-254, 4D-250-BHOR, 721510, WWB254H30, H7496-253,648402295,32-250-BHOR
Outboard Bearing Cover: P25OBBC, 20617A, 17866, 2A-250-BC, 720790, 052136910, H20617-01-01,641103296
Outboard Bearing Cover O-ring: P25OBBCS, 7496-26, 5530-246, 3B-250-BCOR, 720390, WWB248P41, H7496-26,3B-250-BBLNA
Outboard Bearing Cover Oil Seal: P25OBBOS, 20619-02, 5550-007, 5A-250-OGSO, 720390,648408359, 5550-007, 5A-250-OGSO
Outboard Bearing: P25OBBRG, 20616-1S, 50912-001, 4A-250-BO, 720320, WWESK7311, H20616-1,648408201S,50912-001, 2A-250-BC
Please don't hesitate to contact our sales if you are interested in any of our products.
Sales Assistant
Att.: Mike Lee
BETTER Drilling Fluid Equipment Industrial Limited
http://www.drillingfluidsolution.com
sales[a]drillingfluidequip.com
WhatsApp/wechat:18764068509
