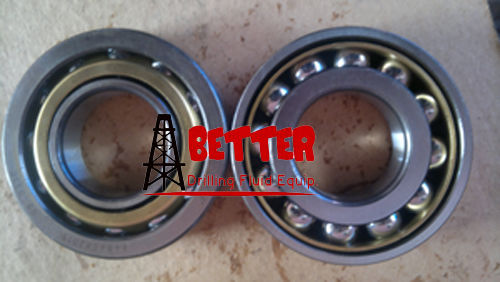

BETTER Halco 2500 Centrifugal Pump Inboard Outboard Bearings Roller P/N 661009010 648408201S 20616-1S 20615-1

Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number Halco 2500
Minimum Order Quantity 1 SET
Price USD125.00-175.00 PER SET
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Roller Postion Inboard Bearing, Outboard Bearing
Material Bearing Steel, And Ss Ball
Leave a Message
Product Description
Bearing, inboard 20615-1 H20615-1 661009010 TP-P25IBBRG 50913-001 4B-250-BI P25IBBRG WWENT5313 H20615-1
Bearing, O.B. 20616-1 20616-1S 648408201S TP-P25OBBRG 50912-001 2A-250-BC P25OBBRG WWESL7311 H20616-1

ROLLER BEARING
BETTER Halco 2500 Centrifugal Pump Inboard Outboard Bearings Roller P/N 661009010 648408201S 20616-1S 20615-1 0

All BETTER pumps are built using the excellent quality components, and its parts are 100% identical in all dimensions to Mission™ Magnum™, 2500 Supreme™, Halco™ 2500, Forum™ Baker™ Mud Hog™, MCM™, Double Life™ 250, Derick Premium™ 250, XBSY™/Victory/Westpetro, TSC™/HCP, Mattco™, Cobra Pump, Harrisburg™, and Dragon™, and etc. Including casing assy., open impeller, semi-open impeller, stuffing box, wear pad, mechanical seal, packing set with lantern ring, shaft, ceramic coating shaft sleeve, shaft packing, power end gaskets, fluid end gaskets, oil seal kits, inboard bearing, outboard bearing, bearing covers, housing, etc.

We could produce and supply the equivalent spare parts as below. The given part no. is for confirmation.

1A H10399-46-1 GASKET, CASING FIBER

1B H3932-61 NUT, CASING STUDS STAINLESS, 3/4-10 HEX HEAD

1C H2507-3 STUD, CASING STEEL, 3/4-10 X 3-1/4" LONG

1CA H3862-76 STUD, CASING STEEL, 3/4-10 X 3" LONG

2A H19110-72 SEAL, IMPELLER

3 H22223-01-30A STUFFING BOX COVER, SEAL HARD IRON

3 H20614-01-30A STUFFING BOX COVER, PACKED HARD IRON

3A H3861-117 BOLT, STUFFING BOX STEEL, 1/2-13 X 1-1/4"

4 H20622A GLAND SET 300 STAINLESS STEEL

5 H8264-24-1A PACKING 5 RINGS & LANTERN RING GRAPHITE ASBESTOS

5A H2537-24A PACKING 3 RINGS FOR SEAL GRAPHITE ASBESTOS

6 H3701A BOLT, GLAND ASSEMBLY 300 STAINLESS STEEL

7 H20612-02-33 SHAFT 4140

7A H20613-21G-7A SLEEVE, SHAFT 416 SS, CERAMIC COATED

7B H4372-5-21 KEY, COUPLING END 416 STAINLESS STEEL

7C H7496-236 SEAL, SHAFT SLEEVE BUNA-N

8 H22210-1 DEFLECTOR RUBBER

9 H17444 FRAME CAST IRON

9A H2538 JACK BOLTS STAINLESS STEEL

10A H17950 COVER, INBOARD BEARING CAST IRON

10B H20625 GASKET, INBOARD BRG. COVER ASBESTOS

10C H20619-01 OIL SEAL, INBOARD BRG. COVER BUNA-N

10D H3861-1 BOLT-INBOARD, BEARING COVER STEEL, 1/2"-13 X 1-1/2" LONG

10F H20620-01 EXCLUSION SEAL, INBD. BRG. BUNA-N

11 H20615-1 BEARING, INBOARD FAFNIR 5313 WBR., MRC5313

12 H20624-01-01 HOUSING, OUTBOARD BEARING CAST IRON

12A H7496-253 SEAL, BEARING HOUSING BUNA-N

12B H3861-138 BOLTS, BEARING HOUSING STEEL, 1/2"-13 X 1-1/2" LONG

12C H3932-62 NUTS, BEARING HOUSING 300 S.S.1/2-13 JAM NUT

13 H20617-01-01 COVER, OUTBOARD BEARING DUCTILE IRON

13B H7496-26 SEAL, OUTBOARD BRG. COVER BUNA-N

13C H20619-02 OIL SEAL, OUTBOARD BRG. CVR. BUNA-N

13D H3861-139 BOLT, OUTBOARD BRG. COVER STEEL, 3/8-16 X 1" LONG

14 H20616-1 BEARING, OUTBOARD FAFNIR 7311 PW-BR-SU, MR731

14A H6124-4 LOCK WASHER, BEARING SKF-W1" (STEEL)

14B H6123-4 LOCK NUT, BEARING SKF-N1" (STEEL)

17 H22451-1A MECHANICAL SEAL TUNGSTEN CARBIDE

H10399-46-1A FLUID END GASKET KIT

H20625A POWER END GAKET KIT

H20619A GREASE SEAL KIT

H6123-4A LOCKNUT KIT

H20952 IMPELLER REMOVAL WRENCH
