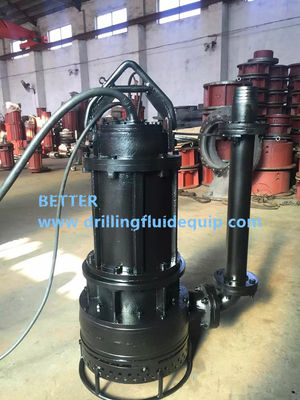

BETTER Heavy Duty Submersible Slurry Pump For Mining Dredging Slurring

ZJQ type submersible slurry pump is a kind of pump connected with motor directly, with the feature of advanced structure, wide flow channel, excellent sewage capacity and good corrosion resistance, which is mainly used in metallurgy, mining, power plants, and other slurry liquid removal and transportation.

ZJQ submersible slurry pump is designed basing on the introduced foreign technology, fluid end parts (including casing, impeller, wear plate, agitator) are made by wear-resisting high chrome material which extends the pump service life. The increased paddle wheel (agitator) in the bottom of the main impeller can suspend the slurry to prevent clogging. Unique sealing device can effectively balance the pressure of mechanical seal inside and outside. Motor owns overheat protection and water detection to ensure the motor to operate safely and steady in the long-term under bad working conditions.

Feature:

·         AC Electric Motor 380V/50HZ 3Phase, or 460V/60HZ

·         Medium temperature should not exceed 40℃, no flammable and explosive gas

·         Max. density grey sediment

·         for 45% , mineral sediment for 60%.

·         Max. depth submerged should not exceed 20M, and not less than 1M.

·         Vertical and continuous operation

·         Class H Insulating Grade

Parameter scope:

·         Capacity range: 30~1450m3/h

·         Head range: 15~95m

·         Max. dia. of particle should not exceed 92MM.

Please don't hesitate to contact our sales if you are interested in any of our products.
