Mission Pump Impeller, 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14,10x8x14, High Quality Hard iron, 304SS,316SS, High Chrome
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | Baker Mud Hog 2.5 |
| Minimum Order Quantity | 1 SET |
| Price | USD1000.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Centrifugal Pump | Structure | Single-stage Pump |
|---|---|---|---|
| Usage | Slurry | Power | Electric |
| Standard Or Nonstandard | Standard | Fuel | Motor |
| Pressure | Low Pressure | Application | Sewage |
| Material | Hard Iron, 304SS,316SS, High Chrome | Test | Balance Test |
| Technich | Casting |
Product Description
Superior Quality Impellers used for Heavy duty Centrifugal Pumps Mission 2500 supreme, Halco, MCM, Doublelife, Mud Hog
BETTER could provides a wide range of open type impeller and semi open impeller for heavy duty centrifugal pumps from 3 x 2 x 13 to 10 x8 x 14. , we have improved the original design with hydraulic hole on impeller position, which have prolonged the impellers' life greatly.
We have ductile iron, hard iron, high chrome iron material for option, if the quantity is ok, we accept to the customized impeller in bronze, stainless steel and other special material not popular used.
Parameters
| Impeller,3×2×13 | 19204-XX-30 | H19204-XX-30 | 641215603 | TP-P25D233MRxxx | 17650-XX-112 | 1225231XX | P25D233MRxxx | - | - |
| Impeller,4×3×13 | 19206-XX-30 | h19206-XX-30 | 641217005 | TP-P25D343MRxxx | 17651-XX-112 | 1225341XX | P25D343MRxxx | - | - |
| Impeller,5×4×14 | 19224-XX-30 | - | 641217831 | TP-P25D454MRxxx | 17652-XX-112 | 1225451XX | P25D454MRxxx | - | - |
| Impeller,6×5×11 | 19121-XX-30 | - | 641211602 | TP-P25D561MRxxx | 17653-XX-112 | 1225561XX | P25D561MRxxx | - | - |
| Impeller, 6×5×14 | 19121-XX-30 | - | 641212105 | TP-P25D564MRxxx | 17654-XX-112 | 1225561XX | P25D564MRxxx | - | - |
| Impeller, 8×6×11 | 19121-XX-30 | - | 641211602 | TP-P25D561MRxxx | 17655-XX-112 | 1225661XX | P25D561MRxxx | - | - |
| Impeller,8×6×14 | 19116-XX-30 | - | 641209903 | TP-P25D584MRxxx | 17656-XX-112 | 1225681XX | P25D584MRxxx | - | - |
| Impeller,10×8×14 | 21867-XX-30 | - | 641221007 | - | - | - | - | - | - |
We can supply the popular brand replaceable impellers, the below part po. for your confirmation the interchangeability.
- 250-2X3X13 Impeller 122523IXXX
- 250-3X4X13 Impeller 122534IXXX
- 250-4X5X14 Impeller 122545IXXX
- 250-5X6X11 Impeller 122556IXXX
- 250-5X6X14 Impeller 122564XXX
- 250-5X6X11 Impeller 1225681XXX
- 250-6X8X14 Impeller 122568IXXX
- 250-2X3X13 Impeller P25D233MRXXX
- 250-3X4X13 Impeller P25D343MRXXX
- 250-4X5X14 Impeller P25D454MRXXX
- 250-5X6X11 Impeller P25D561MRXXX P25561DR10SO
- 250-5X6X14 Impeller P25D564MRXXX
- 250-5X6X11 Impeller P25D681MRXXX
- 250-6X8X14 Impeller P25D684MRXXX
*Impeller, 3 x 2 x 13, 2.5 centrifugal pump 05213571x
*Impeller, 4 x 3 x 13, 2.5 centrifugal pump 05213581x
*Impeller, 5 x 4 x 14, 2.5 centrifugal pump 05213591x
*Impeller, 6 x 5/8 x 6 x 11, 2.5 centrifugal pump 05213601x
*Impeller, 6 x 5 x 14, 2.5 centrifugal pump 05213621x
*Impeller, 8 x 6 x 14, 2.5 centrifugal pump 05213631x
Impeller 2″x3″x13″ Hard Iron, WITH HOLE: P25D233MRxxx, 19204-XX-30, 17650-XX-112, 1225231XX, 05213571X, H2521-90-30
Impeller 3″x4″x13″ Hard Iron, WITH HOLE: P25D343MRxxx, 19206-XX-30, 17651-XX-112, 1225341-XX, 05213581X, H2522-90-30
Impeller 4″x5″x14″ Hard Iron, WITH HOLE: P25D454MRxxx, 19224-XX-30, 17652-XX-112, 1225451-XXX, 05213591X, H2525AO-30
Impeller 6″x5″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225561-XXX, 05213601X, H2524-70-30
Impeller 6″x5″x14″ Hard Iron, WITH HOLE: P25D564MRxxx, 19121-XX-30, 17654-XX-112, 1225561-XXX, 05213621, H2524-AO-30
Impeller 6″x8″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225661-XXX, 05213601X, H2524-70-30
Impeller 6″x8″x14″ Hard Iron, WITH HOLE: P25D684MRxxx, 19116-XX-30, 17656-XX-112, 1125681-XXX, 05213631X, H2525-A)-30
Impeller, 14x12 Clockwise Rot.22" 24024-X0-HS 24024-X0-AY 662005003 662005010
Impeller, 12x10 Clockwise Rot.23" 25010-Y0-30 25010-X0-AY 662005002 662005024
Impeller, 8x6 Clockwise Rot.18" 2592-T0-30 2592-T0-AY 662005018 Impeller, 14x12 Clockwise Rot.22" 24024-X0-HS 24024-X0-AY 662005003 662005010
Impeller, 12x10 Clockwise Rot.23" 25010-Y0-30 25010-X0-AY 662005002 662005024
Impeller, 8x6 Clockwise Rot.18" 2592-T0-30 2592-T0-AY 662005018
19204-XX-30 19204-XX-AZ 19204-XX-04 19204-XX-13 Impeller, 3x2x13 641215603
19206-XX-30 19206-XX-AZ 19206-XX-04 19206-XX-13 Impeller, 4x3x13 641217005
19224-XX-30 19224-XX-AZ 19224-XX-04 19224-XX-13 Impeller, 5x4x14 641217831
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x11 641211602
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x14 641212105
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 8x6x11 641211602
19116-XX-30 19116-XX-AZ 19116-XX-04 19116-XX-13 Impeller, 8x6x14 641209903
21867-XX-30 21867-XX-AZ 21867-XX-04 21867-XX-13 Impeller, 10x8x14 641221007

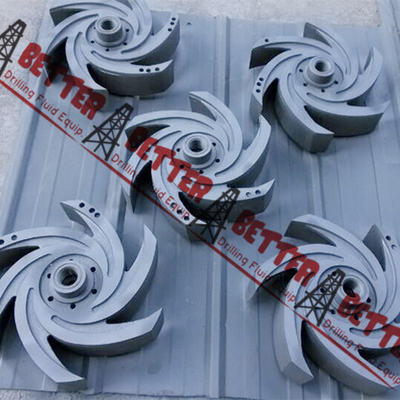

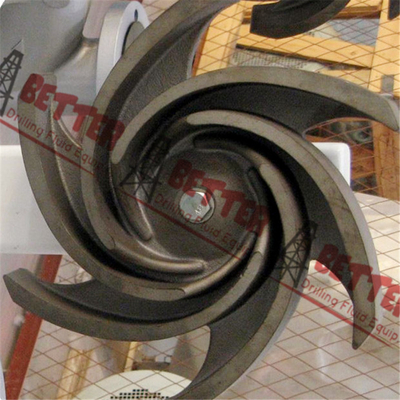

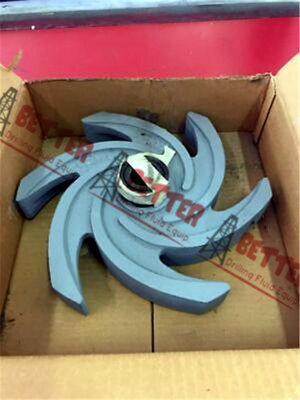

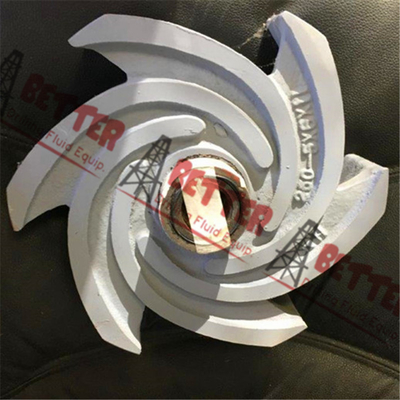

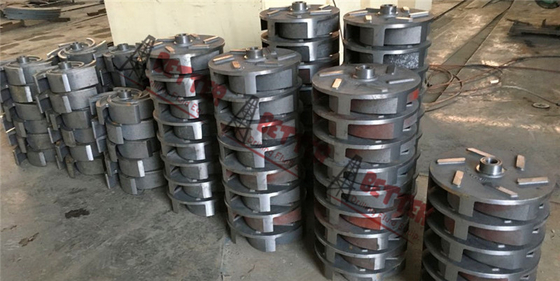

Products show
- 250-3X4X13 Impeller 122534IXXX
- 250-4X5X14 Impeller 122545IXXX
- 250-5X6X11 Impeller 122556IXXX
- 250-5X6X14 Impeller 122564XXX
- 250-5X6X11 Impeller 1225681XXX
- 250-6X8X14 Impeller 122568IXXX
- 250-2X3X13 Impeller P25D233MRXXX
- 250-3X4X13 Impeller P25D343MRXXX
- 250-4X5X14 Impeller P25D454MRXXX
- 250-5X6X11 Impeller P25D561MRXXX P25561DR10SO
- 250-5X6X14 Impeller P25D564MRXXX
- 250-5X6X11 Impeller P25D681MRXXX
- 250-6X8X14 Impeller P25D684MRXXX
*Impeller, 3 x 2 x 13, 2.5 centrifugal pump 05213571x
*Impeller, 4 x 3 x 13, 2.5 centrifugal pump 05213581x
*Impeller, 5 x 4 x 14, 2.5 centrifugal pump 05213591x
*Impeller, 6 x 5/8 x 6 x 11, 2.5 centrifugal pump 05213601x
*Impeller, 6 x 5 x 14, 2.5 centrifugal pump 05213621x
*Impeller, 8 x 6 x 14, 2.5 centrifugal pump 05213631x
Impeller 2″x3″x13″ Hard Iron, WITH HOLE: P25D233MRxxx, 19204-XX-30, 17650-XX-112, 1225231XX, 05213571X, H2521-90-30
Impeller 3″x4″x13″ Hard Iron, WITH HOLE: P25D343MRxxx, 19206-XX-30, 17651-XX-112, 1225341-XX, 05213581X, H2522-90-30
Impeller 4″x5″x14″ Hard Iron, WITH HOLE: P25D454MRxxx, 19224-XX-30, 17652-XX-112, 1225451-XXX, 05213591X, H2525AO-30
Impeller 6″x5″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225561-XXX, 05213601X, H2524-70-30
Impeller 6″x5″x14″ Hard Iron, WITH HOLE: P25D564MRxxx, 19121-XX-30, 17654-XX-112, 1225561-XXX, 05213621, H2524-AO-30
Impeller 6″x8″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225661-XXX, 05213601X, H2524-70-30
Impeller 6″x8″x14″ Hard Iron, WITH HOLE: P25D684MRxxx, 19116-XX-30, 17656-XX-112, 1125681-XXX, 05213631X, H2525-A)-30
Impeller, 14x12 Clockwise Rot.22" 24024-X0-HS 24024-X0-AY 662005003 662005010
Impeller, 12x10 Clockwise Rot.23" 25010-Y0-30 25010-X0-AY 662005002 662005024
Impeller, 8x6 Clockwise Rot.18" 2592-T0-30 2592-T0-AY 662005018 Impeller, 14x12 Clockwise Rot.22" 24024-X0-HS 24024-X0-AY 662005003 662005010
Impeller, 12x10 Clockwise Rot.23" 25010-Y0-30 25010-X0-AY 662005002 662005024
Impeller, 8x6 Clockwise Rot.18" 2592-T0-30 2592-T0-AY 662005018
19204-XX-30 19204-XX-AZ 19204-XX-04 19204-XX-13 Impeller, 3x2x13 641215603
19206-XX-30 19206-XX-AZ 19206-XX-04 19206-XX-13 Impeller, 4x3x13 641217005
19224-XX-30 19224-XX-AZ 19224-XX-04 19224-XX-13 Impeller, 5x4x14 641217831
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x11 641211602
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x14 641212105
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 8x6x11 641211602
19116-XX-30 19116-XX-AZ 19116-XX-04 19116-XX-13 Impeller, 8x6x14 641209903
21867-XX-30 21867-XX-AZ 21867-XX-04 21867-XX-13 Impeller, 10x8x14 641221007
