Harrisburg 250 Pump Impeller, 1225231XX 1225341XX 1225451XX 1225561XX 1225561XX 1225661XX 1225681XX
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTheory | Centrifugal Pump | Structure | Single-stage Pump |
---|---|---|---|
Usage | Slurry | Power | Electric |
Standard Or Nonstandard | Standard | Fuel | Motor |
Pressure | Low Pressure | Application | Sewage |
Material | Hard Iron, 304SS,316SS, High Chrome | Test | Balance Test |
Technich | Casting |
Impeller,3×2×13 | 19204-XX-30 | H19204-XX-30 | 641215603 | TP-P25D233MRxxx | 17650-XX-112 | 1225231XX | P25D233MRxxx | - | - |
Impeller,4×3×13 | 19206-XX-30 | h19206-XX-30 | 641217005 | TP-P25D343MRxxx | 17651-XX-112 | 1225341XX | P25D343MRxxx | - | - |
Impeller,5×4×14 | 19224-XX-30 | - | 641217831 | TP-P25D454MRxxx | 17652-XX-112 | 1225451XX | P25D454MRxxx | - | - |
Impeller,6×5×11 | 19121-XX-30 | - | 641211602 | TP-P25D561MRxxx | 17653-XX-112 | 1225561XX | P25D561MRxxx | - | - |
Impeller, 6×5×14 | 19121-XX-30 | - | 641212105 | TP-P25D564MRxxx | 17654-XX-112 | 1225561XX | P25D564MRxxx | - | - |
Impeller, 8×6×11 | 19121-XX-30 | - | 641211602 | TP-P25D561MRxxx | 17655-XX-112 | 1225661XX | P25D561MRxxx | - | - |
Impeller,8×6×14 | 19116-XX-30 | - | 641209903 | TP-P25D584MRxxx | 17656-XX-112 | 1225681XX | P25D584MRxxx | - | - |
Impeller,10×8×14 | 21867-XX-30 | - | 641221007 | - | - | - | - | - | - |

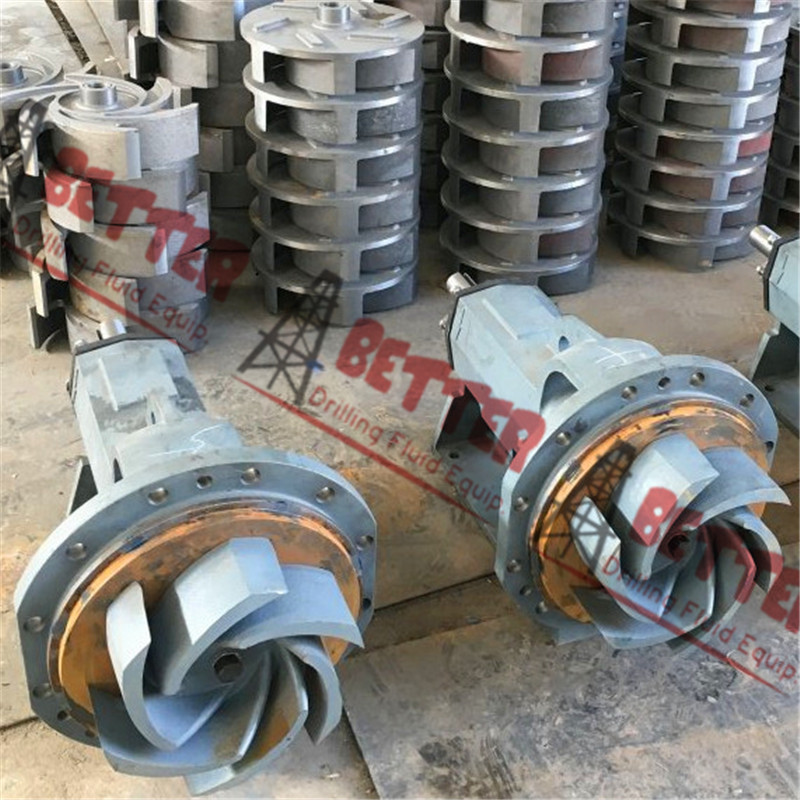

BETTER could provide a wide range of open type impeller and semi open impeller, casing, stuffing box, wear pad for all series and brands of heavy duty centrifugal pumps, we have improved the original design with hydraulic hole one impeller position, which have prolonged the impellers' life greatly.
We have ductile iron, hard iron, high chrome iron material for option, if the quantity is ok, we accept to the customized impeller in bronze, stainless steel and other special material not popular used.
All impellers are investment casted or resin-casted with pickling (acid washing) as our power-end parts, which are also available in cast steel in favor of ductile. All other sizes are resin-casted with pickling (acid washing) to ensure smooth surface finish. To ensure quality, we meticulously check threaded holes by fitting their bolts to ensure the threads are clean and clear. All casings are of course pressure tested and all impellers and dynamic balanced. Each casing is properly pressure tested prior to shipping.
It is our standard to deliver all of our impellers in foam molded packing in boxes. If your company has any specific packaging requirements, from branding of castings to box labels, please let us know.
We could produce and supply the equivalent spare parts as below. The given part no. is for confirmation.
A series of fluid end parts could be provided, interchangeable with Mission ® Magnum I, and 2500 Supreme ®, halco ®2500. The equivalent or same materials are selected to guarantee the unified quality.
Part No. # Processing# Description
10399-46-1 648403012 Gasket,casing
3932-61 648402014 Nut,casing
3862-76 648401115 Stud,casing
8505-04-01 86485503 Plug,Casing Drain
8505-04-01 646400507 Plug,flush line
19110-72 64845082 Seal,impeller
7300239 Washer Impeller
7415648 Bolt, impeller lock
22223-01-30 641116157 Stuffing box,mech.seal
20614-01-30 643365042 Stuffing box,packed
3861-117 648401016 Bolt,stuffing box
19368-01 601499403 Grease fitting
20622A 641103338 Gland assy,packing
22451-1 648414308 Seal,mechanical
25014-04M-B 661007005 Packing, Shaft
B3701A 601102494 Bolt assy,gland
20612-02-33 646490557 Shaft
20943-21 641102182 Sleeve,shaft,M.S.
20613-21G-7A 641102181 Sleeve,shaft,Pack
4372-5-21 601212392 Key,shaft
23444-01-72 648415156 Seal,shaft sleeve
22210-1A 641116108 Deflector assembly
20618-12-1 644302499 Frame, grease lubricated
8505-05 601474737 Plug, Frame Drain
8267-01 601473689 Breather
2538-1H Bolt, casing jack
20626 644303109 Cover, inboard bearing
20625 648408706 Gasket,I.B.Bearing.Cover
20619-01 648408300 Oil seal, I.B.Bearing.Cover
3861-1 601407505 Bolt, I.B.Bearing.Cover
3932-2 601408560 Nut, I.B.Bearing.Cover
19368-01 648411908 Grease fitting
20615-1 661009010 Bearing, Inboard
20624-01-01 644308504 Housing, O.B. bearing
7496-253 648402295 Seal, O.B.Bearing.housing
3861-139 648401057 Bolts, O.B.Bearing.housing
3932-62 658404702 Nuts, O.B.Bearing.housing Jam
20617-01-01 641103296 Cover,O.B.Bearing
19368-01 661010020 Grease Zerk
7496-26 072200017 O-ring, O.B.Bearing,Cover
20619-02 648408359 Oil seal, O.B.Bearing.Cover
3861-139 648401081 Bolt, O.B.Bearing.Cover
20616-1 648408201S Bearing, O.B.
6124-4 648402105 Lock washer, O.B.Bearing
6124-4 648402055 Locknut, O.B.Bearing
19203-01-30A 641101753 Casing assembly, 3x2x13
19205-01-30A 641101902 Casing assembly, 4x3x13
19222-01-30A 641102058 Casing assembly, 5x4x14
19122-01-30A 641101456 Casing assembly, 6x5x11
19123-01-30A 641101605 Casing assembly, 6x5x14
19763-01-30A 641102157 Casing assembly, 8x6x11
19117-01-30A 641101308 Casing assembly, 8x6x14
20937-01-30A 641102322 Casing assembly, 10x8x14
19204-XX-30 Impeller, 3x2x13
19206-XX-30 Impeller, 4x3x13
19224-XX-30 Impeller, 5x4x14
19121-XX-30 Impeller, 6x5x11
19121-XX-30 Impeller, 6x5x14
19121-XX-30 Impeller, 8x6x11
19116-A0-30 Impeller, 8x6x14
21867-XX-30 Impeller, 10x8x14
