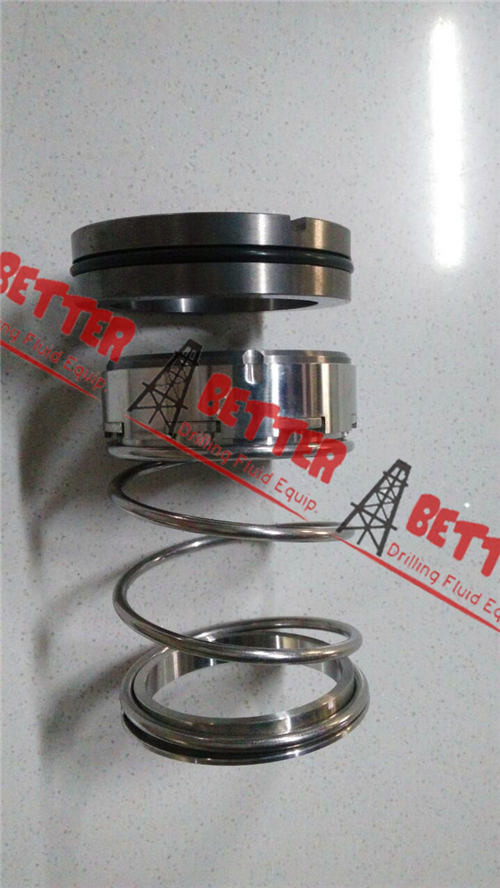

BETTER Doublelife DL 250 Centrifugal Pump and Casing Impeller Stuffing box Shaft sleeve
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | Double life DL 250 |
| Minimum Order Quantity | 1 SET |
| Price | usd1500.00 per set |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Centrifugal Pump | Structure | Single-stage Pump |
|---|---|---|---|
| Usage | Slurry | Power | 15kw-350kw |
| Standard Or Nonstandard | Standard | Fuel | Motor |
| Pressure | Low Pressure | Application | Charging Pump |
| Speed | 800-2000 Rpm | Color | Regular Blue, And Customized Color Acceptable |
Product Description
BETTER is proud to offer Doublelife DL 250 Centrifugal Pump replacement centrifugal pump and parts. BETTER series centrifugal sand pump are engineered for durable performance and pumping of various application, including:
Triplex mud pump supercharging, liner washing pump, general charging pump, mud hopper & mud gun, trip tank, degasser, water pumping and mud cleaner and shale shaker.
250 PUMP BILL OF MATERIAL
| Housing | Housing | Varies by size |
| Gasket, housing | 720700 | |
| Stud, housing | 720830 | |
| Nut, housing | 720860 | |
| Plug drain | 721651 | |
| Plug neck | 721651 | |
| impeller | Varies by size | |
| Bolt impeller | 721402 | |
| Flat washer, impeller | 721625 | |
| Bolt stuffing box | 721400 | |
| Lockwasher, stuffing box | 721401 | |
| Stuffing box, mechanical seal | 721350 | |
| Mechanical seal arrangement | Mechanical seal assembly | 721540 |
| Packing, back-up | 720441 | |
| Plug, cleanout | 721651 | |
| Packing arangement | Stuffing box, packed | 721340 |
| Packing king | 720470 | |
| Packing graphite | 720440 | |
| Packing Teflon | 720500 | |
| Grease fitting, packing | 721580 | |
| Shaft sleeve arrangement | Shaft sleeve, 416ssc | 721580 |
| Seal, shaft sleeve | 721490 | |
| Seal, impeller | 721480 | |
| Packing gland | 720590 | |
| Gland bolt assembly | 720600 | |
| Deflector | 721040 | |
| o-ring deflector | 721500 | |
| Pedestal | ||
| plug | ||
| Inboard bearing cover assembly | Cover, inboard bearing | 720780 |
| Seal, inboard bearing exclusion | 720370 | |
| Seal, inboard bearing cover | 720380 | |
| Gasket, inboard bearing cover | 720670 | |
| Bolt, inboard bearing cover | 720891 | |
| Flat washer, inboard bearing cover | 720091 | |
| Nut, inboard bearing cover | 720902 | |
| Grease fitting, inboard bearing | 720781 | |
| Grease fitting, seal | 720782 | |
| Bearing inboard | 720320 | |
| Shaft | 721227 | |
| Key, shaft | 721270 | |
| Outboard bearing housing assembly | Housing, outboard bearing | 720800 |
| Seal, outboard bearing housing | 721510 | |
| Bolt, adjustment, outboard bearing housing | 720890 | |
| Jam nut | 720970 | |
| Bolt, attachment, outboard bearing housing | 721400 | |
| Bearing outboard | 720320 | |
| Locknut, bearing | 721560 | |
| Lockwasher, bearing locknut | 721550 | |
| Outboard bearing cover assembly | Cover, outboard bearing | 720790 |
| Seal, shaft, outboard bearing cover | 720390 | |
| Grease fitting, outboard bearing | 721520 | |
| Bolt attach outboard bearing cover | 721671 |
