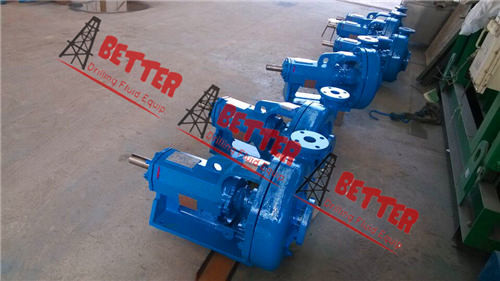

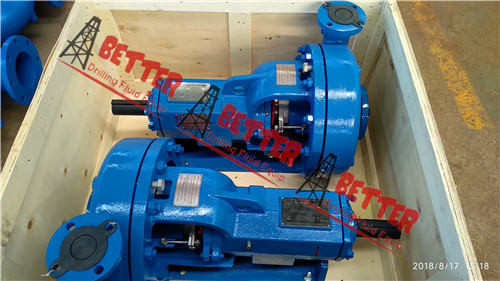

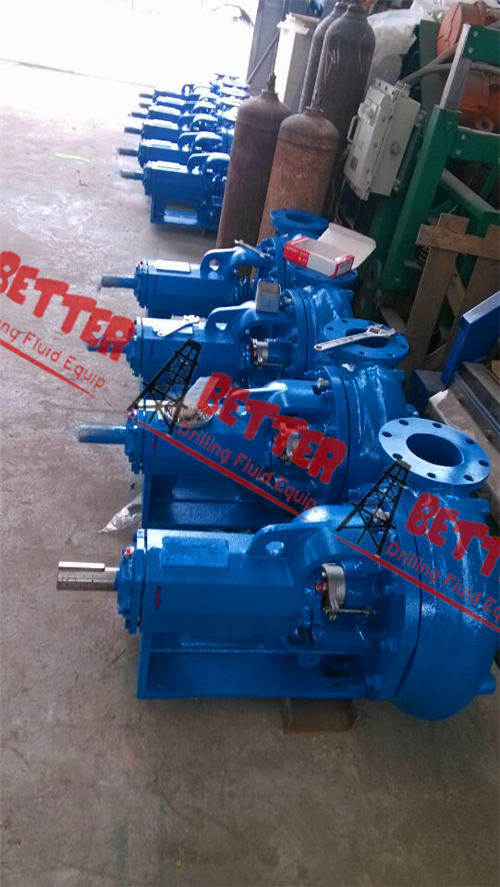

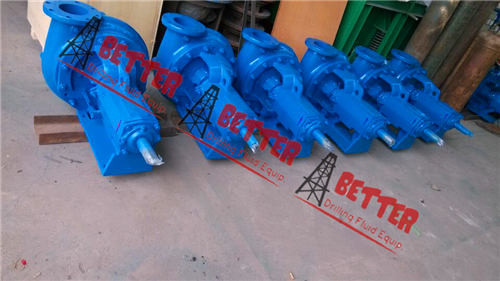

BETTER Dragon Premium 250 Centrifugal Pump and Casing Impeller Stuffing box Shaft sleeve
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | Dragon Premium 250 |
| Minimum Order Quantity | 1 SET |
| Price | usd1500.00 per set |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Centrifugal Pump | Structure | Single-stage Pump |
|---|---|---|---|
| Usage | Slurry | Power | 15kw-350kw |
| Standard Or Nonstandard | Standard | Fuel | Motor |
| Pressure | Low Pressure | Application | Charging Pump |
| Speed | 800-2000 Rpm | Color | Regular Blue, And Customized Color Acceptable |
Product Description
BETTER is proud to offer Dragon Premium 250 Centrifugal Pump replacement centrifugal pump and parts. BETTER series centrifugal sand pump are engineered for durable performance and pumping of various application, including:
Triplex mud pump supercharging, liner washing pump, general charging pump, mud hopper & mud gun, trip tank, degasser, water pumping and mud cleaner and shale shaker.
250 Pump Parts List Chart
| 1 | 250 Pedestal | 1 | 830-0120 |
| 2 | 250 Shaft | 1 | 830-0140 |
| 3 | 250 Outboard Bearing Housing | 1 | 830-0160 |
| 4 | 250 Packing Gland | 1 | 830-0180 |
| 5 | 250 Inboard Bearing (Double Row) | 1 | 830-0100 |
| 7 | 250 Inboard Bearing Cover | 1 | 830-0220 |
| 8 | 250 Outboard Bearing | 2 | 830-0110 |
| 9 | 250 Outboard Bearing Cover | 1 | 830-0240 |
| 10 | 250 Mechanical Seal {Tungsten-Silicone} | 1 | 811-6090 |
| 250 Graphite Packing | 1 | 811-7600 | |
| 11 | 250 Packing Gland Bolt Assy | 2 | 830-0200 |
| 12 | 250 Shaft Sleeve Stainless Steel | 1 | 830-0260 |
| 250 Shaft Sleeve Ceramic Coated | 1 | 830-0280 | |
| 13 | 250 Mechanical Seal Stuffing Box | 1 | 830-0320 |
| 250 Packing Stuffing Box | 1 | 830-0300 | |
| 14 | 2503X2X13 Impeller | 1 | 811-0720 |
| 2504X3X13 Impeller | 1 | 811-0760 | |
| 2505X4X14 Impeller | 1 | 811-0800 | |
| 250 6 X 5 X 11 and 8 X 6 X 11 Impeller | 1 | 811-0820 | |
| 2506X5X14 Impeller | 1 | 811-0840 | |
| 2508X6X14 Impeller | 1 | 811-0880 | |
| 15 | 2503X2X13 Housing Assy | 1 | 811-2520 |
| 2504X3X13 Housing Assy | 1 | 811-2540 | |
| 2505X4X14 Housing Assy | 1 | 811-2560 | |
| 2506X5X11 Housing Assy | 1 | 811-2580 | |
| 250 6X5X14 Housing Assy | 1 | 811-2600 | |
| 250 8X6X11 Housing Assy | 1 | 811-2620 | |
| 250 8X6X14 Housing Assy | 1 | 811-2640 | |
| 16a | 250 Housing Nut | 12 | 405-4001 |
| 16b | 250 Housing Stud | 12 | 400-8021 |
| 17 | 250 Housing Gasket | 1 | 811-8060 |
| 18 | 250 Impeller 0-Ring | 1 | 811-7020 |
| 19 | 250 Shaft Sleeve 0-Ring | 1 | 811-7025 |
| 20 | 250 Inboard Brass Labyrinth Seal (Standard) | 1 | 811-6075 |
| 250 Inboard Bearing Shaft Oil Sea! | 1 | 811-6065 | |
| 21 | 250 Inboard Exclusion Seal | 1 | 811-6070 |
| 22 | 250 Outboard Brass Labyrinth Seal (Standard) | 1 | 811-6080 |
| 250 Outboard Bearing Shaft Oil Seal | 1 | 811-6060 | |
| 23 | 250 Outboard Bearing Cover Gasket | 1 | 811-8065 |
| 24 | 250 Outboard Bearing Housing 0-Ring | 1 | 811-7030 |
| 25 | 250 Outboard Bearing Cover 0-Ring | 1 | 811-7035 |
| 26 | 250 Bearing Lock Nut | 1 | 830-0380 |
| 27 | 250 Bearing Lock Washer | 1 | 830-0400 |
| 28 | 250 Impeller Lock Bolt | 1 | 830-0402 |
| 30 | Grease Zert | ||
| 31 | Stuffing Box Bolt | 1 | 400-2003 |
| 32 | 250 Pedestal Breather/Vent | 1 | 830-0405 |
| 33 | 250 4 X 3 X 13 Housing Wear Pad | 1 | 811-2545 |
| 250 5 X 4 X 14 Housing Wear Pad | 1 | 811-2565 | |
| 250 6 X 5 X 11 Housing Wear Pad | 1 | 811-2585 | |
| 250 6 X 5 X 14 Housing Wear Pad | 1 | 811-2605 | |
| 250 8 X 6 X 11 Housing Wear Pad | 1 | 811-2625 | |
| 250 8 X 6 X 14 Housing Wear Pad | 1 | 811-2645 | |
| 34 | 250 Shaft Key (3/8) | 1 |
