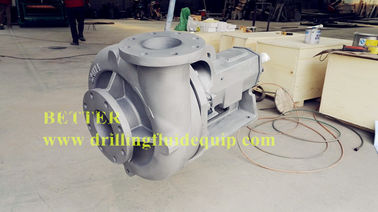

Dragon Type Premium 250 Centrifugal Pump 8x6x14 mechanical seal Casing with Wear Pad Hard Iron Ductile Iron

Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number dragon premium 250
Minimum Order Quantity 1 SET
Price USD 1500.00-2000.00 PER SET
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Painting Color Can Be Customized Material Hard Iron
Sealing Type Mechanical Seal Impeller 14" Open Type
Shaft Heavy Duty 2.5" Suction Size 8"
Discharge Size 6" Driven Motor Or Diesel Engine
Leave a Message
Product Description

Whether you need centrifugal pumps or heavy-duty pumps for handling solid waste and trash, BETTER has you covered. We provide a full line of pumps that can run on a variety of fuels - electric, diesel, or natural gas.BETTER will also help you select the right pump with the right pressure to insure you don’t incur extra horsepower expense. BETTER stands ready to support our drilling and oilfield customers with the highest quality pumps in the industry. And, as always, BETTER backs every product it manufactures with the support you need.





BETTER BT-SB Magnum series centrifugal pumps are designed for the widest drilling fluid processing industry, including shale shaker, desanding, desilting, mud pump charging and mud system in oil exploration. Where Mission™ Magnum™ I / 2500 Supreme or MCM™ 250 series centrifugal pump are used, BETTER BT-SB centrifugal sand pump will work or beyond your expectations.
It has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids.

Feature

  • Available in hard ductile iron, high chrome alloy fluid ends(casing, impeller, wear pad, stuffing box), customized fluid ends in stainless steel or aluminum bronze acceptable;
  • High volume/lower pressure performance perfect for oil-based drilling mud, cement, slurry, mine dewatering, etc.
  • Available in 8 different size, 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14;
  • Heavy-duty frame design;
  • One-piece concentric and thicker casing;
  • Same power end, to reduce greatly spares inventory;
  • Open impeller with wider vanes for high viscosity drilling fluid transferring;
  • High quality O.B.duplex angular contact bearings and I.B. bearing of single roller bearing;
  • Roller inboard Bearing and Ball inboard bearing for option;
  • Tungsten-Tungsten mechanical seals and 3-piece back-up packing;
  • External adjustment of impeller clearance extends pump performance life;
  • Same size as NOV™ Mission™ Magnum™ series, and replaceable with other popular brand pumps by same pedestal size;
  • The pumps can be unitized with Ex-proof electric motors, diesel engines in-line or over-belt driven configuration;
  • Three layer of paint for better surface protection, the top is superior epoxy resin-based paint, we accept customized paint brand or color at zero charging fees, or deliver in the status with bottom paint only, we are your “workshop” in China to complete all your imagine on the pumps.



BETTER MODEL SIZE NAME SEALING TYPE IMPELLER SIZE
BT-640202123-ITXX** 3 x 2 x 13 Centrifugal Pump Mechanical Seal 13”
BT-640202222-ITXX** 4 x 3 x 13 Centrifugal Pump Mechanical Seal 13”
BT-640202321-ITXX** 5 x 4 x 14 Centrifugal Pump Mechanical Seal 14”
BT-640202529-ITXX** 6 x 5 x 11 Centrifugal Pump Mechanical Seal 11”
BT-640202628-ITXX** 6 x 5 x 14 Centrifugal Pump Mechanical Seal 14”
BT-640202826-ITXX** 8 x 6 x 11 Centrifugal Pump Mechanical Seal 11”
BT-640202925-ITXX** 8 x 6 x 14 Centrifugal Pump Mechanical Seal 14”
BT-640203121-ITXX** 10 x 8 x 14 Centrifugal Pump Mechanical Seal 14”







Dragon Type Premium 250 Centrifugal Pump  8x6x14 mechanical seal Casing with Wear Pad Hard Iron Ductile Iron 0Dragon Type Premium 250 Centrifugal Pump  8x6x14 mechanical seal Casing with Wear Pad Hard Iron Ductile Iron 1
