China Factory Mission Magnum pump 2500 Supreme MCM250 Mission Sandmaster Centrifugal Pump & Replacement spares

Mission centrifugal pump line has proven to be the best centrifugal design for handling abrasive mud. BETTER series of heavy-duty centrifugal pumps are designed and manufactured basing on the introduced Mission pumps’ drawings. These pump line offers a broad selection of innovative features for a variety of routine, demanding, abrasive and corrosive applications.

All BETTER pumps are build using the superior quality components, and its parts are 100& identical in all dimensions to Mission Magnum 2500 supreme, Halco, SPD Baker Mud Hog 2.5/1.1, MCM 250 series, Double life 250, k Premium 250, XBSY, TSC, Victory, Trinity HDD TP-2500C, Mattco, Cobra Pump, Harrisburg, and Dragon 250, TSC Highlight HCP.etc.

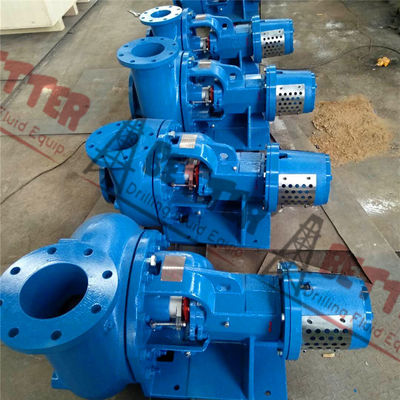

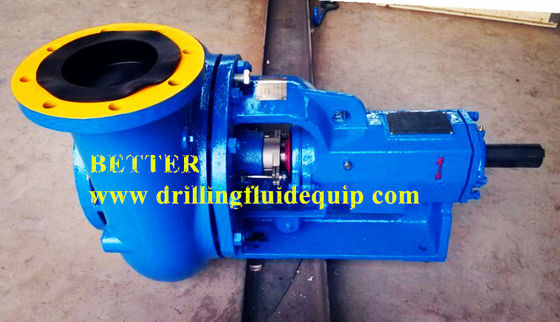

BETTER heavy-duty centrifugal pumps -Mission Magnum style

It has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. It is available in hard dutile iron, high chrome alloy, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration). Sizes from 3x2x13 to 10x8x14.

DISCLAIMER: NOV Mission® Magnum® & Supreme®, MCM®, Halco®, Double Life®, Baker® SPD®, Harrisburg®, Cobra®, Dragon®, k® are in no way affliated with BETTER Drilling Fluid Equipment Industrial Limited. The replacement parts offered are manufactured by or for BETTER, and the mentioned brand name & part no. is for confirmation.

We could produce and supply the equivalent spare parts as below. The given part no. is for confirmation.

1A          H10399-46-1    GASKET, CASING              FIBER

1B          H3932-61           NUT, CASING STUDS       STAINLESS, 3/4-10 HEX HEAD

1C           H2507-3              STUD, CASING   STEEL, 3/4-10 X 3-1/4" LONG

1CA H3862-76 STUD, CASING   STEEL, 3/4-10 X 3" LONG

2A          H19110-72        SEAL, IMPELLER

3             H22223-01-30A              STUFFING BOX COVER, SEAL     HARD IRON

3             H20614-01-30A              STUFFING BOX COVER, PACKED                HARD IRON

3A          H3861-117        BOLT, STUFFING BOX     STEEL, 1/2-13 X 1-1/4"

4             H20622A            GLAND SET        300 STAINLESS STEEL

5             H8264-24-1A    PACKING 5 RINGS & LANTERN RING     GRAPHITE ASBESTOS

5A          H2537-24A        PACKING 3 RINGS FOR SEAL      GRAPHITE ASBESTOS

6             H3701A               BOLT, GLAND ASSEMBLY              300 STAINLESS STEEL

7             H20612-02-33 SHAFT 4140

7A          H20613-21G-7A              SLEEVE, SHAFT                416 SS, CERAMIC COATED

7B          H4372-5-21       KEY, COUPLING END      416 STAINLESS STEEL

7C           H7496-236        SEAL, SHAFT SLEEVE     BUNA-N

8             H22210-1           DEFLECTOR       RUBBER

9             H17444               FRAME                 CAST IRON

9A          H2538 JACK BOLTS        STAINLESS STEEL

10A        H17950               COVER, INBOARD BEARING       CAST IRON

10B        H20625               GASKET, INBOARD BRG. COVER                ASBESTOS

10C        H20619-01        OIL SEAL, INBOARD BRG. COVER             BUNA-N

10D        H3861-1              BOLT-INBOARD, BEARING COVER           STEEL, 1/2"-13 X 1-1/2" LONG

10F        H20620-01        EXCLUSION SEAL, INBD. BRG.    BUNA-N

11           H20615-1           BEARING, INBOARD      FAFNIR 5313 WBR., MRC5313

12           H20624-01-01 HOUSING, OUTBOARD BEARING              CAST IRON

12A        H7496-253        SEAL, BEARING HOUSING           BUNA-N

12B        H3861-138        BOLTS, BEARING HOUSING         STEEL, 1/2"-13 X 1-1/2" LONG

12C        H3932-62           NUTS, BEARING HOUSING          300 S.S.1/2-13 JAM NUT

13           H20617-01-01 COVER, OUTBOARD BEARING    DUCTILE IRON

13B        H7496-26           SEAL, OUTBOARD BRG. COVER BUNA-N

13C        H20619-02        OIL SEAL, OUTBOARD BRG. CVR.              BUNA-N

13D        H3861-139        BOLT, OUTBOARD BRG. COVER STEEL, 3/8-16 X 1" LONG

14           H20616-1           BEARING, OUTBOARD   FAFNIR 7311 PW-BR-SU, MR731

14A        H6124-4              LOCK WASHER, BEARING            SKF-W1" (STEEL)

14B        H6123-4              LOCK NUT, BEARING      SKF-N1" (STEEL)

17           H22451-1A        MECHANICAL SEAL        TUNGSTEN CARBIDE

H10399-46-1A                 FLUID END GASKET KIT

H20625A            POWER END GAKET KIT

H20619A        GREASE SEAL KIT

H6123-4A           LOCKNUT KIT

H20952               IMPELLER REMOVAL WRENCH

Part No. #      Processing#             Description

10399-46-1          648403012     Gasket,casing

3932-61                     648402014 Nut,casing

3862-76                     648401115 Stud,casing

8505-04-01          86485503        Plug,Casing Drain

8505-04-01          646400507     Plug,flush line

19110-72               64845082        Seal,impeller

               7300239      Washer Impeller

               7415648      Bolt, impeller lock

22223-01-30        641116157     Stuffing box,mech.seal

20614-01-30        643365042     Stuffing box,packed

3861-117               648401016     Bolt,stuffing box

19368-01               601499403     Grease fitting

20622A                       641103338 Gland assy,packing

22451-1                     648414308 Seal,mechanical

25014-04M-B      661007005     Packing, Shaft

B3701A                      601102494 Bolt assy,gland

20612-02-33        646490557     Shaft

20943-21               641102182     Sleeve,shaft,M.S.

20613-21G-7A  641102181       Sleeve,shaft,Pack

4372-5-21             601212392     Key,shaft

23444-01-72        648415156     Seal,shaft sleeve

22210-1A              641116108     Deflector assembly

20618-12-1          644302499     Frame, grease lubricated

8505-05                     601474737 Plug, Frame Drain

8267-01        601473689   Breather

2538-1H                     Bolt, casing jack

20626          644303109 Cover, inboard bearing

20625          648408706 Gasket,I.B.Bearing.Cover

20619-01               648408300     Oil seal, I.B.Bearing.Cover

3861-1        601407505 Bolt, I.B.Bearing.Cover

3932-2        601408560 Nut, I.B.Bearing.Cover

19368-01               648411908     Grease fitting

20615-1        661009010   Bearing, Inboard

20624-01-01    644308504   Housing, O.B. bearing

7496-253               648402295     Seal, O.B.Bearing.housing

3861-139               648401057     Bolts, O.B.Bearing.housing

3932-62        658404702   Nuts, O.B.Bearing.housing Jam

20617-01-01    641103296         Cover,O.B.Bearing

19368-01       661010020   Grease Zerk

7496-26        072200017   O-ring, O.B.Bearing,Cover

20619-02               648408359     Oil seal, O.B.Bearing.Cover

3861-139               648401081     Bolt, O.B.Bearing.Cover

20616-1                     648408201S               Bearing, O.B.

6124-4         648402105   Lock washer, O.B.Bearing

6124-4         648402055   Locknut, O.B.Bearing

Please contact our sales if you are interested in any of our products.
