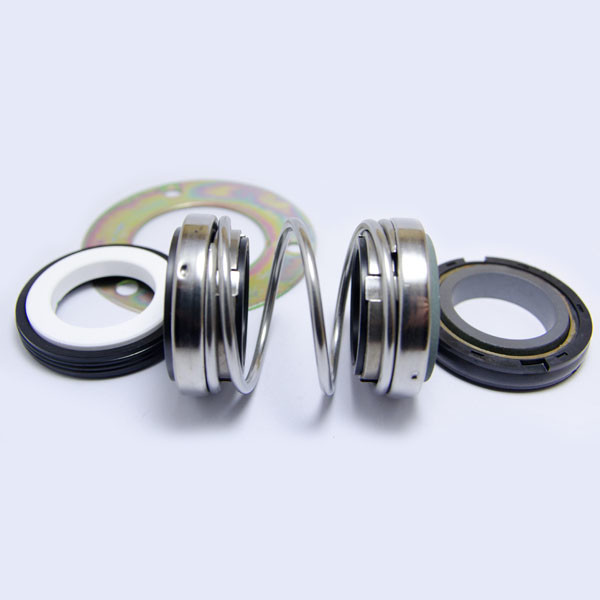

Eagle Burgmann Mechanical Seal ED560 to fit Submersible Centrifugal Pump SilIcon faces
| Place of Origin | China |
|---|---|
| Brand Name | Burgmann |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | ED560 |
| Minimum Order Quantity | 1 SET |
| Price | USD 120-220 per set |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rotary Seal | Tungsten Carbide Faces | Stationary Seal | Tungsten Carbide Faces |
|---|---|---|---|
| Seal | Viston | Spring | Stainless Steel 304/316 |
| OEM | 100% Interchangeable With Polular Pump | Performance | Long Service Life |
| Advantage | Competitive Price |
Product Description
Flowserve: RO;EAGLE 1257.
1. Model: 560D
2. Stationary ring: ceramic/SIC/TC
3. Rotary ring: carbon/SIC/TC
4. Secondary seal: NBR/EPDM/
5. Spring&Metal parts: steel
Working conditions of industrial double face mechanical seal
1. Pressure: ≤0.3Mpa
2. Speed: ≤10m/s
3. Temperature: -30ºC~200ºC
Drawing of industrial double face mechanical seal
Sizes of industrial double face mechanical seal
2. Stationary ring: ceramic/SIC/TC
3. Rotary ring: carbon/SIC/TC
4. Secondary seal: NBR/EPDM/
5. Spring&Metal parts: steel
Working conditions of industrial double face mechanical seal
1. Pressure: ≤0.3Mpa
2. Speed: ≤10m/s
3. Temperature: -30ºC~200ºC
Drawing of industrial double face mechanical seal
Sizes of industrial double face mechanical seal
| Model | d | D1 | D2 | L | L1 | L2 |
| BT560D-12 | 12 | 25 | 25 | 36 | 5 | 5 |
| BT560D-13 | 13 | 25 | 25 | 36 | 5 | 5 |
| BT560D-14 | 14 | 30 | 30 | 36 | 5 | 5 |
| BT560D-15 | 15 | 30 | 30 | 36 | 5 | 5 |
| BT560D-16 | 16 | 30 | 30 | 36 | 5 | 5 |
| BT560D-18 | 18 | 35 | 38 | 49 | 7 | 7 |
| BT560D-19 | 19 | 35 | 38 | 49 | 7 | 7 |
| BT560D-20 | 20 | 38 | 44 | 49 | 7 | 7 |
| BT560D-25 | 25 | 44 | 50 | 51 | 7 | 7 |
| BT560D-30 | 30 | 50 | 57 | 59 | 9 | 8 |
| BT560D-35 | 35 | 58 | 64 | 61 | 9 | 9 |
| BT560D-40 | 40 | 64 | 70 | 64.5 | 11 | 9 |
| BT560D-45 | 45 | 66 | 70 | 65 | 10 | 9 |
| BT560D-50 | 50 | 72 | 80 | 69.5 | 10 | 9 |
