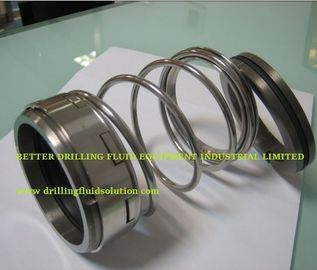

MCM 250 Mechanical Seal Complete fitting Mission, MCM, Baker SPD P/n 22451-2, 648414340
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStructure | Sping Mechanical Seal | Material | Tungsten Carbide Faces |
---|
BETTER has several style of mechanical seal, tungsten carbide faces, ceramic to carbon face, silicon to tungsten face and silicon carbide faces, also supply packings, shaft with latern ring in Graphite, Teflon, Kevlar.
The following part no. for your confirmation with us when inquiry:
Seal, Mechanical (Tungsten carbide faces), P/N: 22451-1, 648414308
Seal, Mechanical (ceramic to carbon face), P/N: 22451-2, 648414340
Seal, Mechanical (silicon to tungsten face), P/N: 22451-3, 648414357
Seal, Mechanical (silicon carbide faces), P/N: 22451-9A
Packing shaft with latern ring (Graphite), P/N: 25014-04M-B, 661007005
Packing shaft with latern ring (King), P/N: 25014-04M-BA, 661007008
Packing shaft with latern ring (Teflon), P/N: 250147-04M-D, 661007011
Packing shaft with latern ring (Kevlar), P/N: 25014-04M-C, 661007006
Packing, Shaft –M.S. Backup (Graphite), P/N: 648402600
Ring, Latern, or Latern Ring, P/N: 648408607
A set of mechanical seal includes Mechanical seal, 3 pcs packings and a pin.
ASSY, PACKING W/PLSTC LNTRN RING, GRPHT
Approved Part Number(s) Manufacturer
#052141500. Baker SPD
#25014-04M-B NOV MISSION
#661007005. NOV MISSION
#720440. DOUBLE LIFE CORPORATION, INC
#H2537-24A HALCO
#P25PMSG O'DRILL/MCM INC
ASSY,SLEEVE,SHAFT,SS-416/CERAMIC,MSN,PUMP
Approved Part Number(s) Manufacturer
#052137000. Baker SPD
#052144200. Baker SPD
#20613-21G-7A NOV MISSION
#641102181. NOV MISSION
#721580. DOUBLE LIFE CORPORATION, INC
#H20613-21G-7G HALCO
#H20613-21H HALCO
#P255HSLVC O'DRILL/MCM INC
#P25SHSLVC O'DRILL/MCM INC
#WWENT5313. Baker SPD
GASKET,CSNG,ANCHR HYDROL,PUMP,MAGNUM I
Approved Part Number(s) Manufacturer
#052137100. Baker SPD
#10399-46-1 NOV MISSION
#648403012. NOV MISSION
#720700. DOUBLE LIFE CORPORATION, INC
#H10399-46-1 HALCO
SEAL,MECH,TUNGSTN/TUNGSTN STD,MSN,PUMP
Approved Part Number(s) Manufacturer
#22451-1 NOV MISSION
#648414308. NOV MISSION
#721540. DOUBLE LIFE CORPORATION, INC
#H22451-1A HALCO
#P25MS/TT O'DRILL/MCM INC
#WVBUF9000 Baker SPD
PUMP,CENT,MAGNUM,8x6INCH,250X SERIES
Approved Part Number(s) Manufacturer
#640202925ITA0 NOV MISSION
#712005. DOUBLE LIFE CORPORATION, INC
#999881BFC Baker SPD
#PC5NSFT1100UGB O'DRILL/MCM INC
Approved Part Number(s) Manufacturer
#052136410. Baker SPD
#22222-01-30A NOV MISSION
#641116157. NOV MISSION
#721350. DOUBLE LIFE CORPORATION, INC
#H22223-01-30A HALCO
#P25SB/MS O'DRILL/MCM INC
Inboard Roller Bearings and Inboard Ball Bearings
661009010A & 648408102&20615-1
Casing Gasket, Material of Celluloid, P/N: 648403012, 10399-46-1
Casing Gasket, Material of Teflon, P/N: 648403013, 10399-46-6
Casing Gasket, Material of , P/N: 648403072, 10399-46-72
Description |
Mattco P/N |
Harrisburg P/N |
SPD P/N |
MCM P/N |
Halco P/N |
Gasket, casing | 17648 | 13C-250-HGA | 052137100 | P25HG | H10399-46-1 |
Fluid end gasket kit | 17690 | 31-250-FEGK | 052145400 | P25FEGK | 10399-46-1A |
Nut, casing | 17649 | 15-250-HSN | WWHS1S3HA | P25HSN | H2507-3 |
Stud, casing | 5327-034 | WWJ11S800 | H3932-61 | ||
Plug, Casing Drain | - | - | - | - | - |
Plug, flush line | - | - | - | - | - |
Seal, impeller | 5530-0032 | 12B-250-ISOR | P25IMS | WWB032V35 | H19110-72 |
Washer, impeller | - | - | - | - | - |
Bolt,impeller lock | - | - | - | - | - |
Stuffing box, mech.seal | 17658-002 | 11-250-SBPG | P25SB/MS | 052136410 | 22223-01-30A |
Stuffing box, packed | 17657-002 | 11C-250-SBMSS | P25SB/PK | 052144910 | H20614-01-30A |
Bolt, stuffing box | - | - | - | WWG31H187 | H3861-117 |
Grease fitting | - | - | - | - | - |
Gland assy., packing | 17659 | 9-250-GPA | P25PG | 052136500 | H20622A |
Seal, mechanical | - | - | - | WVBUF9000 | H22451-1A |
Packing, Shaft | - | - | - | 052153500 | H8264-24-9A |
Bolt assy,gland | - | - | - | 052137280 | H3701A |
Shaft | 17665-001 | 7-250-416SS | P25SHFT | 052133900 | H20612-02-33 |
Sleeve, shaft, M.S. | - | - | - | - | - |
Sleeve, shaft, Pack | 17666-002 | 11-250SBPG | P25SHSLVC | 052144200 | H20613-21G-7A |
Key, shaft | - | - | - | WWW00A004 | H4372-5-21 |
Seal, shaft sleeve | - | - | - | - | - |
Deflector assembly | 17691 | 23-250-SRW-U | P25SRW | WWW003003 | H22210-1A |
Frame, grease lubricated | 17670 | 1-250-PED | P25PED | 052136610 | H17444 |
Plug, oil drain | - | - | - | - | - |
Bolt, casing jack | - | - | - | WWG31S28F | H2538 |
Plug, Frame Drain | - | - | - | - | - |
Cover, inboard bearing | 17671 | 4A-250-BO | P25IBBC | 052136710 | H17950 |
Gasket, I.B.Brg. Cover | 17672 | 3A-250-BCG | P25IBBCG | 052137400 | H20625 |
Power end gasket kit | 17692 | 32-250-PEGK | P25PEGK | 052145500 | H20625A |
Oil seal, I.B.Brg. Cover
|
5550-005 | 5B-250-OGSI | P25IBBOS | WWW003002 | H20619-01 |
Bolt, I.B.Brg. Cover | 13669 | 6-178-BCBNA | P78BCBA | WWWG31H1H7 | H3861-1 |
Nut, I.B.Brg.Cover | - | - | |||
ExclusionSeal,I.B.Brg.Cvr. | 5550-006 | 5C-250-SEXI | P251BBES | WWW003001 | H20620-01 |
Grease fitting | - | - | - | - | - |
Bearing, inboard | 50913-001 | 4B-250-BI | P25IBBRG | WWENT5313 | H20615-1 |
Housing, O.B.bearing | 17673 | 4C-250-BH | P25OBBH | 052136810 | H20624-01-01 |
Seal, O.B.Brg. housing | 5530-254 | 32-250-BHOR | P25OBBHS | WWB254H30 | H7496-253 |
Bolts, O.B.Brg. housing | - | - | - | WWG31H1H7 | H3861-138 |
Nut, O.B.Brg.housing jam | - | - | WWJ31H800 | H3932-62 | |
Cover,O.B.Bearing | - | - | - | 052136910 | H20617-01-01 |
Grease zerk, O.B.Brg.Cvr. | - | - | - | - | - |
O-ring, O.B.Brg.Cover | 5530-246 | 3B-250-BBLNA | P25OBBCS | WWB248P41 | H7496-26 |
Oil seal, O.B.Brg.Cover | 5A-250-OGSO | P25OBBOS | - | - | - |
Bolt, O.B.Brg.Cover | - | - | - | WWG31D107 | H3861-139 |
Bearing, O.B. | 50912-001 | 2A-250-BC | P25OBBRG | WWESL7311 | H20616-1 |
Lockwasher,O.B.Bearing | - | - | - | WV00W1100 | H6124-4 |
Locknut, O.B.Bearing | - | - | - | WV00N1100 | H6123-4 |
Bearing Lock nut kit | 17689 | 4E-250-BBLNA | P25BLNK | 052145700 | H6123-4A |
Casing,3×2×13 | 1769-002 | 142523HAS | P25D233H | 052134000 | H19203-01-30A |
Casing,4×3×13 | 17680-002 | 142534HAS | P25D343H | 052134100 | H19205-01-30A |
Casing,5×4×14 | 17681-002 | N/A | P25D454H | 052134200 | H19222-01-30A |
Casing,6×5×11 | 17682-002 | 142556HAS-11 | P25D454H | 052134300 | H19122-01-30A |
Casing, 6×5×14 | 17683-002 | 142556HAS-14 | P25D564H | 052134400 | H19123-01-30A |
Casing, 8×6×11 | 17684-002 | N/A | P25D681H | 052134500 | H19763-01-30A |
Casing,8×6×14 | 17685-002 | 142568HAS | P25D684H | 052134600 | H19117-01-30A |
Casing,10×8×14 | - | - | - | - | - |
Impeller,3×2×13 | 17650-XX-112 | 1225231XX | P25D233MRxxx | - | - |
Impeller,4×3×13 | 17651-XX-112 | 1225341XX | P25D343MRxxx | - | - |
Impeller,5×4×14 | 17652-XX-112 | 1225451XX | P25D454MRxxx | - | - |
Impeller,6×5×11 | 17653-XX-112 | 1225561XX | P25D561MRxxx | - | - |
Impeller, 6×5×14 | 17654-XX-112 | 1225561XX | P25D564MRxxx | - | - |
Impeller, 8×6×11 | 17655-XX-112 | 1225661XX | P25D561MRxxx | - | - |
Impeller,8×6×14 | 17656-XX-112 | 1225681XX | P25D584MRxxx | - | - |
Impeller,10×8×14 | - | - | - | - | - |
