Electric Mud Pump Parts Standard Rotary Piston Pump for Oil Pressure Diesel Fuel Operation
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | PD45 |
| Minimum Order Quantity | 1 SET |
| Price | OFFER |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Rotary Pump | Structure | Piston Pump |
|---|---|---|---|
| Usage | Oil | Power | Electric |
| Standard Or Nonstandard | Standard | Fuel | Diesel |
| Pressure | High Pressure | Application | Sewage |
Product Description
BETTER is specialized in supply series of mud system equipment, also supply forged and cast steel pulsation dampener, interchangeable with EMSCO PD series dampener and BOMCO KB series dampener, which are dependable and reliable with API connections.

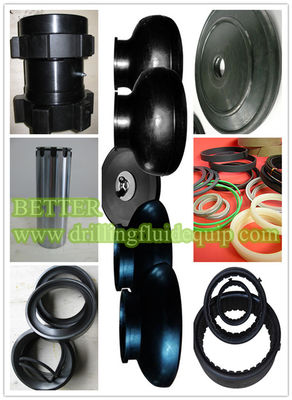

The replacement pulsation dampener rubber bladder is suitable for oil based, water based drilling fluids

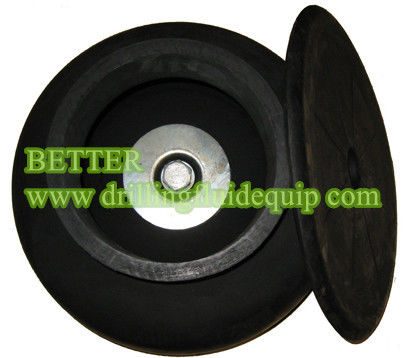

Pulsation dampener bladder assy.: Diaphragm (bladder), Stabilizer, plate, screw, lock washer
Nitrogen charging tools: charging valve, gauge, charging hose assy.
Type and size available:
EMSCO PD43/45 P/N: 6922-0086-00
EMSCO PD53/55 P/N: 6922-0003-00, P/N: 6922-0003-01. P/N: 6922-0109-00
BOMCO KB45 KB75
Discharge pulsation dampener bladder and suction bladder used for Mud Pump 3NB-1000/1300, 3NB-1600, EMSCO F-500/800(PD-45), EMSCO F-1000/1300/1600(PD-55) , BOMCO F-500/800(KB-45), BOMCO F-1000/1300/1600(KB-75)
Suction bladder F-500/800/1000/1300/1600
| Model | Specification | Model | Specification |
| Capsule 3NB-1000/1300 | Φ590×341×280 | Capsule 350/600 | Φ260×530×350 |
| Capsule 3NB-1600 | Φ590×314×309 | Slab rubber 350/600 | Φ65×450×24 |
| Slab rubber 3NB-1000/1300 | Φ510×66×22 | Capsule 2PN-800/1258 | Φ304×600×335 |
| Capsule SL,1300A | Φ590×314×345 | Slab rubber 2PN-800/1258 | Φ65×505×24 |
| Capsule SL,1300A | Φ465×270×250 | Capsule for inhalation F-500 | Φ337×66 |
| Capsule F-500/800/1000(KB-45) | Φ444.5×235×332 | Capsule for inhalation F-800 | Φ406×76 |
| Capsule F-1000/1300/1600(KB-75) | Φ732.5×279.6×378 | Capsule for inhalation F-1000/1300/1600 | Φ460×76 |
Technical parameters:
Bladder Model: K-10, K-20, PD-45, PD-55, KB-45, KB-55
Volume: 10 gallon or 20 gallon
Material: NBR
Medium: Nitrogen
Tensile strength: more than 450 Mpa
Elongation: more than13 %
Aging coefficient (120 c degree x 24h) : more than8
Hardness: 60-70 Shore A
Working pressure: 5000psi
Testing Pressure: 7500psi
Working temperature: -40-55 C degree
BETTER is specialized in supply series of mud system equipment, also supply mud pump bladders, interchangeable with EMSCO PD series, which are dependable and reliable with API connections.
The replacement pulsation dampener rubber bladder is suitable for oil based, water based drilling fluids.
Pulsation dampener bladder assy.: Diaphragm (bladder), Stabilizer, plate, screw, lock washer
Nitrogen charging tools: charging valve, gauge, charging hose assy.
Type and size available:
EMSCO PD43/45 P/N: 6922-0086-00
EMSCO PD53/55 P/N: 6922-0003-00, P/N: 6922-0003-01. P/N: 6922-0109-00
Discharge pulsation dampener bladder available for Mud Pump 3NB-1000/1300 (3NB), 3NB-1600, EMSCO F-500/800/1000(PD-45), EMSCO F-1300/1600(PD-55) , BOMCO F-500/800/1000(KB-45), BOMCO F-1300/1600(KB-75), SL-1300A, F-600, F-350
Suction bladder available for F-500/800/1000/1300/1600
Please don't hesitate to contact our sales if you are interested in any of our products.
Sales Assistant
Att.: Mike Lee
BETTER Drilling Fluid Equipment Industrial Limited
http://www.drillingfluidsolution.com
sales[a]drillingfluidequip.com
WhatsApp/wechat:18764068509
