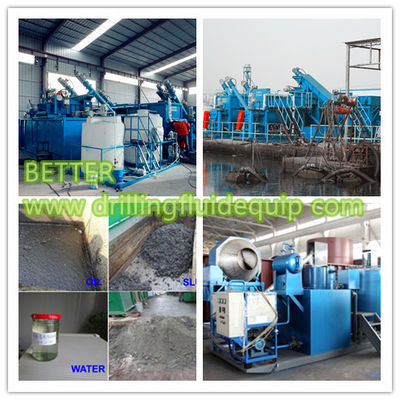

Waste Oily Sand Sludge Treatment & Recycling System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | ISO AND API |
---|
MUD CLEANER
Combined with Desander, Desilter and an Underflow shale shaker, compact design with small footprint;
Consist of a two-stage separation process using a combination of hydrocyclones mounted over a shale shaker to operation as a single unit;
Solids passed through the hydrocylones and separated particles pass through the shaker screens,and bigger particles remain on the screen and removed manually;
Desander & desilter cones made of Polyurethane ( PU ) or high-chromium cast iron or ceramic;
1-3 pcs Desander cones for optional, each cone can process 500 GPM and makes a separation between 45 and 75 μm;
8-20 pcs Desilter cones for optional, each cone can process 80 GPM, and makes a separation between 15 and 45 μm;
Effective on both oil-base and water-base weighted and unweighted drilling fluid system in removing and drying solids;
Minimizing waste generated and reducing disposal costs;
DRILLING FLUID DESANDER
Combined with Desander cones and an Underflow shale shaker, compact design with small footprint;
An ideal second-stage separation equipment;
Desander cones made of Polyurethane ( PU ) or high-chromium cast iron or ceramic;
To separate the solids between 45 and 75 μm;1, 2 or 3 pieces of 10" or 12" cones for different capacities optional;
Clamp type for easy maintenance;
Customized desander acceptable to meet the customer special needs;
Brand electrical components of ABB, Siemens, and Schneider adopted;
Brand imported vibration motors of US Martin or Italy OLI adopted, IEC Ex, ATEX and UL Certified;
De-sander Without Underflow Shale Shaker For oil gas drilling un-weighted drilling mud No Consumable Screens; Small Footprint; Economic Choice
DRILLING FLUID DESILTER
Combined with Desilter cones and an Underflow shale shaker, compact design with small footprint;
An ideal three-stage separation equipment;
Desilter cones made of Polyurethane (PU) or high-chromium cast iron or ceramic;
To separate the solids of 15 ~ 47 μm; 6, 8, 10, 12 or 16 pcs of 4" cones for different capacities optional;
Customized desilter acceptable to meet the customer special needs;
Brand electrical components of ABB, Siemens, and Schneider adopted;
Brand imported vibration motors of US Martin or Italy OLI adopted, IEC Ex, ATEX and UL Certified.
Desilter Without Underflow Shale Shaker For oil gas drilling un-weighted drilling mud No Consumable
Screens; Small Footprint; Economic Choice
All our mud cleaner, desander, desilter will equip with mission magnum style centrifugal pump.
HYDROCYCLONE
A wide variety of hydro-cyclones for desilters and desanders as replacements for major O.E.M. brands in the 4”, 5”, 6”, 10” & 12” sizes ;
Treat capacity from 10m3/h to 120 m3/h, to particles of above 15 μm;
Made of Polyurethane or abrasion-resistant alloy, Clamp design ;
The separation of solids is dependent upon feed particle size, fluid density &viscosity, fluid feed pressure and cone apex size;
Enough feeding pressure is necessary, less bend & T pipeline to ensure min.pressure loss. All hydrocyclones require 75ft (22.9m) of head, D50 is dependent on the feeding particle size.
Please don't hesitate to contact our sales if you are interested in any of our products.
