Product Description

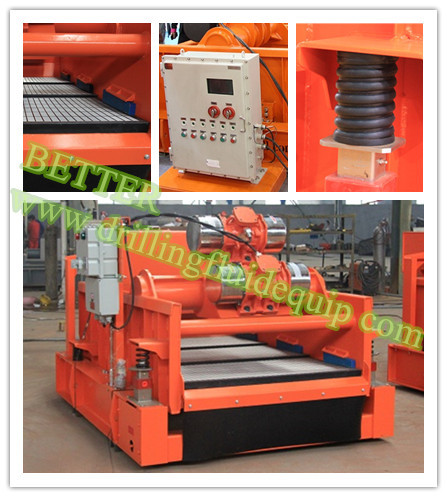

HIGH G DRYING SHAKER (HI-G DRYER)

·         Processing those drilling cuttings from the primary solid control equipment (shale shaker, D-sander, D-silter) to dry them for transportation;

·         First-stage in the waste management processing system, to match with vertical cutting dryer to work;

·         Special structure, long shaker deck and stable processing result, linear vibration motion

·         Delivers high-capacity separation efficiency and operation flexibility;

·         Durable pretension composite screens, provides longer screen life and larger screening area;

·         Deliver high processing capacities, flexible fluid distribution, generate drier cuttings, lowers solid waste volume and reduce the drilling waste disposal cost

·         Up to 8.0G operation mode, adjustable vibration frequency, high efficiency, enhance overall solids control efficiencies

·         Vibrating Motor: Italy OLI /American Martin, IEC Ex and ATEX Option Available

·         Surface painting & coating with heavy anticorrosive brand paint

·         Wedged Type Shaker Screen for fast screens changing

·         Electrical control system: Explosion-proof electrical system and ABB or Siemens, Schneider electrical components.

Basic technical specification

v  Vibratory Motion Type Linear Motion, Adjustable G force ≤8.0G

v  Capacity up to 150m3/h (660GPM)

v  Screen Deck angle range -1°~+5° adjustable by electrical or manual, Vibration Amplitude 4.4~6.34mm

v  Screen area  585x1165mm 2.73m2 Composite frame or metal frame for optional 4 pcs

v  Motor specifications 1.94Kw 2 pcs, ExdIIBt4 / IEC EX/ ATEX

v  Feeding type Hopper feeder

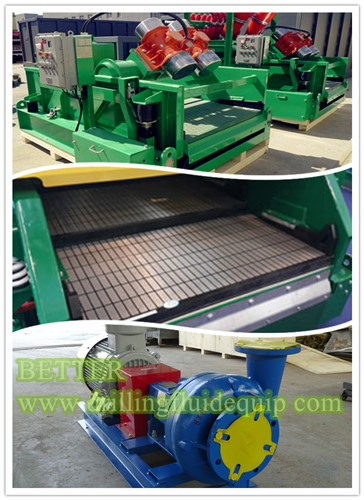

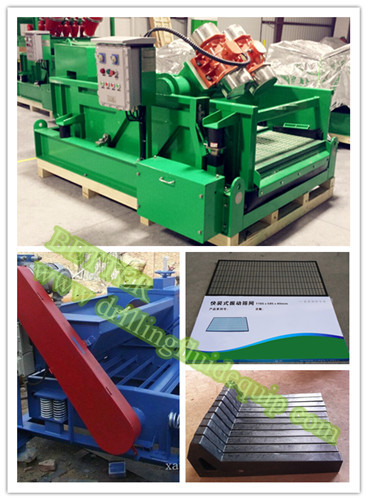

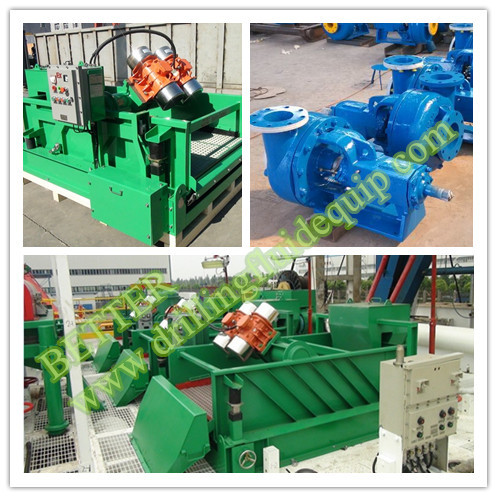

Economic Shale Shaker

            First-stage in the process of extracting solids from the drilling fluids or drilling cuttings;

v  To remove the solids based on the particle size, separated solid particles ≤ 100 microns;

v  Linear motion, balanced elliptical motion shale shaker and dual motion shale shaker available;

v  VFD shale shaker available, adjustable vibration frequency;

v  Heat treatment on complete shale shaker deck for High G force operation;

v  High quality paints to provide a good anti-corrosion protection;

v  Unique wedge mechanism screen locking to allow easy &fast screen removal, repair or replacement;

v  Flexible feeding type including Weir Feed, Top Feed, and Hopper Feed for different applications;

v  High G-force, wide screen area, compressed structure, cost-effective, double and triplicate shaker Available.

v  Treating capacity beyond 500GPM

v  EX Standard ExdIIBt4 / IEC EX/ ATEX 380v @ 50hz, 460v @ 60hz, or customized
