Drilling Waste Screw Conveyor Solid Control Equipment Drilling

Drilling Waste Screw Conveyor Solid Control Equipment Drilling

    • Drilling Waste Screw Conveyor Solid Control Equipment Drilling
    • Drilling Waste Screw Conveyor Solid Control Equipment Drilling
    • Drilling Waste Screw Conveyor Solid Control Equipment Drilling
  • Drilling Waste Screw Conveyor Solid Control Equipment Drilling

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: BT-SB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: OFFER
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description

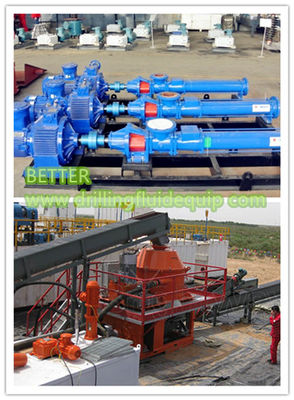

    Drilling waste management system is used for recycling drilling fluids from drilling cuttings to reuse, and minimize the drilling waste to save transport cost. It can reduce the OOC to be 3 %~5% for oil-based drilling cuttings; and for water-based drilling cuttings, it can reduce the water content for each transportation. For a standard drilling waste management unit, it’s usually built with drying shakers, 1 set vertical cutting dryer, 1 set decanter centrifuge, 2 sets screw pump for feeding and flushing decanter centrifuge, 2 or more sets screw conveyor for transporting drilling cuttings, and skid with catching tank for fluids from vertical cutting dryer and telpic, electric cradle and control system.


    G Series Screw Pump, ideally for decanter centrifuge feeding, without shearing and agitating, evenly transfer fluid along axial direction;

    The rated discharge pressure increases by the pump grade rising, and each grade rising brings the pressure increase 0.6 MPa;

    Stainless steel Shaft and elastomeric stator, rotor and stator replaceable;

    Suitable to transfer the fluids of high viscosity with hard suspended particles;

    Compact structure, small volume and easy maintenance. Rotor and stator, wearing parts of this pump, are convenient to replace.

    Driven by variable speed motor to connect by coupling, V-belts or gearbox

    For some applications, horizontal centrifugal pump and submersible slurry pump are requested to feed drilling mud to the decanter centrifuge.


    Vertical single stage and single suction centrifugal pump

    Semi-open or open impeller equipped with paddle wheel in the impeller suction side extension place;

    Vertical explosion-proof motor mounted on the base above the fluid level, coupling connection;

    Pump shaft below submerged in the fluid, no bearing, no gland seal;

    Suitable for transferring high concentration particles;

    The length submerged in the fluid is 800-2500mm on request;

    Suction pipe can be equipped if request;

    High hard alloy material adopted, wear resistance, corrosion resistance, and long service life;

    Ideal charging pump for decanter centrifuge, shale shaker, desander, desilter.

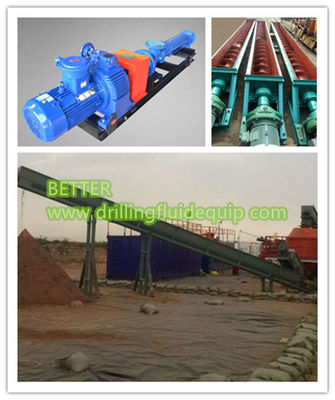

    Screw conveyor (Auger) is popular used in drilling waste management projects for transferring drilling cuttings with low-cost;

    Adopting a multi-sectional composite structure with each section of 12 feet (3.66m), each section standard length are interchangeable;

    The screw conveyor can be flexibly assembled on different drilling sites, with characteristics of simple operation, stable structure, strong adaptability and high safety, significantly improving the operating efficiency of equipment and reducing the cost and resources. The flights of screw conveyer adopt wear-resistant material 16Mn to ensure its service life.

    The screw conveyor are manufactured to the highest safety standards and are fitted with protective grating or cover to prevent foreign bodies entering the conveyor system, and the frame at the bottom can protect and support the screw conveyor, ensuring its structural stability.


    Mud Tank, Water Tank and Oil Tank are available;

    Square tank and Cone-shaped tank for optional;

    Tank body made of the welding corrugated steel plate with two layers rust-proof coating for inner wall and three layer for outer wall;

    Brand paint we adopted, marine corrosion-resistant zinc rich epoxy coating and paining;

    Oilfield structure design is horizontal three runner skid-mounted;

    Tank designed with the collapsible ladders, foot board, two-sided guard rail and water cleaning pipeline, the optional shanty for sun protection;

    High quality raw material but good price.

    Mud tanks includes Mud Storage Tank, Mud Mixing Tank, Mud Trip Tank, Mud Recycling Tank


    Oil & Gas Drilling-Solid control System

    Complete the solid control equipment with mud tank mounted on the steel base for drilling rigs up to 3000HP;

    HDD &CBM Drilling-Mud recycling system

    Also used for waterwell, mining and geothermal well drilling, compact structure design, 200-1500gpm, mounted on skid, trailer for easy transportation.

    Bored Pile & TBM drilling- Mud Cleaning System

    Also used for mining slurry separation system and dredging slurry separation system

    High efficiency and reasonable design, compact structure, convenient transport, easy operation, to meet the customized request.
