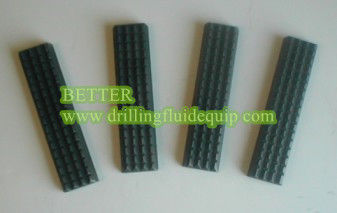

Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong

Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong

    • Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong
    • Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong
    • Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong
    • Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong
  • Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 Tong

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: HT100 HT65 HT55 HT50 HT35 Tong

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD 50.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Material: 20CrMoTi Alloy Steel Hardness: HRC56-62
    Surface: Phosphating Treatment Color: Black
    High Light:

    TONG DIES AND INSERTS

    ,

    TONG DIES

    ,

    BUTTON CIRCULAR SLIP INSERTS

    BETTER Drilling Fluid Equipment cooperated-owned plant is specially engaging in the line of die and insert production, and dedicated to build an international brand with our own specialization and valuable experience. BETTER dies and inserts are accurately machined to exacting tolerances using state of the art CNC machinery. All dies and inserts are then heat treated to specific standards to provide the best resistance to wear even in the harshest environments. Consistent quality,proper fit and longer service life are basic and permanent pursuit.



    DIES FOR VARCO/BJ MANUAL TONGS
    Tong Type Dimension(inch) Original P/N Tooth Type Weight

    SDD, C, F, LF/

    HT 14, HT 20, HT35, HT100

    1/2” x 1.1/4” x 5” 16401-2 13 oz.
    16401-6 BLUE DIAMOND 13 oz.
    16401 COARSE 13 oz.

    B, DB, B Extend /

    HT-55, HT65, HT50

    Web Wilson AAX, H

    1/2” x 1.1/4” x 5.7/8” 16402-2 14 oz.
    16402-6 BLUE DIAMOND 14 oz.
    16401 COARSE 14 oz.
    NOTE: Diamond tooth dies are used when a more aggressive bite is required.

    Blue Diamond Tong Dies P/N 16401-6 16402-6 8120 alloy steel phosphating black treatment F/HT100 HT65 HT55 HT50 HT35 TongBETTER manufactures and supply dies, inserts, and spare parts for a wide variety of oilfield handling tools, including:

    Rotary slips

    Drill collar slips

    Casing slips

    Safety clamps

    Slip-type elevators

    Manual tongs

    Power tongs

    Tubing spiders



    All our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom manufacturing are always welcome.



    Interchangeability warranty

    100% interchangeable with OEM design, but more cost-effective!



    We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½”& 7 /8”

    Dimension: 1/2 x 1.1/4x 5.7/8, 1/2 x 1.1/4 x 5, 1/2 x 1.1/4 x 3.7/8, 3/8 x 1 x 3.7/8

    Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631

    103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019

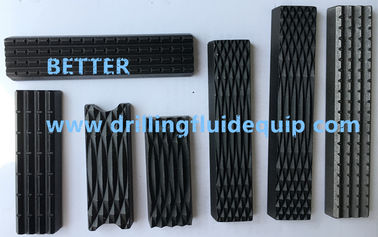

    POWER TONG DIES , Coarse, Plain, Blue Diamond Tooth

    We can supply power tong dies for BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y in size of 1/2 x 1.1/4 x 3.7/8, 7/16 x 1 ¼ x 3 1/16, 1 3/16 x 1 ¼ x 3 1/2, etc.

    Interchangeability warranty

    100% interchangeable with OEM design, but more cost-effective!

    VARCO BJ equivalent part no:

    Blue diamond, , coarse tong dies: 16401, 16401-1, 16401-2, 16401-6, 16402, 16402-1, 16402-2, 16402-6

    1/2x 1 1/4x 5 7/8, 1/2x 1 1/4x 5, 1/2x 1 1/4x 3 7/8,

    Slip dies or slip inserts: 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, 7613-A-82, 7613-B-82, 7613-C-82, 7613-FF-81, 7613-A-81, 7613-E-81, 7613-E-82, 7613-G-81, 7613-H-81, 7613-Z-81, 7613-DD-81, 7613-EE-81

    Circular Buttons: 2620, 2628, 2630, 2627, 2625, 2619, 2631, 2626

    Safety clamp dies: 7624-A-21, 7624-A-4, 3310, 3333

    INSERTS FOR BJ SLIP TYPE ELEVATORS LYT MYT YTHYTYC

    28772,24773,29255,29256,29357,29257,29258,29259,24773,29255,29256,29357,29257,29258,29259,24774,30358,

    24773,29255,29256,24774,30358,16441/350103,16442,16408/350105,24781/350504,24779/350903,BJ16407/350107,24783/350506,BJ16407/350110,24748/350409

    Full Circle Inserts for Cavins Type C & CHD spider

    TC-650-2 1/16” x 2 1/16”

    TC-651-2 1/16” x 1.990”

    TC-651-2 1/16” x 1.660”

    TC-651-2 1/16” x 1.135”

    TC-650-3 1/2” x 3 1/2”, 65652-3

    TC-651-3 1/2” x 2 7/8”, 65652-2

    TC-651-3 1/2” x 2 3/8”, 65652-1

    TC-650-4 1/2” x 4 1/2”, 65653-3

    TC-651-4 1/2” x 4”, 65653-2

    TC-651-41/2” x 3 1/2”, 65653-1

    66651-1ST

    66651-2ST

    66651-3ST

    66653-2ST



    Please don’t hesitate to contact our sales if you are interested in any of our products.
