    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: 16402-6 16401-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD5.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: High Alloy Steel Hardness: HRC56-62
    Surface: Phosphating Color: Black

    Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools

    Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools



    Drilling Fluid Equipment Industrial Limited could supply a wide range of tong dies and inserts, and dedicated to be an expert in this field with our own specialization and valuable experience. All our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available.
    Interchangeability Warranty
    100% interchangeable with OEM design, including BJ, Varco, Web Wilson, B+V, Woolley, Eckel, Farr, Weatherford, BAASH-ROSS Cavins, TD, Rushi, but more cost-effective!

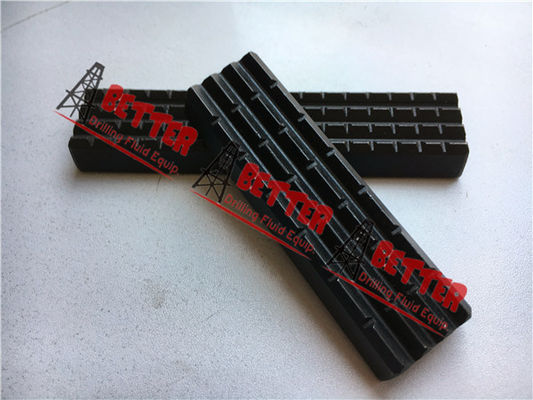

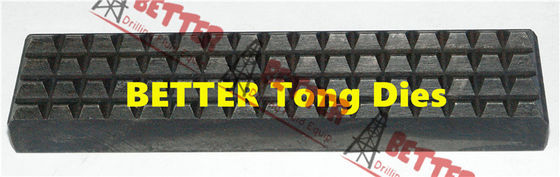

    MANUAL TONG DIES , Coarse, Plain, Blue Diamond tooth
    We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½” & 7 /8”
    Dimension: 1/2” x 1.1/4” x 5.7/8”, 1/2” x 1.1/4” x 5”, 1/2” x 1.1/4” x 3.7/8”, 3/8” x 1” x 3.7/8”
    Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631
    103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019                                                                                                                                                              Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools
    POWER TONG DIES , Coarse, Plain, Blue Diamond tooth
    BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y
    Dimension: 1/2” x 1.1/4” x 3.7/8”, 7/16” x 1 ¼” x 3 1/16”, 1 3/16” x 1 ¼” x 3 1/2”
    Part No.: 73-78, 89-114, 121-156, 89-141.5

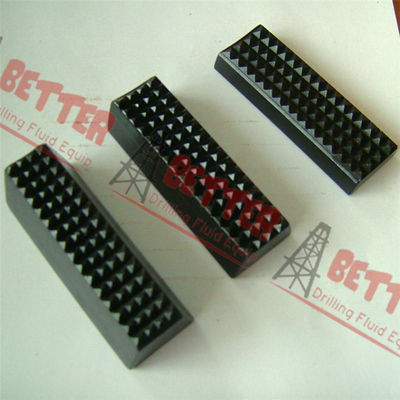

    INSERTS FOR ROTARY SLIPS VARCO MODEL SDS/SDML/SDXL & BAASH-ROSS MODEL DU
    Slip dies or slip inserts: 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, 7613-A-82, 7613-B-82, 7613-C-82, 7613-FF-81, 7613-A-81, 7613-E-81, 7613-E-82, 7613-G-81, 7613-H-81, 7613-Z-81, 7613-DD-81, 7613-EE-81

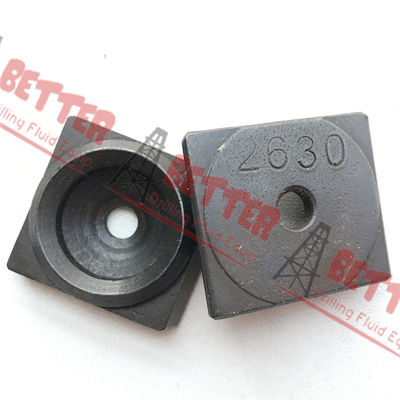

    Circular Buttons FOR VARCO DRILL COLLAR SLIPS - DCS-S / DCS-R / DCS-L & CASING SLIPS CMS-XL
    Circular Buttons: 2620, 2628, 2630, 2627, 2625, 2619, 2631, 2626
    DIES FOR VARCO SAFETY CLAMP TYPE –MP, T, WA-T, C, WA-C
    Safety clamp dies: 7624-A-21, 7624-A-4, 3310, and 3333
    INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC”
    Original Part no.: 28772, 24773, 29255, 29256, 29357, 29257, 29258, 29259, 30358, 16441, 16442, BJ16408, 24781, 24779, BJ16407, 24783, 24748
    FULL CIRCLE SLIP INSERTS FOR C CHD E CAVINS TUBING SPIDER
    Slip Insert 3 ½” x 2 3/8”, 66651-1ST, Slip Insert 3 ½” x 2 7/8”, 66651-2ST, Slip Insert 3 ½” x 3 1/2”, 66651-3ST, Slip Insert 5 ½” x 4 1/2”, 66653-2ST, TC-650-4 1/2” x 4 1/2”, 65653-3, TC-651-4 1/2” x 4”, 65653-2, TC-651-41/2” x 3 1/2”, 65653-1, TC-650-3 1/2” x 3 1/2”, 65625-3, TC-651-3 1/2” x 2 7/8”, 65625-2, TC-651-3 1/2” x 2 3/8”, 65625-1, TC-650-2 1/16” x 2 1/16”, TC-651-2 1/16” x 1.990”, TC-651-2 1/16” x 1.660”, TC-651-2 1/16” x 1.135”

    INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC”
    Slip Type Elevator Model Description Original P/N #/Set
    LYT(1.05”- 2 1/16”/ 20 TON) 2 1/16” x 2 1/16” 28772 8
    MYT( 1.315”- 2 7/8”/ 40 TON) 2 7/8” X 2 7/8” 24773 8
    2 7/8” X 2 3/8” 29255 8
    2 7/8” X 2 1/16” 29256 8
    2 7/8” X 2” 29357 8
    2 7/8” X 1 1/2”(1.9”) 29257 8
    2 7/8” X 1 1/4”(1.66”) 29258 8
    2 7/8” X 1”(1.315”) 29259 8
    YT( 1.315”- 3 1/2”/ 75 TON) 2 7/8” X 2 7/8” 24773 12
    2 7/8” X 2 3/8” 29255 12
    2 7/8” X 2 1/16” 29256 12
    2 7/8” X 2” 29357 12
    2 7/8” X 1 1/2”(1.9”) 29257 12
    2 7/8” X 1 1/4”(1.66”) 29258 12
    2 7/8” X 1”(1.315”) 29259 12
    3 1/2” X 3 1/2” 24774 24
    3 1/2” X 2 7/8” 30358 24
    HYT(2 3/8”- 3 1/2”/150 TON) 2 7/8” X 2 7/8” 24773 16
    2 7/8” X 2 3/8” 29255 16
    2 7/8” X 2 1/16” 29256 16
    3 1/2” X 3 1/2” 24774 32
    3 1/2” X 2 7/8” 30358 32
    YC(3 1/2”-7”/75 TON) 4 1/2” X 4 1/2” BJ16408 16
    4 1/2” X 4” 24781 16
    4 1/2” X 3 1/2” 24779 16
    5 1/2” X 5 1/2” BJ16407 16
    5 1/2” X 5” 24783 16
    7” x7” BJ16407 24
    7” x 6 5/8” 24748 24



    Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools

    Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools

    Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools

    Mission Dies and Inserts for National Oilwell Varco for drilling rig handling tools
