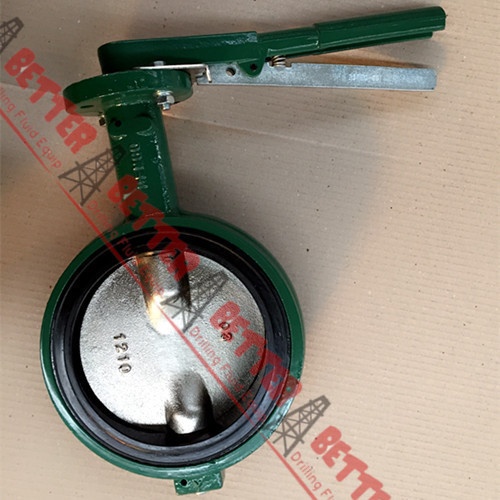

DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV

DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV

    • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV
    • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV
    • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV
    • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV
    • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV
    • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV
  • DEMCO Butterfly Valves Wafer Type Equivalent to CAMERON MUDKING DEMCO BFV

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: NE-C Wafer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD 125-135.00 per set
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Port Size: 2"-12" Standard Or Nonstandard: Standard
    Structure: Butterfly Pressure: Low Pressure
    Power: Manual Material: Alloy
    Temperature Of Media: Normal Temperature Media: Base
    Style: Mudking DEMCO

    BETTER WAFER TYPE Butterfly Valves
    Specification Features:
    • Wafer Type Butterfly Valve equiv. DEMCO
    • Size:DN50-300
    • Material:
    a) Body: CI(cast iron ,GG25 ), DI (ductile iron ,GGG40)
    b) Disc: DI,CF8,F8M ,95400,I+Nylon,DI+PTFE
    c) Seat: EPDM, NBR, TEFLON, ITON
    • Working temperature: -10 ~ +150°C
    • Nominal Pressure:PN10 PN16 conforms to API598
    • Handles available: gear operators, electric and pneumatic control actuators
    • Medium available: water, sewage, sea water, air, foodstuff and oil
    • Design standard: API609/EN593
    • End flange DINPN10/PN16, BS4504PN10/PN16, ANSI class125#/calss150#

    BETTER DEMCO Butterfly Valves Wafer and Lug
    Butterfly Valves are excel design in a variety of applications, cast in both wafer and lug patterns, which features a one-piece body for minimum weight and maximum strength and unique stem hole to ensure a dry stem work. Available in sizes 2” through 48”. Application in a wide range of industries: Chemical and petro-chemical, Agriculture, Oil and gas drilling and production, Food and beverage, Water and waste water, Cooling towers, Power, Mining, Marine, etc.

    BETTER could provide DEMCO copy butterfly valves in full series, NE-C, NE-I, NE-D, NE-I with extension stem, NE-C lug with actuator, also supply the replaceable spare parts of body, seat, disc, upper stem, lower stem, spring pin, retainer, o-ring, bearing. We also produce the general design Type A wafer and LT lug butterfly valve with lower price.
    The Cameron DEMCO NE-D butterfly valve, sizes 2" through 12" (50 mm through 300 mm), is a short-neck valve with body notches to fit popular lightweight flange patterns, making it ideal for bulk material handling and the transportation industry. Valves also will center in ASME Class 125/150 flanges.
    DEMCO NE-C butterfly valve features a one-piece body for reduced weight and increased strength. The unique stem-hole design in the disc ensures a dry stem journal, and the hard-backed seat allows ease of installation, reliable operation, and is field-replaceable without special tools.
    The Cameron DEMCO NE-I butterfly valve, size 2" through 12" (50 mm through 300 mm), is ideal for a wide range of applications in many industries, including food and beverage utilities and process flow lines. Its short neck design is offered in a wide variety of body materials. The valves are designed for installation between ASME Class 125/150 flanges.
    Technical Parameter
    Size: 2 - 12 inch
    Body type & style designation: Long neck NE-C series in wafer and lug type; Short neck NE-D series in wafer notched body; Short neck NE-I series in wafer and lug type
    Pressure Rating: 50psi, 200psi, 285psi
    Handle design: 10 position locking in basis trim, corrosion-resistant trim and sanitary trim
    Operating Temperature: -34 to 204 C degree, depending on seat material selection and application
    Standard Material Options
    Bodies: Cast iron, ductile iron, WCB
    Discs: Nickel Plated Ductile Iron, Bronze and stainless steel, Nylon coated ductile iron
    Stem: 416 and 316 Stainless steel, stem extensions are produced to customer specified lengths.
    Seat: Buna N, EPDM, Viton



    Series NE-C, 2”-12” Wafer and Lug In.(mm)
    Description22-1/2345681012
    200psiBT22119BT22120BT22121BT22122BT22123BT22124BT22125BT22126BT22127
    285psiBT22225BT22226BT22227BT22228BT22229BT22230BT22231BT22232BT22233
    50psiBT22234BT22235BT22236BT22237BT22238BT22239BT22240BT22241BT22242
    Series NE-I, 2”-12” Wafer and Lug In.(mm)
    Description22-1/2345681012
    200psiBT22128BT22129BT22130BT22131BT22132BT22133BT22134BT22135BT22136
    285psiBT22252BT22253BT22254BT22255BT22256BT22257BT22258BT22259BT22260
    50psiBT22261BT22262BT22263BT22264BT22265BT22266BT22267BT22268BT22269
    Series NE-D, 2”-12” Wafer In.(mm)
    Description22-1/2345681012
    200psiBT22181BT22129BT25093BT22183BT22184BT22185BT22134BT22186BT22136
    285psiBT22279BT22253BT25135BT22281BT22282BT22283BT22258BT22284BT22260
    50psiBT22285BT22262BT25132BT22287BT22288BT22289BT22267BT22290BT22269
    Series NF-C, 14”-36” Wafer and Lug In.(mm)
    Description14161820243036//
    150psiBT23820BT23821BT23822BT23823BT23824BT24141BT24357//
    50psiBT24440BT24441BT24442BT24443BT24444BT24924BT25061//
