    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: OTEOC 7 D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: usd500.00 per set
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Connection: LPT, FLANGE, UNION
    Pressure Scope: 0-6000psi Dial Face Size: 7-5/8 Inch

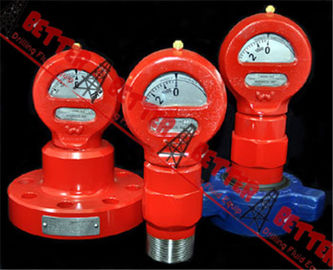

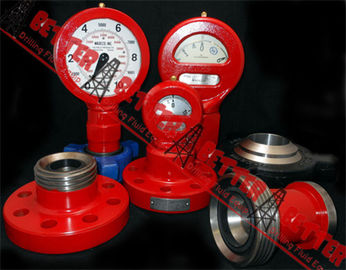

    BETTER D & F type pressure gauges are popular and common tools in the drilling well, which is equivalent to OTECO/CAMARAON style. They are designed to provide a quick, accurate display of pressure for standpipe and mud pump. This style of gauge has been proved to be a tough, dependable and reliable way to monitor pump pressure.



    Specifications

    Type D:

    • Dimensions: 7-5/8 inch diameter dial case and 14-3/4 inch in height

    • Pressure range: 0-6,000 psi(1000 psi, 3000 psi, 5000 psi, 6000 psi)

    • Standard end connection: 2 inch NPT female threaded connection

    • Interchangeable with: OTECO MODEL 7’

    BETTER Type D Mud Pressure Gauge Equal OTECO Model 7 End Connection 2"LPT/NPT Standard Walt Water Sour Gas

    Type F:

    • Dimensions: 4-7/8 inch diameter dial case and 9-7/8 inch in height.

    • Pressure range: 0-20,000 psi

    • Standard end connection: 2” NPT threaded female and 1” NPT threaded male connection.

    • Interchangeable with: OTECO MODEL  6

    ITEM MODEL END CONNECITON TRIM PRESSUE RANGE PSI
    361111 BTD6 2” NPT STD 0-1000
    361121 BTD6 2” NPT SALT 0-1000
    361211 BTD6 2” NPT STD 0-3000
    361231 BTD6 2” NPT SOUR H2S 0-3000
    361221 BTD6 2” NPT SALT 0-3000
    361411 BTD6 2” NPT STD 0-6000
    361431 BTD6 2” NPT SOUR 0-6000
    361421 BTD6 2” NPT SALT 0-6000
    361511 BTD6 2” NPT STD 0-10000
    362411 BTD6 2” NPT STD 0-42000
    361541 BTD6 1.81-10K,RJ,BX-151 STD 0-10000
    360056 BTD6 2.06-5K,RJ.R-24 STD 0-6000
    360057 BTD6 2.06-5K,RJ.R-24 SOUR 0-6000
    360000 BTD6 2.06-10K, RJ,BX-152 STD 0-10000
    360002 BTD6 2.06-10K, RJ,BX-152 SOUR 0-10000
    366431 BTD6 2”FIG1502 MALE STD 0-6000
    364701 BTD6 2”FIG1502 MALE SOUR 0-6000
    364581 BTD6 2”FIG1502 MALE STD 0-10000
    360059 BTD6 2”FIG1502 MALE SOUR 0-10000
    360058 BTD6 2”FIG1502 MALE STD 0-15000
    371211 BTF7 2”LPT STD 0-3000
    371311 BTF7 2”LPT STD 0-5000
    371411 BTF7 2”LPT STD 0-6000
    372201 BTF7 2”FIG1502 MALE STD 0-6000
    381411 BTG8 2”LPT STD 0-6000
    382041 BTG8 2.06-5K,RJ.R-24 STD 0-6000
    381541 BTG8 2.06-5K,RJ.R-24 SOUR 0-6000
    382331 BTG8 2.06-5K,RJ.R-24 STD 0-420
    382061 BTG8 2.06-10K, RJ,BX-152 STD 0-10000
    382281 BTG8 2.06-10K, RJ,BX-152 STD 0-700
    382841 BTG8 2.06-10K, RJ,BX-152 STD 0-70000
    381891 BTG8 2”FIG1502 MALE STD 0-6000
    382262 BTG8 2”FIG1502 MALE SOUR 0-6000
    382191 BTG8 2”FIG1502 MALE SOUR 0-10000
    382541 BTG8 2”FIG1502 MALE SOUR 0-42000

    Application

    Using for pressure indication of any liquid such as mud, water, oil, and for air or other gases



    Specify for Order

    *Dial capacity and scale required

    *Connection type

    *Dial range & metric or English reading

    *Standard, H2S service, or salt water

    *2” NPT connection as recommendation
