Home ProductsFlowline Manifold Fittings

DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE

DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE

    • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE
    • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE
    • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE
    • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE
    • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE
    • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE
  • DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: DEMCO DM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD25.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Port Size: 2",3",4" Standard Or Nonstandard: Standard
    Structure: Gate Pressure: High Pressure
    Power: Manual Material: Alloy
    Temperature Of Media: Normal Temperature Media: Base

    Our Gate Valve Parts, including Seat, Gate, Minor Repair Kit, and Major Repair Kit are fully interchangeable with Cameron Demco. And the quality and production technique is equivalent to the original; we are OEM for these products for foreign brand resellers.

    HOT SELLING ITEMS:

    Seat 2", Ductile Iron or 316SS/Buna-N, For Demco Gate Valve, 5000 Psi, and Weight 0.74 0 Kg.; p/n: J001876-011; J001876-081, Hs Code: 84819000

    Buna-N Seat 3", Ductile Iron or 316ss/Buna-N, F/ Demco Gate Valve, P/n: J001878-011; J001878-081

    Buna-N Seat 4" & 5x4", Ductile Iron or 316SS/Buna-N, F/ Demco Gate Valve, P/n: J002207-021; J002207-081

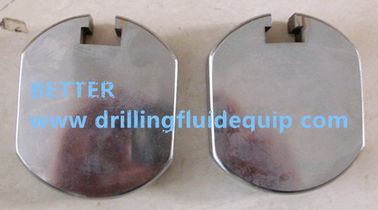

    Gate F/Gate Valve 2" 316SS or Steel Nickel Plated, 5000 PSI, P/N: J001887-008; J001887-002

    Gate F/Gate Valve 3" 316SS or Steel Nickel Plated, 5000 PSI, P/N: J001886-008; J001886-002

    Gate F/Gate Valve 4",4”x5”, 316SS or Steel Nickel Plated, 5000 PSI, P/N: J001926-002; J001926-008

    Stem 2" 303SS, 316SS, F/Gate Valve 5000 PSI, P/N: J001931-002; J001931-008

    Stem 3" 303SS, 316SS, F/Gate Valve 5000 PSI, P/N: J001932-002; J001932-008

    Stem 4"/5x4" 303SS, 316SS, F/Gate Valve 5000 PSI, P/N: J007439-002; J007439-008



    DEMCO DM MUD GATE VALVE GATE 2" 3" 4" Steel, Nickel Plated P/N 1876 1878 2207 F/Cameron DEMCO MUD GATE VALVE



    NO. DESCRIPTION MATERIAL PART NO.
    1 Lube Fitting Steel J005195
    2 Hub Assembly ASTM A536 Ductile Iron 2139713-01
    3 Pin, Lock Handle Steel J005420-18732
    4 Lock handle C-1213 J001892
    6 Stem Screw Seal Buna-N J005526-226
    7 Screw Housing C-1018 J001852
    9 Stem Screw C-1213 J001914-003
    10 Secondary Seal Buna-N J005526-212
    11 Retainer C-1213 J001941
    12 Stem Seal Assembly Buna-N/Viton J001950-001/J001950-006
    13 Bonnet ASTM A105 J001971-XXX/ J001976-XXX
    14 Stem 303 SS/316 SS J001932-002/J001932-008
    15 Gate Steel, Nickel Plated/316ss J001886-002/J001886-008
    16 Seat Assembly Inserts: Ductile Iron or Steel or 316 SS Elastomers: Buna-N Viton

    J001878-011/J001878-012

    J001878-021/J001878-022

    J001878-081/J001878-082

    17 Bonnet Seal Buna-N/Viton J005526-431/J005531-431
    19 Body A487 -
    20 Bonnet Stud ASTM A193 J002066
    21 Bonnet Stud Nut ASTM A194 2709000-08-01
    22 Body Stud ASTM A193 J002072/ J002074
    23 Body Stud Nut ASTM A194 2709000-0901/2709000-1001
    NOTE

    Major Repair Kit J025091-10321 (including Gate, Seat, Bonnet Seal, Stem Screw, Stem Screw Seal, Stem, Secondary Seal, Stem Seal Assy.)

    Minor Repair Kit J025091-00321 (including Gate, Seat, Bonnet Seal)





    We also produce DEMCO DM gate valve parts, major repair kit and minor repair kit, such as STEM SCREW, STEM SCREW SEAL, STEM, SECONDARY SEAL, STEM SEAL ASSEMBLY, BONNET SEAL, GATE, SEAT ASSEMBLY and so on for 2”,3” 4” and 4”x 5” at 2000psi,3000psi, 5000psi.

    OEM part no. For reference as below:

    Major Repair Kit J025091-10221, J025091-10321, J025091-10421

    Minor Repair Kit J025091-00221, J025091-00321, J025091-00421



    STEM SCREW M1913 M1914-003 M7416

    STEM SCREW Seal M5526-224 M5530-226

    STEM 303 SS 316 SS M1931-002 M1931-008 M1932-002 M1932-008 M7439-002 M7439-008

    SECONDARY SEAL Buna N M5530-210 M5530-212 M5526-214

    STEM SEAL ASSEMBLY M1949-001 M1949-006 M1950-001 M1950-006 M1951-001 M1951-006

    BONNET, UNCOATEDCOATED M1237-0210 M1980-0310 M7419-030 M7419-031

    BONNET SEAL Buna N Viton M5530-342 M5531-342 M5530-433 M5531-433 M5520-439 M5531-439

    GATE Steel, Nickel Plated316 SS M1887-002 M1887-008 M1886-002 M1886-008 M1926-002 M1926-008

    SEAT Ductile IronSteel315SS M1876-011 M1876-012 M1876-021 M1876-022 M1876-081 M1876-082
