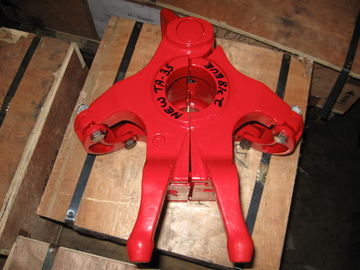

VARCO BJ TYPE A DRILL COLLAR ELEVATOR CENTER LATCH ELEVATOR ALLOY STEEL FORGED API 8C STD.
Product Details:
Place of Origin:
China
Brand Name:
BETTER
Certification:
API 7K
Model Number:
VARCO TYPE A DRILL COLLAR ELEVATOR
Payment & Shipping Terms:
Minimum Order Quantity:
1 SET
Price:
USD2500-5000 per piece
Packaging Details:
Plywood Case
Delivery Time:
20-25 days
Payment Terms:
T/T, West Union
Supply Ability:
Fast Delivery, Plenty in Stock
Contact Now
Chat Now
Detailed Product Description
Material:
Alloy Steel
Performance:
Long Service Life
Advantage:
Competitive Price
Quality:
Strict Inspection, TPI Available
COLLAR TYPE ELEVATOR "A" SERIES
Center-latch elevators are for handling collar-type drill pipe, casing and tubing. All "A" type elevators are constructed in two halves of practically the same weight, providing proper balance and easier opening and closing.In open position
All "A" type elevators feature latch and safety latch lock combinations.
Technical Specifications
Size
Type
Cap Tons
inch
mm
1.050-2 1/2
27-73
TA
35
1.66-2 7/8
42-73
TA
65
3 1/2-4 1/2
89-114
TA
65
2 3/8-2 7/8
60-73
TA
100
3 1/2-5
89-127
TA
100
4 3/4-8 5/8
121-219
TA
100
4 1/2-8 5/8
114-219
TA
150
4 3/4-8 5/8
121-219
TA AO
150
8 1/2-11 1/4
216-286
TA
150
8 1/2-11 1/4
216-286
TA AO
150
2 3/8-4 1/2
60-114
RGA
200
3 1/2-7
102-178
GA
350
3 1/2-7
102-178
GA AO
350
7-7 5/8
178-194
GGA
350
7 -7 5/8
178-194
GGA AO
350
