BJ TYPE LF Manual Tong and Tong Dies Equivalent to NOV Varvo HT-14 Tong Parts

  • BJ TYPE LF Manual Tong and Tong Dies Equivalent to NOV Varvo HT-14 Tong Parts
  • BJ TYPE LF Manual Tong and Tong Dies Equivalent to NOV Varvo HT-14 Tong Parts
  • BJ TYPE LF Manual Tong and Tong Dies Equivalent to NOV Varvo HT-14 Tong Parts
Place of Origin China
Brand Name BETTER
Certification API 7K
Model Number Type LF/HT-14 Manual Tong
Minimum Order Quantity 1 SET
Price USD2500-5000 per piece
Packaging Details Plywood Case
Delivery Time 20-25 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Steel Performance Long Service Life
Advantage Competitive Price Quality Strict Inspection, TPI Available
Leave a Message
Product Description

BJ TYPE B Manual Tong and Tong Dies Equivalent to NOV Varvo HT-55 Tong Parts



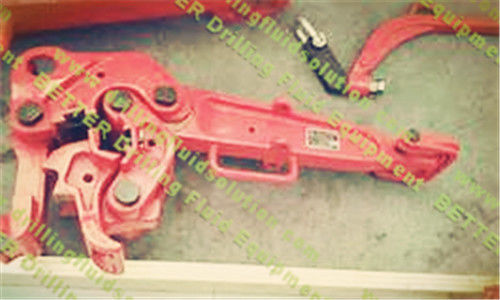

HT SERIES MANUAL TONG are offered in torque ranges from the lightweight small 16,000 lb-ft to the larger and more rugged 100,000 lb- ft and are completely interchangeable with major manufacturer's tongs (NOV Varco BJ, Mud King, and equivalent to BVM and BV tongs. Each tong features tough, heavy- duty designs with high quality alloy steel, heat-treated hinge pins and long-lasting "stagger tooth" tong dies (Blue Diamond, ), and are designed and manufactured according to API Spec 7K.

Type SDD Manual Tongs (HT-100)

Type DB Manual Tongs (HT-65)

Type B Manual Tongs (HT-55)

Type B Casing Tongs (HT-50)

Type C Manual Tongs (HT-35)

Type LF Manual Tongs (HT-14)

Type AAX Manual Tongs

Type WWB Manual Tongs

Type WWC Manual Tongs

Well Servicing Tongs

Manual Tong Dies

Tongs Die Type P/N Size Weigh per doz
in mm lb kg
BJ Tongs Blue diamond 16402-6 1/2 x 1 1/4 x 5 7/8 12.7 x 31.75 x 149.22 9 4.08
BJ DB made in 1965 and later 16402-2 1/2 x 1 1/4 x 5 7/8 12.7 x 31.75 x 149.22 9 4.08
BJ SDD, C, F and LF Blue Diamond 16401-6 1/2 x 1 1/4 x 5 12.7 x 31.75 x 127 6.75 3.06
Short dies for BJ Type B tong with 1 1/4" slot 24768 1/2 x 1 1/4 x 3 7/8 12.7 x 31.75 x 98.42 6 2.72







No. of Latch Lug Jaw Latch Step Size Range Rated Torque
in mm lb·ft kN·m



1#

 1 23/8-27/8 60.32-73







10,000







14
2 27/8-31/2 73-88.9



2#

 1 31/2-41/4 88.9-107.95
2 41/4-5 107.95-127



3#

 1 43/4-51/2 120.65-139.7



16,000



22
2 51/2-61/4 139.7-158.75



4#

 1 53/4-63/8 146.05-161.93



11,800



16
2 63/8-7 161.93-177.8

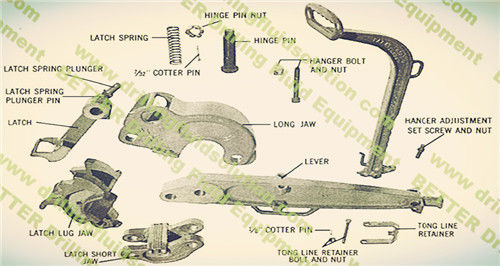

Parts list HT 14 manual tong
Item.No No. Req Description Part no. Item.No No. Req Description Part no.
  1 Lever ass’y 200641-1 25 1 Plunjer pin 23922
1 1 Lever (note 1) 26 1 Grease fitting 53201
2 1 Tong line pin retainer 23918
3 1 Safety line bolt 939099-204 27 1 Latch spring 23920
4 1 Safety line bolt nut 50508-C 28 4 Hinge pin 200649
5 1 Cotter pin 51402-8 29 4 Hinge pin nut 8150
6 1 Name plate 26119-1 30 4 Cotter pin 51435-20
7 4 Drive screw 53301-4-5 Range 2 3/8"- 3 1/2 "
8 2 Grease fitting 53201 1 Lug jaw ass’y 200645-1
  1 Hanger ass’y 200650-1 31 1 Lug jaw (note 1)
9 1 Hanger (note 1) 32 1 Grease fitting 53201
10 1 Hanger bolt 939099-165 Range 3 1/2"- 5"
11 1 Hanger bolt nut 50510-C 1 Lug jaw ass’y 200646-1
12 1 Cotter pin 51402-12 31 1 Lug jaw (note 1)
13 1 Hanger adjustment screw 939168-96 32 1 Grease fitting 53201
14 1 Hanger jam nut 50312-C Range 4 3/4"-6 1/4 "
        1 Lug jaw ass’y 200647-1
  1 Long jaw ass’y 200642-1 31 1 Lug jaw (note 1)
15 1 Long jaw (note 1) 32 1 Grease fitting 53201
16 1 Die 16401-6 Range 5 3/4"-7"
17 2 Retainer pin BJ 17194 1 Lug jaw ass’y 200648-1
18 2 Cotter pin 51402-6 31 1 Lug jaw (note 1)
  1 Short jaw ass’y 200643-1 32 1 Grease fitting 53201
19 1 Short jaw (note 1) Not in drawing
20 1 Die 16401-6 -- Warning label 201350
21 2 Retainer pin BJ 17194 -- Warning label 52319
22 2 Cotter pin 51402-6
  1 Latch ass’y 200644-1
23 1 Latch (note 1) For part numbers gripping points see page 9-32
24 1 Latch spring plunger 23915 Note 1: Available as ass’y only
