| Place of Origin: | China |
| Brand Name: | BETTER |
| Certification: | API 7K |
| Model Number: | DB/HT-65 Manual Tong |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD2500-5000 per piece |
| Packaging Details: | Plywood Case |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, West Union |
| Supply Ability: | Fast Delivery, Plenty in Stock |
| Material: | Alloy Steel | Performance: | Long Service Life |
|---|---|---|---|
| Advantage: | Competitive Price | Quality: | Strict Inspection, TPI Available |

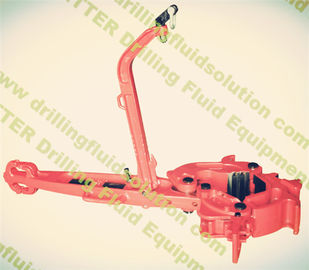

BJ TYPE DB Manual Tong and Tong Dies Equivalent to NOV Varvo HT-65 Tong Parts

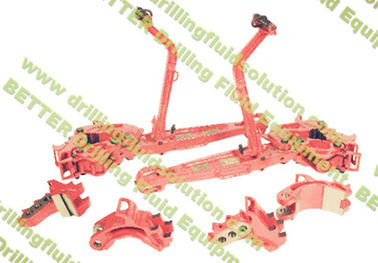

HT SERIES MANUAL TONG are offered in torque ranges from the lightweight small 16,000 lb-ft to the larger and more rugged 100,000 lb- ft and are completely interchangeable with major manufacturer's tongs (NOV Varco BJ, Mud King, and equivalent to BVM and BV tongs. Each tong features tough, heavy- duty designs with high quality alloy steel, heat-treated hinge pins and long-lasting "stagger tooth" tong dies (Blue Diamond, Pyramid), and are designed and manufactured according to API Spec 7K.
Type SDD Manual Tongs (HT-100)
Type DB Manual Tongs (HT-65)
Type B Manual Tongs (HT-55)
Type B Casing Tongs (HT-50)
Type C Manual Tongs (HT-35)
Type LF Manual Tongs (HT-14)
Type AAX Manual Tongs
Type WWB Manual Tongs
Type WWC Manual Tongs
Well Servicing Tongs
Manual Tong Dies
| Tongs | Die Type | P/N | Size | Weigh per doz | ||
| in | mm | lb | kg | |||
| BJ Tongs | Blue diamond | 16402-6 | 1/2 x 1 1/4 x 5 7/8 | 12.7 x 31.75 x 149.22 | 9 | 4.08 |
| BJ DB made in 1965 and later | Pyramid | 16402-2 | 1/2 x 1 1/4 x 5 7/8 | 12.7 x 31.75 x 149.22 | 9 | 4.08 |
| BJ SDD, C, F and LF | Blue Diamond | 16401-6 | 1/2 x 1 1/4 x 5 | 12.7 x 31.75 x 127 | 6.75 | 3.06 |
| Short dies for BJ Type B tong with 1 1/4" slot | Pyramid | 24768 | 1/2 x 1 1/4 x 3 7/8 | 12.7 x 31.75 x 98.42 | 6 | 2.72 |
| No. of Latch Lug Jaw | No. of Hinge Pin Hole | Pipe Size mm (in) |
Rated Torque (KN.m) |
Weight (Kg) |

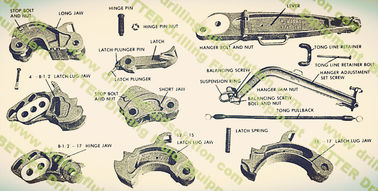

| 1# | 1 | 89~152(3.1/2~6) | 90 | 370 |
| 2 | 114~178(4.1/2~7) | |||
| 3 | 140~210(5.1/2~8.1/4) | |||
| 2# | 1 | 203~244(8~9.5/8) | 90 | |
| 2 | 244~28(9.5/8~11.1/4) | |||
| 3# | 1 | 298~324(11.3/4~12.3/4) | 55 | |
| 2 | 340~365(13.3/8~14.3/8) | |||
| 4# | 2 | 406~432(16~17) | 55 |
| Part list HT 65 manual tong | |||||||||||||||||||
| Item No | No. Req Description | Part no. | Item No | No. Req | Description | Part no. | |||||||||||||
| 1 | Lever ass’y | 200541-1 | 36 | 1 | Latch spring | 24525 | |||||||||||||
| 1 | 1 | Lever | (note 1) | 37 | 4 | Hinge pin | 200550 | ||||||||||||
| 2 | 1 | Tong line retainer | 24529 | 38 | 4 | Hinge pin nut | 24528 | ||||||||||||
| 3 | 1 | Tong line retainer bolt | 24249 | 39 | 4 | Cotter pin | 51405-24-S | ||||||||||||
| 4 | 1 | Plain washer | 50809-N-C | Range 3 1/2" - 8 1/4 " | |||||||||||||||
| 5 | 1 | Cotter pin | 51402-8 | 1 | Lug jaw ass’y | 200546-1 | |||||||||||||
| 6 | 1 | Name plate | 200551 | 40 | 1 | Lug jaw | (note 1) | ||||||||||||
| 7 | 4 | Drive screw | 53301-4-5 | 41 | 1 | Die | 16402-6 | ||||||||||||
| 8 | 2 | Grease fitting | 53201 | 42 | 2 | Die retaining pin | BJ 17194 | ||||||||||||
| 15 | 1 | Hanger bolt | 939099-546 | 43 | 2 | Cotter pin | 51402-6 | ||||||||||||
| 16 | 1 | Hanger bolt nut | 50512-C | 44 | 2 | Grease fitting | 53201 | ||||||||||||
| 17 | 1 | Cotter pin | 51402-6 | Range 8" - 11 1/4 " | |||||||||||||||
| 1 | Hanger ass’y | 203344-36 | 1 | Lug jaw ass’y | 200547-1 | ||||||||||||||
| 9 | 1 | Hanger | (note 1&2) | 40 | 1 | Lug jaw | (note 1) | ||||||||||||
| 10 | 1 | Balancing screw | 12586 | 44 | 2 | Grease fitting | 53201 | ||||||||||||
| 11 | 1 | Balancing screw bolt | 939099-596 | Range 11 3/4" - 14 3/8 " | |||||||||||||||
| 12 | 1 | Balancing screw bolt nut | 50512-C | 1 | Lug jaw ass’y | 200548-1 | |||||||||||||
| 13 | 1 | Cotter pin | 51402-16 | 40 | 1 | Lug jaw | (note 1) | ||||||||||||
| 14 | 1 | Suspension ring | BJ 12863 | Range 16" - 17" | |||||||||||||||
| 18 | 1 | Hanger adjustment screw | 203438-1 | 1 | Lug jaw ass’y | 200549-1 | |||||||||||||
| 19 | 2 | Hanger jam nut | 50314-C | 40 | 1 | Lug jaw | (note 1) | ||||||||||||
| 1 | Long jaw ass’y | 200542-1 | 1 | Hinge jaw ass’y 8 1/2" - 17" | 200545-1 | ||||||||||||||
| 20 | 1 | Long jaw | (note 1) | 45 | 1 | Hinge jaw | (note 1) | ||||||||||||
| 21 | 2 | Die | 16402-6 | 46 | 3 | Grease fitting | 53201 | ||||||||||||
| 22 | 4 | Retaining pin | BJ 17194 | 47 | 1 | Hinge pin | 200550 | ||||||||||||
| 23 | 4 | Cotter pin | 51402-6 | 48 | 1 | Hinge pin nut | 24528 | ||||||||||||
| 1 | Short jaw ass’y | 200543-1 | 49 | 1 | Cotter pin | 51405-24 | |||||||||||||
| 24 | 1 | Short jaw | (note 1) | Not in drawing | |||||||||||||||
| 25 | 1 | Die | 16402-6 | -- | Warning label | 52319 | |||||||||||||
| 26 | 2 | Retainer pin | BJ 17194 | -- | Warning label | 201350 | |||||||||||||
| 27 | 2 | Cotter pin | 51402-6 | ||||||||||||||||
| 28 | 1 | Short jaw handle | 25864 | ||||||||||||||||
| 29 | 1 | Bolt | 50012-52-C8 | ||||||||||||||||
| 30 | 1 | Nut | 50212-C | ||||||||||||||||
| 31 | 1 | Lock washer | 50912-C | ||||||||||||||||
| 1 | Latch ass’y | 200544-1 | |||||||||||||||||
| 32 | 1 | Latch | (note 1) | ||||||||||||||||
| 33 | 1 | Latch spring plunger | 24526 | For part numbers grip points, see page 9-32 | |||||||||||||||
| 34 | 1 | Plunger pin | 24530 | Note 1: Available as ass’y only | |||||||||||||||
| 35 | 1 | Grease fitting | 53201 | Note 2: Also available in lenght of 48” and 96” | |||||||||||||||
