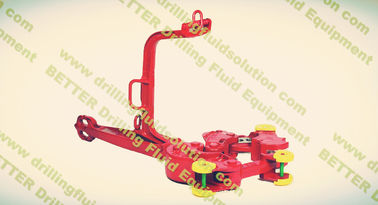

BJ TYPE SDD Manual Tong and Tong Dies Equivalent to NOV Varvo HT-100 Tong parts
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K |
| Model Number | SDD/HT-100 Manual Tong |
| Minimum Order Quantity | 1 SET |
| Price | USD2500-5000 per piece |
| Packaging Details | Plywood Case |
| Delivery Time | 20-25 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Alloy Steel | Performance | Long Service Life |
|---|---|---|---|
| Advantage | Competitive Price | Quality | Strict Inspection, TPI Available |
Product Description
BJ TYPE SDD Manual Tong and Tong Dies Equivalent to NOV Varvo HT-100 Tong parts
HT SERIES MANUAL TONG are offered in torque ranges from the lightweight small 16,000 lb-ft to the larger and more rugged 100,000 lb- ft and are completely interchangeable with major manufacturer's tongs (NOV Varco BJ, Mud King, and equivalent to BVM and BV tongs. Each tong features tough, heavy- duty designs with high quality alloy steel, heat-treated hinge pins and long-lasting "stagger tooth" tong dies (Blue Diamond, ), and are designed and manufactured according to API Spec 7K.
Type SDD Manual Tongs (HT-100)
Type DB Manual Tongs (HT-65)
Type B Manual Tongs (HT-55)
Type B Casing Tongs (HT-50)
Type C Manual Tongs (HT-35)
Type LF Manual Tongs (HT-14)
Type AAX Manual Tongs
Type WWB Manual Tongs
Type WWC Manual Tongs
Well Servicing Tongs
Manual Tong Dies

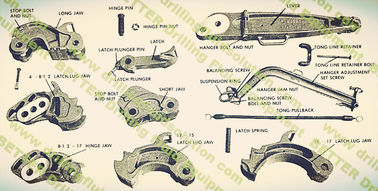

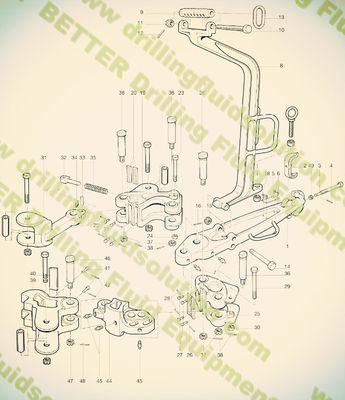

| Tongs | Die Type | P/N | Size | Weigh per doz | ||
| in | mm | lb | kg | |||
| BJ Tongs | Blue diamond | 16402-6 | 1/2 x 1 1/4 x 5 7/8 | 12.7 x 31.75 x 149.22 | 9 | 4.08 |
| BJ DB made in 1965 and later | 16402-2 | 1/2 x 1 1/4 x 5 7/8 | 12.7 x 31.75 x 149.22 | 9 | 4.08 | |
| BJ SDD, C, F and LF | Blue Diamond | 16401-6 | 1/2 x 1 1/4 x 5 | 12.7 x 31.75 x 127 | 6.75 | 3.06 |
| Short dies for BJ Type B tong with 1 1/4" slot | 24768 | 1/2 x 1 1/4 x 3 7/8 | 12.7 x 31.75 x 98.42 | 6 | 2.72 | |
| No. of Latch Lug Jaw | No. of Hinge Pin Hole | Latch Step | Size Range | Rated Torque(kN.m) | |
| in | mm | ||||
| 1# | I | 1 | 4-5 1/2 | 101.6-139.7 | 135 |
| 2 | 5 1/2-5 3/4 | 139.7-146 | |||
| II | 1 | 5 1/2-6 5/8 | 139.7-168.3 | ||
| 2 | 6 1/2-7 1/4 | 165.1-184.2 | |||
| III | 1 | 6 5/8-7 5/8 | 168.3-193.7 | ||
| 2 | 7 3/4-8 1/2 | 196.9-215.9 | |||
| 2# | I | 1 | 8 1/2-9 | 215.9-228.6 | |
| 2 | 9 1/2-10 3/4 | 241.3-273 | |||
| II | 2 | 10 3/4-12 | 273-304.8 | ||
| 3# | I | 1 | 12-12 3/4 | 304.8-323.8 | 100 |
| II | 1 | 13 3/8-14 | 339.7-355.6 | ||
| 2 | 15 | 381 | |||
| 4# | II | 1 | 15 3/4 | 400 | 135 |
| 5# | III | 1 | 16 | 406.4 | 80 |
| 2 | 17 | 431.8 | |||
| Parts list HT100 manual tong | ||||||||||||||||
| Item.No | No. Req | Description | Part no. | Item.No | No. Req | Description | Part no. | |||||||||
| 1 | Lever ass’y | 200661-1 | 35 | 1 | Latch spring | 24525 | ||||||||||
| 1 | 1 | Lever | (note 1) | 36 | 4 | Hinge pin | 200204 | |||||||||
| 2 | 1 | Tong line retainer | 24529 | 37 | 4 | Hinge pin nut | 24528 | |||||||||
| 3 | 1 | Tong line retainer bolt | 24249 | 38 | 4 | Cotter pin | 51405-24-S | |||||||||
| 4 | 1 | Cotter pin | 51402-8 | 49 | 1 | Flat washer | 50809-N-C | |||||||||
| 5 | 1 | Name plate | 200669 | Range 4" - 8 1/2 " | ||||||||||||
| 6 | 4 | Drive screw | 53301-4-5 | 1 | Lug jaw ass’y 4"-8 1/2 " | 200663-1 | ||||||||||
| 7 | 2 | Grease fitting | 53201 | 39 | 1 | Lug jaw | (note 1) | |||||||||
| 14 | 1 | Hanger bolt | 939099-556 | 40 | 1 | Die | 16401-6 | |||||||||
| 15 | 1 | Hanger bolt nut | 50512-C | 41 | 2 | Die retaining pin | BJ 17194 | |||||||||
| 16 | 1 | Cotter pin | 50402-16 | |||||||||||||
| 1 | Hanger ass’y | 203344-36 | 42 | 2 | Cotter pin | 51402-6 | ||||||||||
| 8 | 1 | Hanger | (note 1&2) | 43 | 2 | Grease fitting | 53201 | |||||||||
| 9 | 1 | Balancing screw | 12586 | Range 8 1/2" - 12" | ||||||||||||
| 10 | 1 | Balancing screw bolt | 939099-596 | 1 | Lug jaw ass’y | 200664 | ||||||||||
| 11 | 1 | Balancing screw bolt nut | 50512-C | 39 | 1 | Lug jaw | (note 1) | |||||||||
| 12 | 1 | Cotter pin | 51402-16 | Range 12" - 15" | ||||||||||||
| 13 | 1 | Suspension ring | BJ 12863 | 1 | Lug jaw ass’y | 200665 | ||||||||||
| 17 | 1 | Hanger adjustment screw | 203438-1 | 39 | 1 | Lug jaw | (note 1) | |||||||||
| 18 | 2 | Hanger jam nut | 50314-C | Range 15 3/4 " | ||||||||||||
| 1 | Long jaw ass’y | 200072-1 | 1 | Lug jaw ass’y | 200666 | |||||||||||
| 19 | 1 | Long jaw | (note 1) | 39 | 1 | Lug jaw | (note 1) | |||||||||
| 20 | 2 | Die | 16401-6 | Range 16" - 17" | ||||||||||||
| 21 | 4 | Retaining pin | BJ 17194 | 1 | Lug jaw ass’y | 200667 | ||||||||||
| 22 | 4 | Cotter pin | 51402-6 | 39 | 1 | Lug jaw | (note 1) | |||||||||
| 23 | 1 | Bolt | 50012-56-C8 | Hinge jaw ass’y 8 1/2" - 17" | 200662-1 | |||||||||||
| 24 | 1 | Nut | 50212-C | 44 | 1 | Hinge jaw | (note 1) | |||||||||
| 45 | 3 | Grease fitting | 53201 | |||||||||||||
| 1 | Short jaw ass’y | 200074-1 | 46 | 1 | Hinge pin | 200204 | ||||||||||
| 25 | 1 | Short jaw | (note 1) | 47 | 1 | Hinge pin nut | 24528 | |||||||||
| 26 | 2 | Die | 16401-6 | 48 | 1 | Cotter pin | 51405-20 | |||||||||
| 27 | 4 | Retainer pin | BJ 17194 | Not in drawing | ||||||||||||
| 28 | 4 | Cotter pin | 51402-6 | -- | Warning label | 52319 | ||||||||||
| 29 | 1 | Bolt | 939107-516 | -- | Warning label | 201350 | ||||||||||
| 30 | 1 | Nut | 50214-C | |||||||||||||
| 1 | Latch ass’y | 200073-1 | ||||||||||||||
| 31 | 1 | Latch | (note 1) | |||||||||||||
| 32 | 1 | Latch spring plunger | 24526 | For part numbers grip points, see page 9-33 | ||||||||||||
| 33 | 1 | Plunger pin | 24530 | Note 1: Available as ass’y only | ||||||||||||
| 34 | 1 | Grease fitting | 53201 | Note 2: Also available in lenght of 48” and 96” | ||||||||||||
