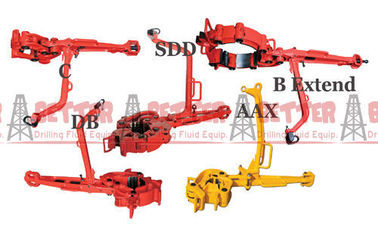

HT14, HT35, HT50, HT55, HT65, HT100, F, LF, C, B, DB, SDD MANUAL TONG ALLOY STEEL FORGED API 7K STD.

HT14, HT35, HT50, HT55, HT65, HT100, F, LF, C, B, DB, SDD MANUAL TONG

HT14 MANUAL TONG LF

Complete less lug jaws: 200640

Lug jaw assembly: 200645-1, 200646-1, 200647-1, 200648-1

HT35 MANUAL TONG C

Complete with long lever, less lug jaw: 30117

Long lever 7 x 10 3/4 less lug jaw: 200620

Short lever 7 5/8 x 10 3/4 less lug jaws: 200620-1

Long lever 2 3/8 x 7 less lug jaw: 200620-2

Short lever 2 3/8 x 7 less lug jaw: 200620-3

Lug jaw assembly 2 3/8 -3.668: 30728-1, 200076-1

Lug jaw assembly 2 7/8 -4 1/4: 30727-1, 200077-1

Lug jaw assembly 3 1/2 -5 1/4: 11939-4, 200078-1

Lug jaw assembly 4 1/2- 6 1/2: 11943-1

Lug jaw assembly 5 1/4 -7: 11940-2, 200079-1

Latch lug jaw assembly 7 -8 5/8: 11941-2

Latch lug jaw assembly 9 5/8 -10 3/4: 13799-1

Hinge jaw only 7 -8 5/8: 11942-1

Hinge jaw only 9 5/8 -10 3/4: 13798-1

Hinge and lug jaw assembly 7- 8 5/8: 200080-2

Hinge and lug jaw assembly 9 5/8 -10 3/4: 200081-2

Short jaw assembly: 11513-1, 200625-1, 200624-1

Long jaw assembly: 11511-1, 200623-1

Long Lever assembly 40 1/2: 11516-2, 200621-1

Short Lever assembly 30 1/8: 11883, 200622-1

Tong line pin: 11517-1, 11523, 200633, 25468

Hanger assembly: 13264-1, 12586, 200630-1

Hanger balancing screw: 30321, 30329, 12586, 939099-596

Suspension ring: 12863, BJ 12863

Adjustment nut and bolt: 939168-133, 203438-1

Threaded hinge pin: 11520-1, 11521-1, 200629

Hinge pin nut: 11522, 200632

Hinge pin retainer pin: 939667-16, 51506-8, 200631, 200629

Latch Assembly: 11933-2, 200626-1

Latch spring: 9561

Tong dies 1/2x 1 1/4 x 5: 16401-2, 16401-6

Tong dies retainer pin: 17194

Cotter pin: 51402-6

HT55 MANUAL TONG B

Complete with long lever, less lug jaw: 200560, 30114

Complete with short lever, less lug jaw: 200560-1

Lug jaw assembly 3 1/2 - 5: 200083-1, 11765-1

Lug jaw assembly 5 -6 3/4: 200084-1, 11196-3

Lug jaw assembly 6 5/8 - 9: 200085-1, 11196-2

Lug jaw assembly 9 - 10 3/4: 200086-1, 11297-1

Lug jaw assembly 11 3/4: 200087-1, 11285-1

Lug jaw assembly 12: 200088-1

Lug jaw assembly 12 3/4 - 13: 200089-1

Lug jaw assembly 13 3/8: 200090-1, 24592-1

Short jaw assembly: 11197-1, 200564-1

Long jaw assembly: 11194-1, 200566-1

Long Lever assembly 48: 12434-2, 200561-1

Short Lever assembly 36: 9568, 200562-1

Tong line pin: 9574, 67270, 200570, 25468

Hanger assembly: 26782, 26783, 203344-36

Hanger balancing screw: 12586, 939099-596, 940985-8

Suspension ring: 12863

Threaded hinge pin: 11140, 11141

Hinge pin nut: 11142, 200572

Hinge pin retainer pin: 939667-77, 17194

Latch Assembly: 11138-1, 200565-1

Latch spring: 9561

Tong dies 1/2x 1 1/4 x 5 7/8: 16402-2, 16402-6

Tong dies retainer pin: 17194

Cotter pin: 51402-6

HT65 MANUAL TONG DB

Complete less lug jaw: 200540

Tong complete with long lever (less lug jaws): 30111

Lug jaw assembly 3 1/2 -8 1/4: 200546-1, 30062-2

Lug jaw assembly 8 -11 1/4: 200547-1, 30066-2

Lug jaw assembly 11 3/4 -14 3/8: 200548-1, 30067

Lug jaw assembly 16 - 17: 200549-1, 30069

Hinge jaw assembly 8-17: 200545-1, 30068-3

Short jaw assembly: 30065-2

Long jaw assembly: 30064-2

Lever assembly: 25854-1

Hanger assembly: 26782, 26783

Hanger balancing screw: 12586, 939099-596, 940985-8

Suspension ring: 12863

Adjustment nut and bolt: 939168-133

Threaded hinge pin: 25860

Hinge pin nut: 24528

Latch Assembly: 25853-1

Latch spring plunger: 24526

Latch spring: 24525

Tong dies 1/2x 1 1/4 x 5 7/8: 16402-2, 16402-6

Tong dies retainer pin: 17194

HT100 MANUAL TONG SDD

Complete less lug jaw: 200071

Tong complete with long lever (less lug jaws): 31054

Lug jaw assembly 4 - 8 1/2: 200663-1, 31059-1

Lug jaw assembly 8 1/2 - 12: 200664, 31060

Lug jaw assembly 12-15: 200665, 31061

Lug jaw assembly 15 3/4: 200666, 31063

Lug jaw assembly 16-17: 200667, 31062

Hinge jaw assy. 8 1/2 - 17: 200662-1, 31065-1

Short jaw assembly: 31057-1

Long jaw assembly: 31056-1

Lever assembly: 31055

Hanger assembly: 26782, 26783

Hanger balancing screw: 12586, 939099-596, 940985-8

Suspension ring: 12863

Adjustment nut and bolt:939168-133

Threaded hinge pin: 31064

Hinge pin nut: 24528

Latch Assembly: 31058-1

Latch spring plunger: 24526

Latch spring: 24525

Tong dies 1/2x 1 1/4 x 5 7/8: 16402-2

Tong dies retainer pin: 17194

HT50 MANUAL TONG

Complete with long lever, less lug jaw: 200560

Complete with short lever, less lug jaw: 200560-1

Casing head assy 13 3/8 -14 1/2: 200580-1

Casing head assy 14 1/2 - 16: 200580-2

Casing head assy 16 -17 1/2: 200580-3

Casing head assy 17 1/2 - 19: 200580-4

Casing head assy 19 - 20: 200580-5

Casing head assy 20 -21 1/2: 200580-6

Casing head assy 21 1/2 - 23: 200580-7

Casing head assy 24 -25 1/2: 200580-8

Casing head assy 25 1/2 - 27: 200600-1

Casing head assy 27 - 27 1/2: 200600-2

Casing head assy 28 1/2 -30: 200600-3

Casing head assy 30 -31 5/8: 200600-4

Casing head assy 31 1/2 - 33: 200600-5

Casing head assy 33 - 34 1/2: 200600-6

Casing head assy 34 1/2 - 36: 200600-7

Hinge jaw ass’y : 200584-2, 200585-1, 200586-1, 200604-1, 200605-1, 200606-1
