BETTER Hydraulic Drill Pipe Tong Model BT-ZQ203/125

Place of Origin CHINA
Brand Name BETTER
Certification API 7K,8A
Model Number ZQ203/125
Minimum Order Quantity 1 pc
Packaging Details Plywood case
Delivery Time 30 Days
Payment Terms TT
Supply Ability 1000 Set per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty One Year Low Gear Rated Torque 125000N.m 92250ft.lbs
Pipe Size Range 5"- 8" Model BT-ZQ203/125
Power Source Hydraulic System Advantage High-efficiency
High Gear Rated Torque 10000N.m 7380ft.lbs Weight Varies Depending On Model
Leave a Message
Product Description

BETTER supplies the drill pipe tong which is applicable in the drilling and safe high working efficiency. Model ZQ127-25 Drill Pipe Tong is open type power tong for making up and breaking out 2 3/8"-3 1/2" drill pipe, 2 3/8"-4 1/2" tubing and 4 1/2"-5 1/2" casing in the well work.



Features:

* Using pneumatic power to shift and drive backup tong.

* It is a integral mechanism made by spin tong and torque tong.

* Changing gear allowed during operation.

* New or old drilling pipe joint could be clamped reliably.

* Both directions could run the maximum torque and rotation speed.

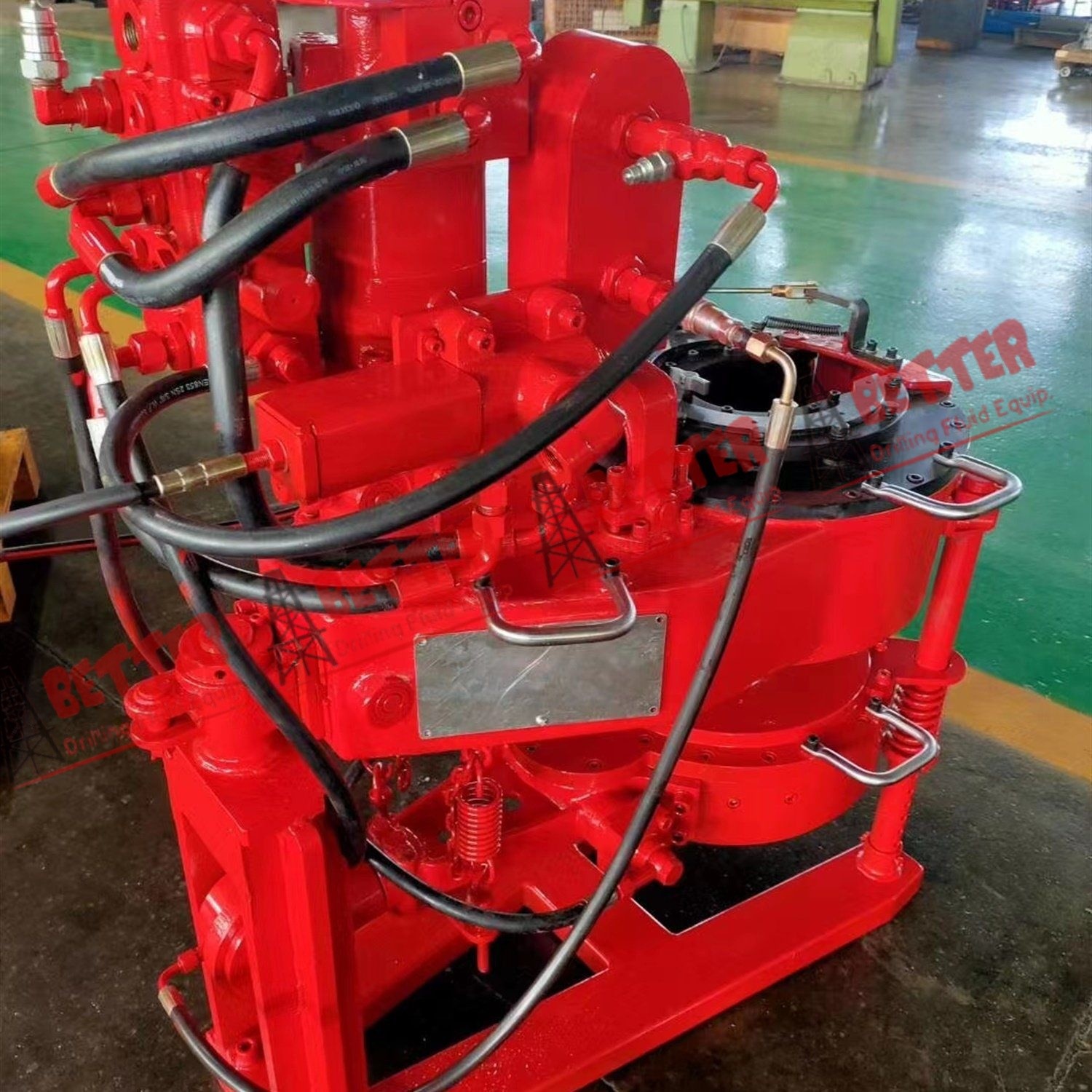

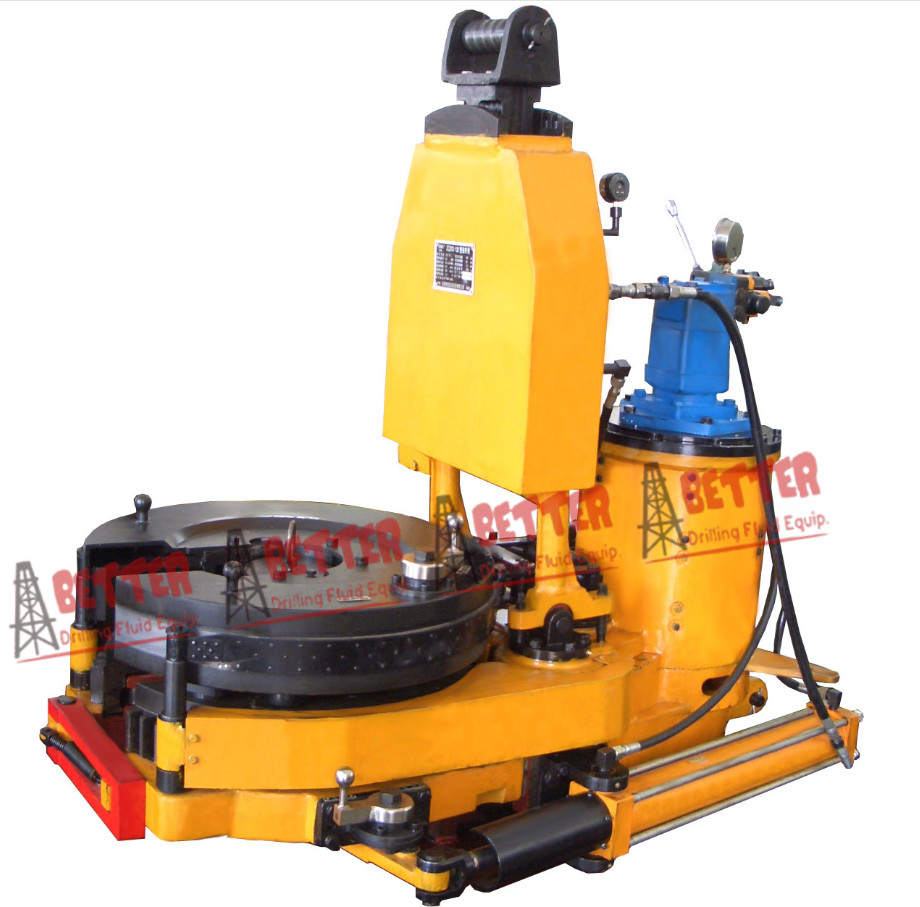

Detailed Photos

BETTER Hydraulic Drill Pipe Tong Model BT-ZQ203/125 0BETTER Hydraulic Drill Pipe Tong Model BT-ZQ203/125 1


Main Specification Of Hydraulic Power Tong



Model ZQ127/25 ZQ203/125 ZQ162-50 ZQ203-100
Pipe Size Range of Master Tong

Φ73-140

27/8''- 51/2''

Φ127-203

5"- 8"

Φ85-162

23/8" - 5"

Φ101-203

31/2''- 8''

High Gear Rated Torque (N.m/ft-lbs)

3500

2581

10000

7380

9500

7007

9500

7007

Low Gear Rated Torque (N.m/ft-lbs)

25000

18349

125000

92250

50000

36880

100000

73756

High Gear Rated Speed (r/min) ≤65 33  60 40
Low Gear Rated Speed (r/min) ≤10 2.2  4.1 2.7
Rated Operation Pressure (MPa/psi)

16

2320

18

2610

14

2030

16

2320

Max. Flow (L/min/gpm)

120

32

120

32

120

31.7

114

30

Pneumatic Operation Pressure
0.6~1.0MPa
72.5~130.5

0.5~0.9MPa

72.5~130.5psi

0.5~0.9MPa

72.5~130.5psi

Dimension :L x W x H (mm) 1250x 780 x 1000

1750 x 1060 x 1680

1570 x 800 x 1190 1700 x 1000 x 1400
Weight(including Backup Tong)

650kg

1433lbs

2500 kg

5512 lbs

1500kg

3310lbs

2400kg

5291lbs


Contact us


BETTER Drilling Fluid Equipment Industrial Limited
Sales Assistant
Att.: Kim Qiu
http://www.drillingfluidsolution.com
sales@drillingfluidsolution.com
WhatsApp/wechat:18764068509






Company Profile


BETTER Drilling Fluid Solution Limited

was established in 2016, which is recognized as a qualified manufacturer and supplier of high-performance mission style centrifugal pumps, valves, flowline control products and oilfield equipment. Our products serves the onshore and offshore oil & gas drilling, water well drilling, chemical process sewage treatment, infrastructure, environmental, geotechnical, geothermal, HDD, and mineral exploration industries. All of our pump and products follows strict quality management system, from design, production, sale to after-sales. Our team has rich experience and knowledge to support our pump products to each region and markets. We understand what it takes to provide the best solutions in the drilling industries, as it is a 24-hour drilling industry where there is a great need for products with good quality and fast delivery of wear parts and /or service.

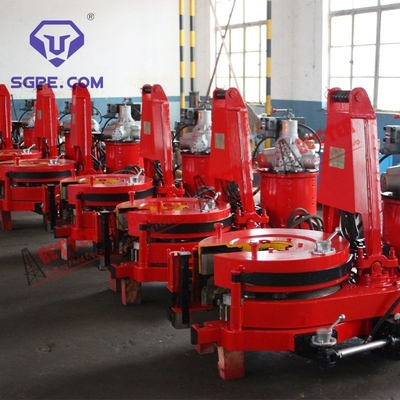

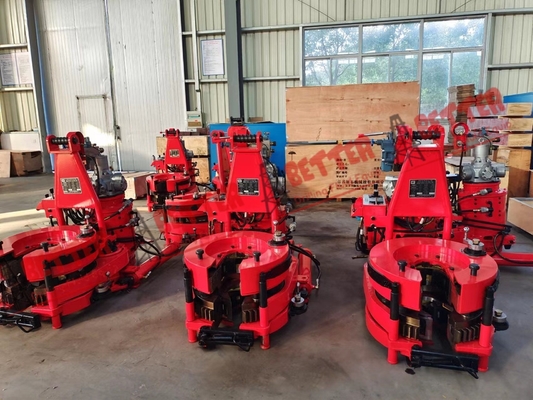

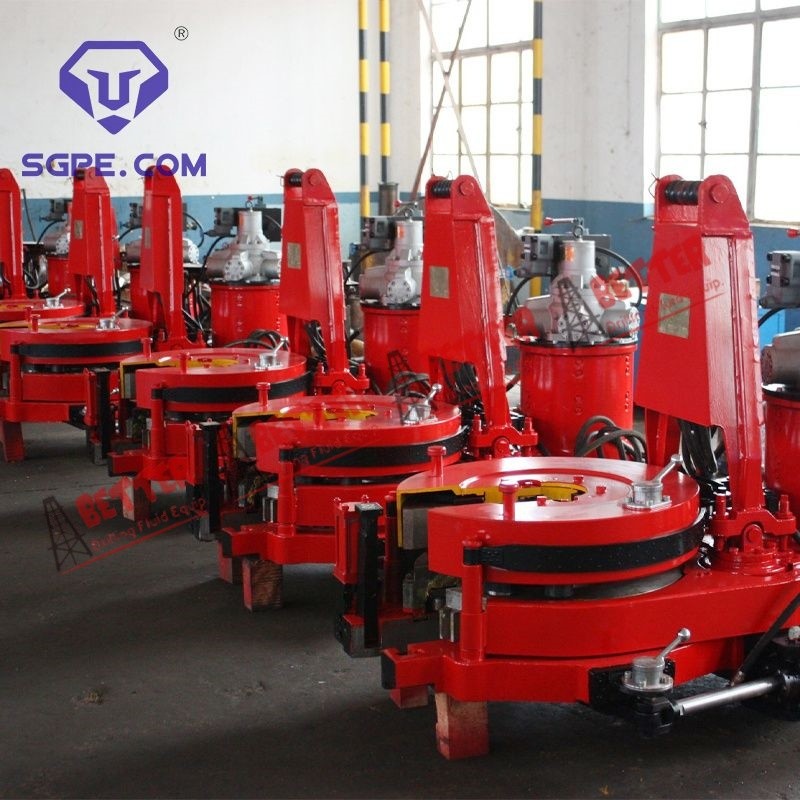

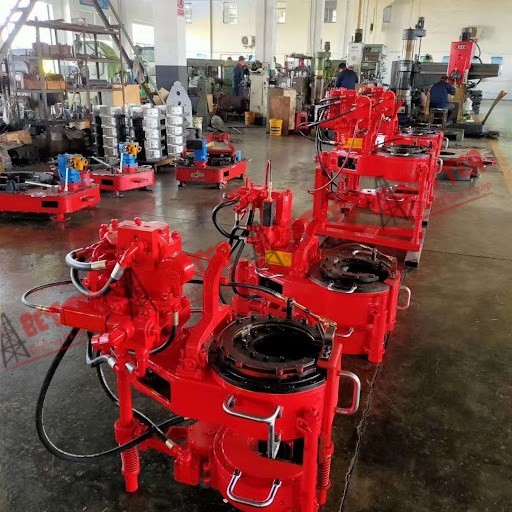

Our Factory


BETTER Hydraulic Drill Pipe Tong Model BT-ZQ203/125 2     BETTER Hydraulic Drill Pipe Tong Model BT-ZQ203/125 3    BETTER Hydraulic Drill Pipe Tong Model BT-ZQ203/125 4

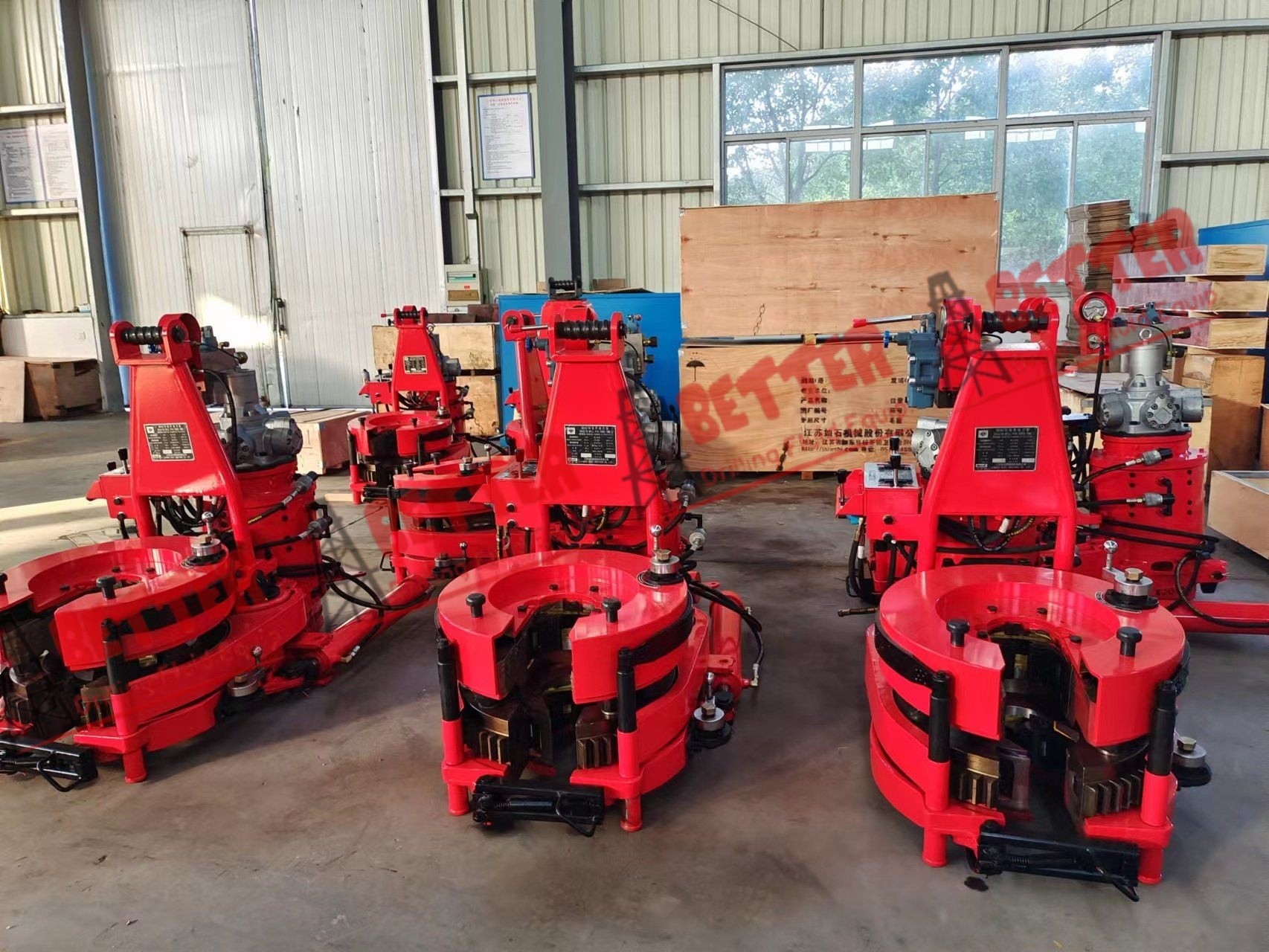

Packing And Shipping
