26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes

26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes

    • 26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes
    • 26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes
    • 26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes
    • 26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes
    • 26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes
  • 26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes

    Product Details:

    Place of Origin: China
    Brand Name: KEMPER
    Certification: API, ISO
    Model Number: 34"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD1200.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Cast Iron Color: Green, Blue,red

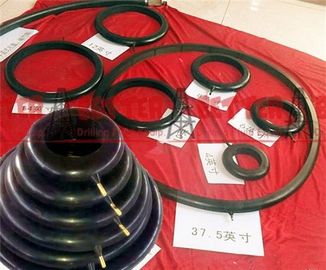

    Air Tube: NBR Rubber

    BETTER Air O Grip Union (Seal-O-Grip Unions, Pneumatic Union, Air Seal Union) is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system. Air-Unions are designed for 150 PSI maximum line pressure

    Both of BETTER Air Union and Tank Union styles are interchangeable with other major brands, Bulldog, C&C, Kemper.



    Features

    Fast, easy make-up without close alignment

    Allows pipe expansion or misalignment w/o breaking the seal

    No nuts, bolts, or wrenches required

    Available in 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 21 1/4”, 22”, 24”, 26”, 28”, 30”, 32”, 34”, 36”, 37.5”,46”

    26 INCH Reverse Air O Grip Union Large Size Pneumatic Tyre Union for mud tank or pipeline testing with air tubes





    Line Pipe
    Size
    Line Pipe
    O.D.
    Max. Misalignment
    Tolerance
    Seal-O-Grip Union Dimensions in mm
    A
    B
    C
    D
    E
    F
    4-inch
    4 ½”(114.3mm)
    213
    114
    148
    168
    57
    110
    6-inch
    6 5/8”(168.3mm)
    14°
    267
    168
    199
    219
    57
    110
    8-inch



    8 5/8”(219.1mm)
    14°
    318
    219
    253
    273
    57
    110
    10-inch
    10 3/4” (273.1mm)
    14°
    372
    273
    305
    325
    57
    120
    12-inch
    12 3/4”(323.9mm)
    14°
    424
    325
    336
    356
    57
    120
    14-inch
    14” (355.6mm)
    14°
    476
    356
    386
    406
    57
    120
    16-inch
    16”(406.4mm)
    14°
    507
    406
    437
    457
    57
    1
