    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: weco

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: OFFER
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Metal And Rubber Shape: Ring Gasket
    Standard Or Nonstandard: Standard Size: 1-6"

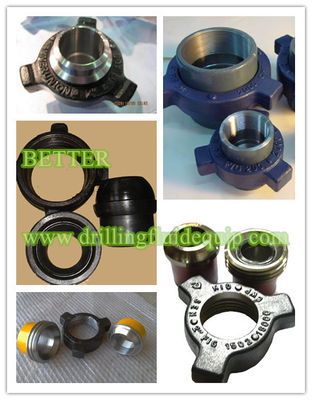

    A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union, thereby preventing the seal assembly from falling out of the threaded end when it is inverted.



    Some profiles such as Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.



    BETTER supplies series of compatible Hammer Union Seals (Lip Seals) for Standard Service in Nitrile and Fluoroelastomer for Sour Gas Service for Weco Hammer Union Seals and Guiberson Hammer Union Seals. The manufacturing process is closely monitored so as to guarantee the correct hardness and composition.



    Please contact us for more information on our Hammer Union Seals (Lip Seals).



    BETTER provides a full range of hammer union seals ,O-ring, Lip seal rings, stainless steel backed seal rings, and brass backed seal rings are available in Buna, Viton, Buna with a brass ring, Viton with a stainless steel ring, and Teflon. There are other sizes and materials available.
    Materials: Union Seals in 1” to 4” line pipe sizes in:
    •80 Nitrile
    •80 Viton
    •90 Viton
    •80 HNBR
    We manufacture compatible Hammer Union Seals (Lip Seal) for Weco™ Hammer Union Seals, Fig.100, Fig.200, Fig.206, Fig.400, Fig.600, Fig.602, Fig.1002, Fig.1003, Fig.1502, Fig.2002, Fig.2202.



    Pipe size Lenght Nut radius Material Weight
    nut sub
    in mm in mm in mm Black yellow Ibs kgs
    2 50.8 3 5/8 92.1 215/16 74.6 SF SF 5.25 2.4
    21/2 63.8 4 1/4 108.0 35/8 92.1 SF SF 8.0 3.6
    3 76.2 415/16 125.4 41/16 103.2 SF SF 14.0 6.4
    4 101.6 515/16 150.8 425/32 121.4 SF SF 23.0 10.4
    6 152.4 65/8 168.3 67/16 163.5 SF SF 44.5 20.2
    8 203.2 71/4 184.2 711/16 195.3 SF SF 61.0 27.7



    Pipe size Length Nut radius Material Weight
    Nut Sub
    in mm in mm in mm Blue Gray Ibs kgs
    1 25.4 211/16 68.3 115/16 49.2 SC/SF CDB/SF 1.75 0.8
    11/4 31.7 27/8 73.0 23/8 60.3 SF SF 2.37 1.1
    11/2 38.1 27/8 73.0 23/8 60.3 SF SF 2.37 1.1
    2 50.8 35/16 84.1 229/32 73.8 SF SF 2.25 2.4
    21/2 63.8 41/16 103.2 311/16 93.7 SF SF 10.0 4.5
    3 76.2 413/8 111.1 37/8 98.4 SF SF 15.25 6.9
    4 101.6 413/16 122.2 5 127.0 SF SF 20.0 9.1
    6 152.4 65/8 168.3 67/16 163.5 SF SF 44.5 20.2
    8 203.2 71/4 184.2 711/16 195.3 SF SF 61.0

    27.7





    FMC WECO ABCO Hammer Union Seals Lip Seals stainless steel backed seal rings,brass backed seal rings in viton,buna-n.

    FMC WECO ABCO Hammer Union Seals Lip Seals stainless steel backed seal rings,brass backed seal rings in viton,buna-n.

    Please don’t hesitate to contact our sales if you are interested in any of our products.
