    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K
    Model Number: Varco Type CMS-XL Casing Slips

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD2500-5000 per piece
    Packaging Details: Plywood Case
    Delivery Time: 20-25 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Performance: Long Service Life
    Advantage: Competitive Price Quality: Strict Inspection, TPI Available

    Casing Slips

    Varco CMS-XL slips are designed to handle casing from 6 5/8" to 30 inches OD. All slips have an API taper of 4"/ft on the diameters.
    All CP-S slips (Conductor Pipe Slip) are furnished with 4 handles.

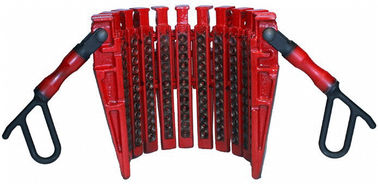

    Varco Type CMS-XL Casing Slips and Slip Insert Circular Buttons Alloy Steel Forged API 7K STD.

    CSG Size 6 5/8" 7" 7 5/8" 8 5/8" 9 5/8" 10 3/4" 11 3/4" 13 3/8" 16" 18 5/8" 20" 24" 26" 30"
    CMS-XL 5315 5301 5398 5305 5307 5309 5311 5313 5325 5333 5329 5331 5346 5342
    CP-S                       5338 5344 5340

    CMS-XL

    Description

    P/N Weight
    lb kg
    Segment-Right end 5320 12 5.5
    Segment --Left end 5321 12 5.5
    Segment-Intermediate 5322 12 5.5
    Hinge pin with Cotter Pin 2525 0.6 0.3
    Handle pin iwth washer and cotter pin 3769 0.5 0.2
    Handle for right and left segment 3765 3.5 1.5
    Handle for intermediate segment 3766 4 2
    Retaining screw with lock washer 3748 0.3 0.14



    Circular Buttons for CMS-XL & CP-S slips ps Slip set Casing OD (in) Circular Buttons
    P/N lb kg qty
    CMS-XL 6 5/8 2628-144 36 16 144
    7 2619-144 36 16 144
    7 5/8 2630-144 24 11 144
    8 5/8 2630-156 26 12 156
    9 5/8 2630-168 28 13 168
    10 3/4 2630-180 30 14 180
    11 3/4 2627-204 51 23 204
    13 3/8 2630-216 36 16 216
    16 2631-252 43 19.5 252
    18 5/8 2626-300 60 27 300
    20 2631-312 52 23.3 312
    24 2631-360 60 27 360
    26 2631-396 64 29 396
    30 2631-444 72 32.5 444
    CP-S 24 2631-156 26 12 156
    26 2631-168 28 13 168
    30 2631-192 32 14.5 192



    Circular Buttons for CMS-XL & CP-S slips ps

    Pipe OD (inch)

    24 26 30
    P/N-Slip c/w Circular Buttons 5338 5344 5340
    Weight c/w circular buttons lb (kg) 276 (125) 296 (134) 319 (145)
    Total No. Segments 13 14 16
    Total No. Hinge spacer 12 13 15
