Varco Type SDS, SDML, and SDXL Rotary Slips and Slip Inserts, Drill Pipe Slip Alloy Steel Forged High Strength

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Alloy Steel | Performance | Long Service Life |
---|---|---|---|
Advantage | Competitive Price | Quality | Strict Inspection, TPI Available |

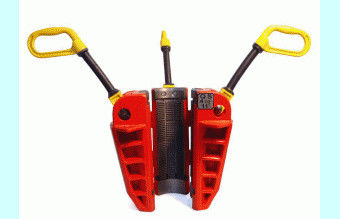

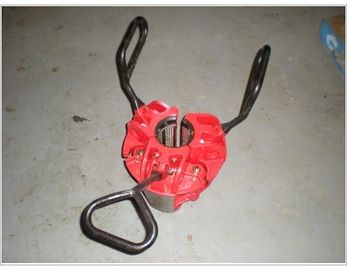

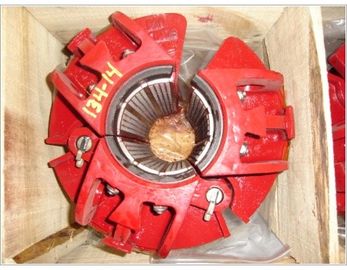

Varco design SDS, SDML, and SDXL Rotary Slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe thru a superior wraparound configuration and unique insert design, these slips prevent bottlenecking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.
Please don't hesitate to contact our sales if you are interested in any of our products.
Sales Assistant
Att.: Mike Lee
BETTER Drilling Fluid Equipment Industrial Limited
http://www.drillingfluidsolution.com
sales[a]drillingfluidequip.com
WhatsApp/wechat:18764068509
SDS-Short Rotary Slips Slip Body size (inch) |
3 1/2'' | 4 1/2'' | ||||
API pipe size (OD inch) | 2 3/8 | 2 7/8 | 3 1/2 | 3 1/2 | 4 | 4 1/2 |
Parts No. slips c/w inserts | 3901 | 3903 | 3905 | 3907 | 3909 | 3911 |
Weight. Slips c/w inserts lb (kg) | 117 (53) | 111 (50) | 107 (48.5) | 143 (65) | 136 (62) | 127 (58) |
Qty of inserts | 24 | 24 | 24 | 36 | 36 | 36 |
Weight of inserts lb (kg) | 21 (9.5) | 16 (7) | 10 (4.5) | 32 (14.5) | 25 (11) | 16 (7) |
SDML-Medium Rotary Slips Slips Body Size (inch) |
3 1/2'' | 4 1/2'' | 5'' | 5 1/2'' | ||||||||
API pipe size (OD inch) | 2 3/8 | 2 7/8 | 3 1/2 | 3 1/2 | 4 | 4 1/2 | 4 | 4 1/2 | 5 | 4 1/2 | 5 | 5 1/2 |
P/N Slips c/w inserts | 15524 | 15523 | 15522 | 15563 | 15564 | 15565 | 15567 | 15568 | 15569 | 15571 | 15572 | 15573 |
Weight slips c/w inserts lb (kg) | 193 (87.5) | 188 (85) | 180 (81.5) | 207 (94) | 199 (90) | 188 (81.5) | 204 (92.5) | 196 (89) | 185 (84) | 200 (91) | 185 (84) | 181 (82) |
Qty of inserts | 30 | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Weight of inserts lb (kg) | 26 (12) | 22 (9.5) | 13 (6) | 39 (17.5) | 31 (14) | 20 (9) | 39 (17.5) | 31 (14) | 20 (9) | 39 (17.5) | 31 (14) | 20 (9) |
SDXL-Extra Long Rotary Slips SDXL & SDL Inserts Slips Body Size (inch) |
4 1/2'' | 5'' | 5 1/2'' | ||||||
API PIpe OD (Inch) | 3 1/2 | 4 | 4 1/2 | 4 | 4 1/2 | 5 | 4 1/2 | 5 | 5 1/2 |
P/N slips c/winserts | 15515 | 15514 | 15513 | 15518 | 15517 | 15516 | 15521 | 15520 | 15519 |
Weight slips c/w inserts lb (kg) | 229 (104) | 219 (99) | 205(93) | 237(105) | 227(103) | 213(96.5) | 234(106) | 224(101.5) | 210(95) |
Qty of inserts | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 |
weight of inserts lb (kg) | 47(21) | 37(17) | 23(10.5) | 47(21) | 37(17) | 23(10.5) | 47(21) | 37(17) | 23(10.5) |
