Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A

Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A

    • Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A
    • Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A
    • Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A
    • Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A
    • Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A
  • Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A

    Product Details:

    Place of Origin: China
    Brand Name: Varco
    Certification: API 7K
    Model Number: 24768

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 sets
    Price: USD2.5-3.5 PER PIECE
    Packaging Details: plywood case
    Delivery Time: 5-7 DAYS
    Payment Terms: T/T, Western Union
    Supply Ability: 10000set per year
    Contact Now
    Detailed Product Description
    Material: 20CrMoTi Hardness: HRC56-62
    Surface Treatment: Black Phosphating

    BETTER could supply a wide range of tong dies and inserts, all our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available.

    Interchangeability Warranty

    100% interchangeable with OEM design, including BJ, Varco, Web Wilson, B+V, Woolley, Eckel, Farr, Weatherford, BAASH-ROSS Cavins, TD, Rushi, but more cost-effective!

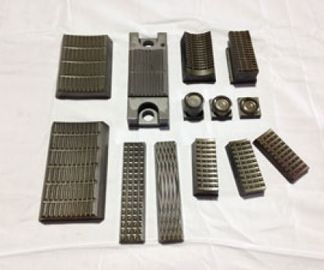

    MANUAL TONG DIES , Coarse, Plain, Blue Diamond Tooth

    We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½” & 7 /8”

    Dimension: 1/2 x 1.1/4 x 5.7/8, 1/2 x 1.1/4 x 5, 1/2 x 1.1/4 x 3.7/8, 3/8 x 1 x 3.7/8

    Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631

    103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019

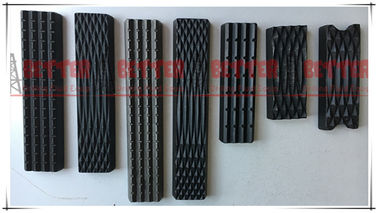

    POWER TONG DIES , Coarse, Plain, Blue Diamond Tooth

    We can supply power tong dies for BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y in size of 1/2 x 1.1/4 x 3.7/8, 7/16 x 1 ¼ x 3 1/16, 1 3/16 x 1 ¼ x 3 1/2, etc.

    Interchangeability warranty

    100% interchangeable with OEM design, but more cost-effective!

    VARCO BJ equivalent part no:

    Blue diamond, , coarse tong dies: 16401, 16401-1, 16401-2, 16401-6, 16402, 16402-1, 16402-2, 16402-6

    1/2x 1 1/4x 5 7/8, 1/2x 1 1/4x 5, 1/2x 1 1/4x 3 7/8,

    Slip dies or slip inserts: 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, 7613-A-82, 7613-B-82, 7613-C-82, 7613-FF-81, 7613-A-81, 7613-E-81, 7613-E-82, 7613-G-81, 7613-H-81, 7613-Z-81, 7613-DD-81, 7613-EE-81

    Circular Buttons: 2620, 2628, 2630, 2627, 2625, 2619, 2631, 2626

    Safety clamp dies: 7624-A-21, 7624-A-4, 3310, 3333

    INSERTS FOR BJ SLIP TYPE ELEVATORS LYT MYT YT HYT YC

    28772,24773,29255,29256,29357,29257,29258,29259,24773,29255,29256,29357,29257,29258,29259,24774,30358,

    24773,29255,29256,24774,30358,16441/350103,16442,16408/350105,24781/350504,24779/350903,BJ16407/350107,24783/350506,BJ16407/350110,24748/350409

    Full Circle Inserts for Cavins Type C & CHD spider

    TC-650-2 1/16” x 2 1/16”

    TC-651-2 1/16” x 1.990”

    TC-651-2 1/16” x 1.660”

    TC-651-2 1/16” x 1.135”

    TC-650-3 1/2” x 3 1/2”, 65652-3

    TC-651-3 1/2” x 2 7/8”, 65652-2

    TC-651-3 1/2” x 2 3/8”, 65652-1

    TC-650-4 1/2” x 4 1/2”, 65653-3

    TC-651-4 1/2” x 4”, 65653-2

    TC-651-41/2” x 3 1/2”, 65653-1

    66651-1ST

    66651-2ST

    66651-3ST

    66653-2ST

    DIES FOR POWER TONGS
    Tong Type Model Weight
    BJ Drill Pipe Power Tong 1/2” x 1.1/4” x 3.7/8” COARSE STRAIGHT & BENT 10 oz.
    Drill Pipe Power Tong ZQ 203-100/125 12 oz.
    Tubing Power Tong XYQ-3C 10 oz.
    XYQ-12A 9 oz.
    Tubing Power Tong FOSTER 58-93-R OR PECK 631 15 oz.

     Power Tong Dies 24768 8260 alloy steel Black Phosphating F/BJ Drill Pipe Power Tong ZQ 203-100/125 XYQ-12A
