Product Details
Test Standard API SPEC 6A Material Alloy Steel Forged Body
Material Class DD, EE, FF To NACE MR-01-75 Specification Level PSL1~4
Performance Level PR1, PR2 Size 2", 3", 4", 4"x5"
Working Pressure Up To 5000 Psi Medium Oil, Gas, Water
Connection Threaded, Butweld, Flange, Union Feature Interchangeable With DEMCO DM
Highlight

MUD GATE VALVE

,

DEMCO GATE VALVE

,

OTECO GATE VALVE

Leave a Message
Product Description

BETTER Drilling Fluid Equip. could offer you some popular mud gate valves, these valves are designed in accordance with API 6A standard and can full interchangeable with famous brands (DEMCO, OTECO, CAMERON, MUDKING), including:

DEMCO equal style-Model DM

OTECO equal style-Model 72

CAMERAN equal style: Model FC

BETTER Mud Gate Valve is equivalent to DEMCO model DM series, which is mainly used for mud, cement, fracturing and water service and are easy to operate and simple to maintain.This series ofmud gate valve is rising stem, solid gate with resilient seals with superior design and precision workmanship to meet the working request.

Specifications:

Designed specifically for abrasive and erosive condition
Gates available: Nickel-plated carbon steel, Monel, Aluminum Bronze or Stainless Steel
Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer
Connection: Flange/Thread/Butt weld/Hammer Union
Pressure ratings up to 5,000 psi in 2", 3", 4", 5" x 4" and 6" x 4" Valve Sizes

Application:

Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, and well treating chemicals

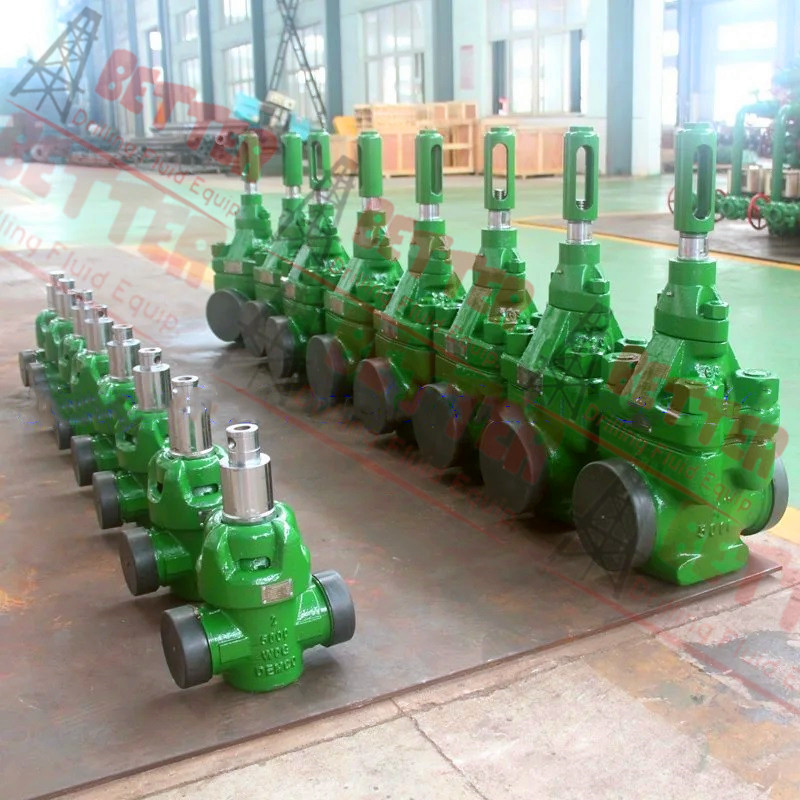

DEMCO STYLE 3” 5000 psi WP MUD GATE VALVE

3 <img alt="3" *5000="" (3000)="" psi="" butt="" weld="" ends.jpg"="" height="204" data-cke-saved-src="file:///C:/Users/%E9%99%88%E6%A5%A0/AppData/Local/Temp/msohtmlclip1/01/clip_image006.jpg" src="file:///C:/Users/%E9%99%88%E6%A5%A0/AppData/Local/Temp/msohtmlclip1/01/clip_image006.jpg" width="185">

3”x5000 (2000, 3000) psi Flanged End 3”x5000 (2000, 3000) psi Threaded End 3”x5000 (2000, 3000) psi Butt Weld End

FLANGE CONNECTION SIZE DRAWING



PARTS LIST WITH MATIAL LIST

NO. DESCRIPTION MATERIAL
1 Lube Fitting Steel
2 Hub Assembly ASTM A536 Ductile Iron
3 Pin, Lock Handle Steel
4 Lock handle C-1213
6 Stem Screw Seal Buna-N
7 Screw Housing C-1018
9 Stem Screw C-1213
10 Secondary Seal Buna-N
11 Retainer C-1213
12 Stem Seal Assembly Buna-N
13 Bonnet ASTM A105
14 Stem 316 SS
15 Gate 316ss
16 Seat Assembly

Inserts: 316 SS

Elastomers: Buna-N

17 Bonnet Seal Buna-N
19 Body A487
20 Bonnet Stud ASTM A193
21 Bonnet Stud Nut ASTM A194
22 Body Stud ASTM A193
23 Body Stud Nut ASTM A194



Standard: API 6A-DD-PSL2-PR
