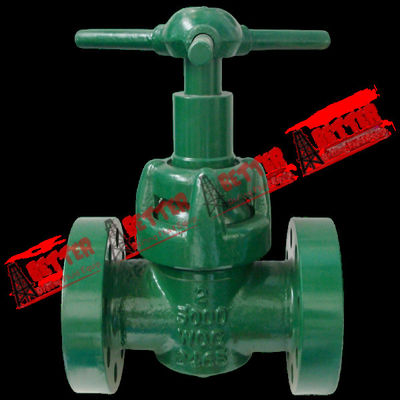

BETTER Demco DM Type Mud Gate Valve Equiv to O'Drill MCM style 3", 4" 2000psi,3000psi &5000psi
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | 4”2000PSI, XXH BW, STD |
| Minimum Order Quantity | 1 SET |
| Price | USD 500.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Or Nonstandard | Standard | Structure | Gate |
|---|---|---|---|
| Pressure | High Pressure | Power | Manual |
| Material | Alloy | Temperature Of Media | Normal Temperature |
| Media | Base |
Product Description
BETTER Mud Gate Valve is equivalent to DEMCO model DM series.Our DEMCO DM style gate valves, the good quality gate valve in the oil and gas drilling market, are specifically engineered for the rigorous requirements of oilfield applications.

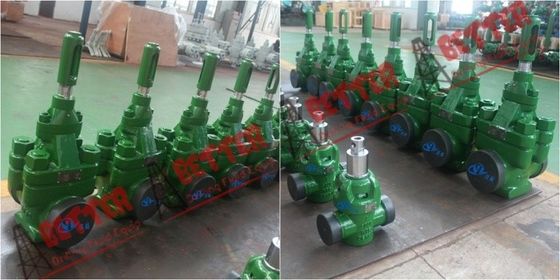

Products show
Specifications
| CONNECTION TYPE | DIMENSION | 3” FULL PORT | ||
| 2000 WP | 3000 WP | 5000 WP | ||
| Full Port Threaded |
Height-557mm Width-279mm |
J001045 | J001046/M2046 | J001047/M2047 |
| Weld | J001054 | J001055/M2055 | J001056/M2056 | |
| Grooved | J011922 | - | - | |
| Flanged (RTJ) |
Height-557mm Width-397mm |
J001036 | J001037/M2037 | J001038/M2038 |
| Flange O.D. | 210mm | 241mm | 267mm | |
| Flange Bolts-Size | 8 – 3/4” | 8 – 7/8” | 8 – 1 1/8” | |
| Ring Number RTJ | R-31 | R-31 | R-35 | |
| CONNECTION TYPE | DIMENSION | 4” FULL PORT | DIMENSION | 4” FULL PORT | |
| 2000 WP | 3000 WP | 5000 WP | |||
| Full Port Threaded |
Height-656mm Width-330mm |
J001048 | J001049/M2049 |
Height-740mm Width-330mm |
J007420/M8420 |
| Weld | J001057 | J001058/M2058 | J007421 | ||
| Flanged (RTJ) |
Height-656mm Width-416mm |
J001039 | J001040/M2040 |
Height-740mm Width-457mm |
M27263 |
| Flange O.D. | 274mm | 292mm | 311mm | ||
| Flange Bolts-Size | 8 – 7/8” | 8 – 1 1/8” | 8 – 1 1/4” | ||
| Ring Number RTJ | R-37 | R-37 | R-39 | ||
Our valves also can full interchangeable with famous brand O’DrillMCM.
| 2” | 3” | 4” | ||||
| 3000psi | 5000psi | 3000psi | 5000psi | 3000psi | 5000psi | |
| Minor Repair kit | DGVRK230-102 | DGVRK250-102 | DGVRK330-102 | DGVRK350-102 | DGVRK430-102 | DGVRK450-102 |
| Major Repair kit | DGVRK230-101 | DGVRK250-101 | DGVRK330-101 | DGVRK350-101 | DGVRK430-101 | DGVRK450-101 |
We also produce DEMCO DM gate valve parts, major repair kit and minor repair kit, such as STEM SCREW, STEM SCREW SEAL, STEM, SECONDARY SEAL, STEM SEAL ASSEMBLY, BONNET SEAL, GATE, SEAT ASSEMBLY and so on for 2”,3” 4” and 4”x 5” at 2000psi,3000psi, 5000psi
|
|
|||||
| REF | Description size | WT | 3’’ 3000 wp | 3” 5000wp | 4” 5000wp |
| 1 |
LUBE FITTING Steel |
.1# | 5195 | 5195 | 5195 |
| 2 |
HUB ASSEMBLY Steel |
10# | 14687 | 14688 | 14689 |
| 4 |
LOCK HANDLE Steel |
1# | 1892 | 1892 | 1897 |
| 6 |
STEM SCREW Steel |
1# | 1914-003 | 1914-003 | 1915 |
| 7 |
STEM SCREW SEAL • Buna N |
1# | 5530-226 | 5530-226 | 5530-227 |
| 8 |
SCREW HOUSING Steel |
6# | 1852 | 1852 | 1958 |
| 9 |
STEM • 303 SS 316 SS |
1# |
1932 -002 1932 -008 |
1932 -002 1932 -008 |
1933 -002 1933 -008 |
| 10 |
SECONDARY SEAL • Buna N |
1# | 5530 -212 | 5530-212 | 5530-214 |
| 11 |
RETAINER • Steel |
1# | 1941 | 1941 | 1942 |
| 12 |
STEM SEAL ASSEMBLY (Includes Bronze Bushing) • Buna N V1ton |
2# |
1950 -001 1950-006 |
1950-001 1950-006 |
1951-001 1951-006 |
| 16 |
BONNET A148 Steel -Uncoated |
40# | 1976-030 | 1980-030 | 1977-030 |
| 18 |
BONNET SEAL : Buna Viton |
1# |
5530-433 5531-433 |
5530-433 5531-433 |
5530-439 5531-439 |
| 19 |
GATE : Steel, Nickel Plated 316 SS |
1# 9# |
1886 -002 1886 - 008 |
1886 -002 1886 -008 |
1926 -002 1926 - 008 |
| 20 |
BODY, UNCOATED Steel SCREWED-APILP-FULL PORT WELD-SCH. 80 -SCH. XXH -SCH. 160 FLANGED - RT J WELD-SCH. 80 -SCH. XXH -SCH. 160 |
71#
80#
146#
80# |
1285-030
1767-13 1767-230 1767-530 1455-130 1282-130 1282-230 1282-530 |
1271 -030
1266-130 1266-230 1266-530 1511-230 1267-130 1267-230 1267-530 |
1855-030
1014-130 1014-230 1014-530 1451-130 1009-130 1009-230 1009-530 |
| 21 |
SEAT Steel • -Buna N -Viton 316 ss -Buna N -Viton |
4# 8#
4# 8# |
1878-021 1878-022
1878-081 1878-082 |
1878-021 1878-022
1878-081 1878-082
|
2207-021 2207-022
2207-081 2207-082 |
| 22 |
PIN, LOCK HANDLE Steel |
1# | 55420-18732 |
5 5420-18732 |
5420-18732 |
| 23 | BONNET STUD (2 REQUIRED) A193 B7 Steel | 1# |
2066 |
2066 |
2072 |
| 24 | BODY STUD NUT (2 REQUIRED) Carbon Steel A192 2H | 6# |
53251-034 |
53251-034 |
53251-036 |
| 25 | BODY STUD (4 REQUIRED) A193 B7 Steel | 2# | 22074 |
32076 |
22075 |
| 26 | BODY STUD NUT (4 REQUIRED) Carbon Steel A192 2H | 5# |
53251-038 |
53251-144 |
53251-042 |
Related Products
Designed for dependable, heavy-duty performance in abrasive service conditions, DEMCO DM gate valves are commonly selected for a number of oilfield applications, including:
- Drilling standpipe manifold
- Pump manifold block valves
- High-pressure mud mixing lines
- High-pressure drilling system block valves
