| Place of Origin: | China |
| Brand Name: | BETTER |
| Certification: | API 7K, 6A, 8C, ISO |
| Model Number: | Mission Magnum |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD250.00 |
| Packaging Details: | Carton, Plywood Case |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, West Union |
| Supply Ability: | Fast Delivery, Plenty in Stock |
| Minimum Order Quantity: | 1 PC |
| Material: | Tungsten Face | Backup Packing: | Teflon |
|---|---|---|---|
| Type: | 2.5" |
| ITME | PART NO | CATALOG NO | DESCRIPTION |

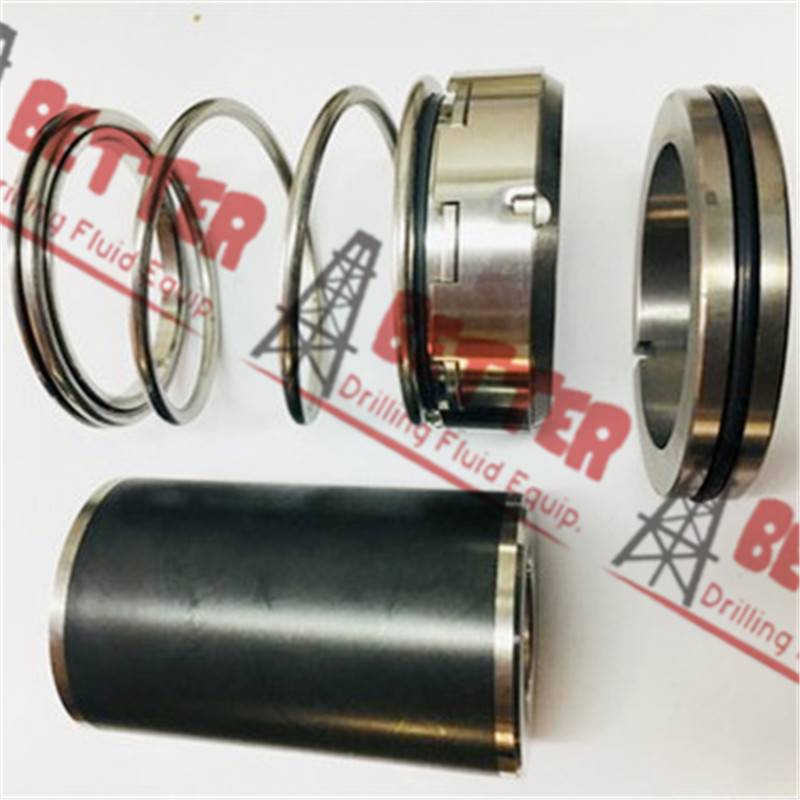

| 5A | 648414308 | 22451-1 | Seal, Mechanical(Tungsten Carbide Faces) |
| 5A | 648414340 | 22451-2 | Seal, Mechanical(Ceramic Carbon Faces) |
| 5A | 648414357 | 22451-3 | Seal, Mechanical(Silicon to Tungsten Faces) |
| 5A | 22451-9A | 22451-9A | Seal, Mechanical(Silicon Carbide Faces) |
| 5A | 661007005 | 25014-04M-B | Packing, Shaft, w/latern ring(Graphite) |
| 5A | 661007008 | 25014-04M-BA | Packing, Shaft, w/latern ring(King) |
| 5A | 661007011 | 250147-04M-D | Packing, Shaft, w/latern ring(Teflon) |
| 5A | 661007006 | 25014-04M-C | Packing, Shaft, w/latern ring(Kevlar) |
| 5A | 648408607 | Packing, Shaft-M.S. Backup(Graphite) | |
| 5A | 648408607 | Ring, Latern |
250 series Centrifugal Pump Parts
BETTER could provide a wide range of open type impeller and semi open impeller, casing, stuffing box, wear pad for all series and brands of heavy duty centrifugal pumps, we have improved the original design with hydraulic hole one impeller position, which have prolonged the impellers' life greatly.
We have ductile iron, hard iron, high chrome iron material for option, if the quantity is ok, we accept to the customized impeller in bronze, stainless steel and other special material not popular used.
All impellers are investment casted or resin-casted with pickling (acid washing) as our power-end parts, which are also available in cast steel in favor of ductile. All other sizes are resin-casted with pickling (acid washing) to ensure smooth surface finish. To ensure quality, we meticulously check threaded holes by fitting their bolts to ensure the threads are clean and clear. All casings are of course pressure tested and all impellers and dynamic balanced. Each casing is properly pressure tested prior to shipping.
It is our standard to deliver all of our impellers in foam molded packing in boxes. If your company has any specific packaging requirements, from branding of castings to box labels, please let us know.
CASING OEM#:
Casing,3×2×13, H19203-01-30A , 641101753, P25D233H, 1769-002, 142523HAS, 052134000
Casing,4×3×13, H19205-01-30A , 641101902, P25D343H, 17680-002, 142534HAS, 052134100
Casing,5×4×14, H19222-01-30A , 641102058, 17681-002, P25D454H, 052134200
Casing,6×5×11, H19122-01-30A , 641101456, 17682-002, 142556HAS-11, 052134300
Casing, 6×5×14, H19123-01-30A, 641101605, 17683-002, 142556HAS-14, P25D564H, 052134400
Casing, 8×6×11, H19763-01-30A, 641102157, 17684-002, P25D681H, 052134500
Casing,8×6×14, H19117-01-30A , 641101308, 17685-002, 142568HAS, P25D684H, 052134600
Casing,10×8×14, H20937-01-30A, 641102322
Housing Gasket: P25HG, 10399-46-1, 17648, 13C-250-HGA, 720700, 052137100
Housing Stud w/nut: P25HSN,17649/5327-034, 15-250-HSN, B16092121000048& 19052121000000, WWHS1S3HA & WWJ11S800, H2507-3 & H3932-61
IMPELLER OEM#
Impeller,3×2×13, H19204-XX-30, 641215603, 17650-XX-112, 1225231XX, P25D233MRxxx, 05213571X, H2521-90-30
Impeller,4×3×13,H19206-XX-30, 641217005, 17651-XX-112 , 1225341XX, P25D343MRxxx, 05213581X,H2522-90-30
Impeller,5×4×14, 19224-XX-30, 641217831, 17652-XX-112, 1225451XX, P25D454MRxxx,05213591X,H2525-AO-30
Impeller,6×5×11, 19121-XX-30, 641211602, 17653-XX-112, 1225561XX, P25D561MRxxx,05213601X,H2524-70-30
Impeller, 6×5×14, 19121-XX-30, 641212105, 17654-XX-112, 1225561XX, P25D564MRxxx,05213621, H2524-AO-30
Impeller, 8×6×11, 19121-XX-30, 641211602, 17655-XX-112, 1225661XX, P25D561MRxxx,05213601X, H2524-70-30
Impeller,8×6×14, 19116-XX-30, 641209903, 17656-XX-112, 1225681XX, P25D584MRxxx,05213631X, H2525-AO-30
Impeller,10×8×14, 21867-XX-30, 641221007
STUFFING BOX OEM#
Stuffing box, mech.seal: 22223-01-30, 641116157, 17658-002, 11-250-SBPG, P25SB/MS, 052136410,721350
Stuffing box, packed: 20614-01-30, 643365042, 17657-002, 11C-250-SBMSS, P25SB/PK, 052144910
Bolt, stuffing box: 3861-117, 3861-117, 648401016, WWG31H187, H3861-117
WEAR PAD OEM#
Casing wear pad, 2501-37,2502-37,2503-37,2504-37,2505-37,2506-37,2507-37
H2501-01-30A, H2502-01-30A, H2503-01-30A, H2504-01-30A,H2505-01-30A,H2506-01-30A,H2507-01-30A
Please don't hesitate to contact our sales if you are interested in any of our products.
