Place of Origin: | China |
Brand Name: | BETTER |
Certification: | API 7K |
Model Number: | Triplex Mud Pump |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | USD220-300 per piece |
Packaging Details: | Carton, Plywood Case |
Delivery Time: | 10-15 days |
Payment Terms: | T/T, West Union |
Supply Ability: | Fast Delivery, Plenty in Stock |
Material: | Forging Alloy Steel Outer Shell W/High Chrome Iron Inner Sleeve | OEM: | 100% Interchangeable With Polular Pump |
---|---|---|---|
Performance: | Long Service Life | Advantage: | Competitive Price |

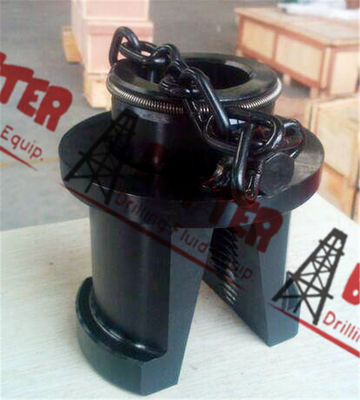

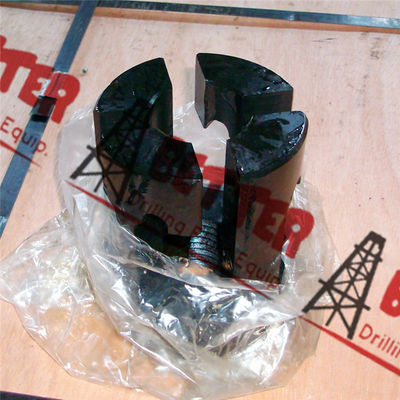

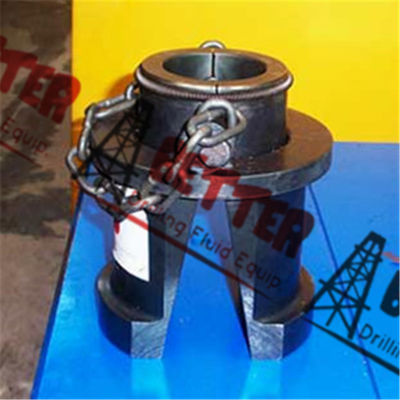

HYDRAULIC SEAT PULLER AND PULLER HEAD
Mission style and Southwest Style

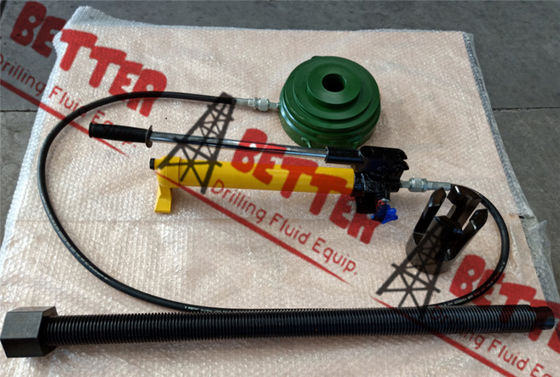

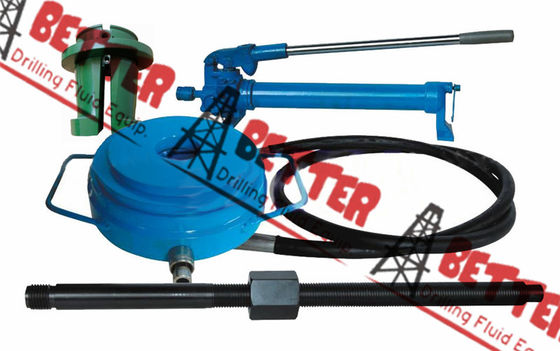

Valve seat extruder also called "Valve Seat Puller" is a service tool, consisting of hydraulic pump assy., pressure gauge, puller head, hose coupling assy., stem, jack, wing nut, hex nut; which is used in the drilling sites for pulling the installed valve seats from mud pump fluid end module. During the process of replacing the valves seat and maintaining the mud pumps, this tool will be more effective to finish the maintained work with fewer manpower and shorter time. It is suitable to API#4, API#5, API#6, API#7 of 3-WEB, 4-WEB, FULL OPEN seats of EMSCO/BOMCO F-500, F-800, F-1000, F1300, F1600, FA-1300/1600, FB-1300/1600, OPI-700HDL, P, GARDNER DENVER PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, IDECO T-500, T-800, T-1000, T-1300, T-1600, OILWELL A-560-PT, A-600-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT, NATIONAL 7P50, 8P80,9P100,10P130, 12P160. This hydraulic valve seat puller was developed for two reasons:
A. To eliminate damage to fluid ends caused by removing valve seats with a cutting torch;
B. To reduce the possibility of personal injury.
The puller assembly are passed 25Mpa pressure test, the complete comes with a hose so that the hand operated hydraulic pump can be placed at a safe distance from the mud pump during pulling operations. The hose, puller assembly, and pump are equipped with quick disconnect couplings for easy handling. The pump comes complete with a pressure gauge. The numerically controlled machined and heat treated puller head of high alloy steel offer maximum strength without the stress concentration characteristic of torch burned heads. The components are made from high quality cast steel for impact and wear resistance.
Please don't hesitate to contact our sales if you are interested in any of our products.
Sales Assistant
Att.: Mike Lee
BETTER Drilling Fluid Equipment Industrial Limited
http://www.drillingfluidsolution.com
sales@drillingfluidequip.com
WhatsApp/wechat:18764068509
SEAT PULLER ASSEMBLIES& PULLER HEAD
SIZE PULLER ASSY PULLER HEAD
FULL OPEN 3-WEB 4-WEB G2 TYPE
API 8# M 1060 8402256 - 181235706 M 1087
API 7# M 1060 8401985 MK-7-PH MK-1700-7R 181235300 MK-1700-7 M 1092MK-M1092
API 6# M 1100 8401977 MK-6-PH - 181235052 MK-1700-6 M 1089MK-M1089
API 5# M 1060 181234501 MK-5-PH - 181240508 MK-1700-5 M 1093
